Boards We Make Ourselves

Original DIYKIT boards designed to make wiring, soldering, learning, and electronics practice easier.

Built for makers, classrooms, and workshop benches — with clear documentation, board files, and practical support.

Explore the boards Register interest
2original boards Revision printed on every board Designed by DIYKIT
Why DIYKIT boards exist

Small boards for the problems we kept seeing

Wrong pins, cold joints and lessons that stay on a screen. Each board takes one of those and puts the fix on the bench.

Reduce wiring mistakes

Reference labels, pin names, and learning cues are printed directly where the user is working.

Practise without breaking anything

Practice pads are not connected to anything, so learners can solder, desolder and try again safely.

Make learning physical

A board in your hand teaches differently from a diagram on a screen: practise, check, and see the result on the bench.

Support classrooms and workshops

Designed to be handed out one per seat, with a board page teachers and workshop leaders can work from.

The board family

Our boards

Each board has its own page with its revision, status, specs, files and support information.

REV B
In stock

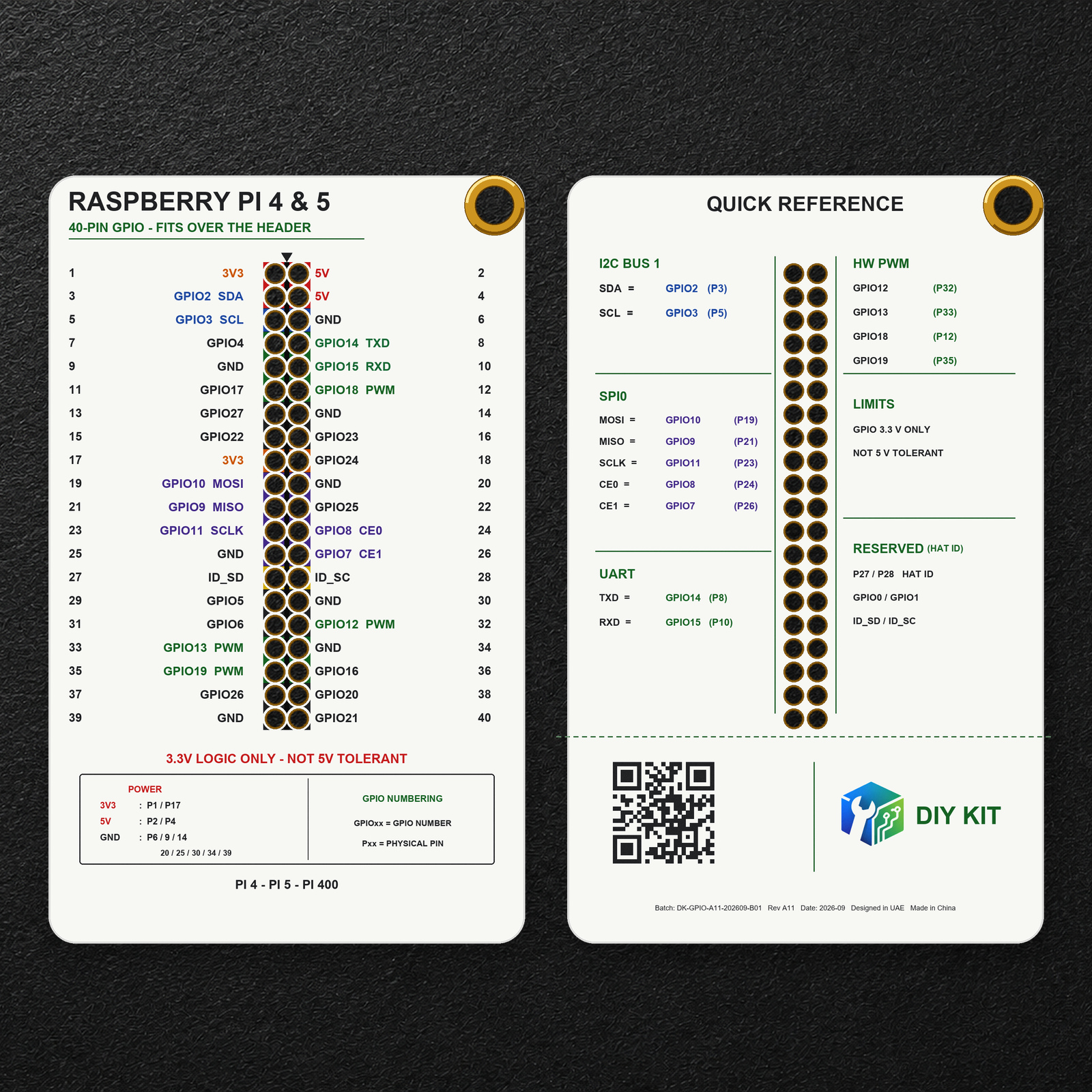

GPIO Card for Raspberry Pi 4 & 5

Slides Onto the 40-Pin Header, 24 x 56 mm

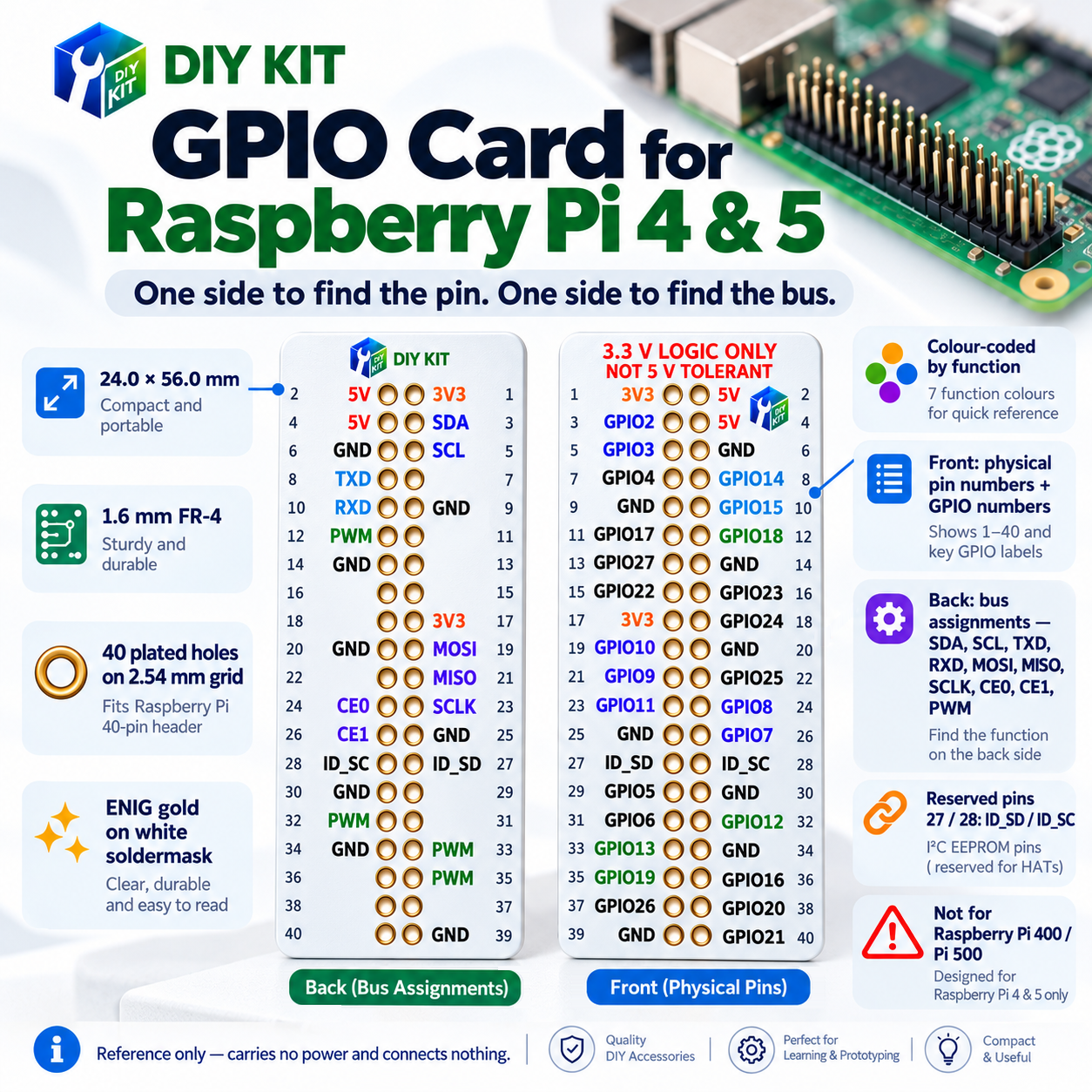

A narrow strip that slides onto the Raspberry Pi 40-pin header and stays there while you wire, so every label sits next to its own pin. Gold-plated, full-colour on both sides.

  • Fits Raspberry Pi 4 and Raspberry Pi 5 — the 40-pin header is in the same place on both
  • Slides onto the 40-pin header — 40 gold-plated holes on the exact 2.54 mm grid
  • Narrow enough to stay on — 24 x 56 mm, so it clears the connectors beside the header
  • Colour coded by function — 5V, 3.3V, GND, I2C, SPI, UART, PWM
  • Both numbering systems — physical pins 1–40 and BCM GPIO numbers
View board Buy · AED 18.00
REV A7
Coming soon Register interest

Solder School

Learn-to-Solder Practice Board

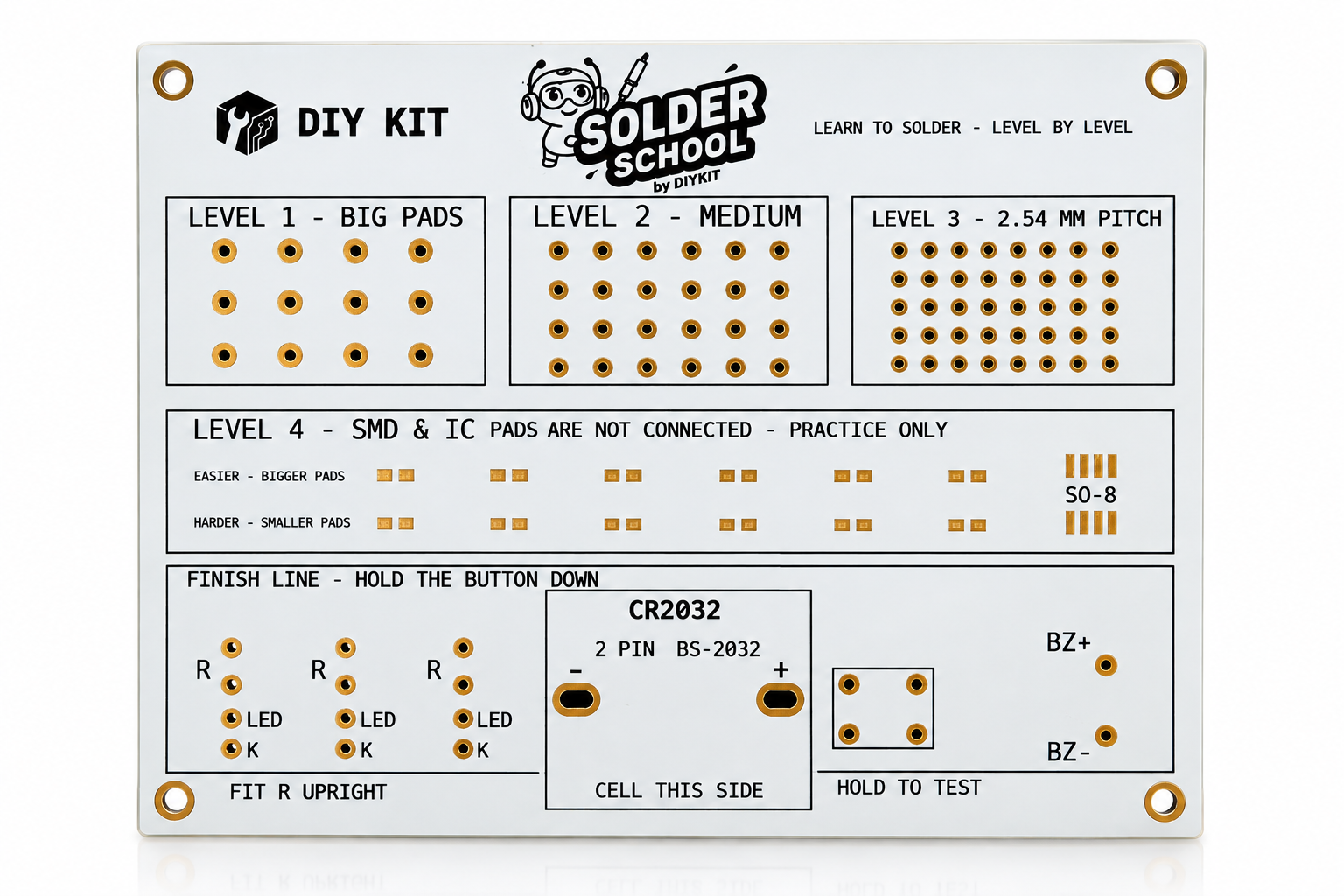

Learn to solder on a board that grades you. Four levels from big pads to SO-8, then build a circuit that lights up when you get it right.

  • 128 solder joints across 4 difficulty levels
  • From 1.00 mm through-hole down to 1.27 mm-pitch SO-8
  • A working test circuit that proves your joints are good
  • Practice pads fully isolated — nothing to damage, solder and desolder freely
  • ENIG gold pads — solder cleanly today or in two years
View board Register interest
How to use these boards

Where they earn their place

The benches and rooms these boards were designed for.

Raspberry Pi wiring bench

Keep the pinout on the header while the jumper wires go in.

GPIO Card for Raspberry Pi 4 & 5

Electronics classroom

One board per student, and a board page the lesson can follow.

GPIO Card for Raspberry Pi 4 & 5Solder School

Maker workshop

Hands-on stations where everyone works at their own pace.

GPIO Card for Raspberry Pi 4 & 5Solder School

Soldering practice station

Practise joints on pads that cannot break anything, then test the result.

Solder School

Surface-mount practice

Move from through-hole to 1206, 0805 and SO-8 pads before a real board.

Solder School

STEM learning pack

Pair a board with a lesson — GPIO and voltage levels, or a first soldered circuit.

GPIO Card for Raspberry Pi 4 & 5Solder School

Product prototyping desk

Check pins quickly while bringing up a Raspberry Pi prototype.

GPIO Card for Raspberry Pi 4 & 5
Board status

What the labels mean

Some DIYKIT boards are ready to order, while others are in prototype or register-interest stage. Each board page shows its revision, status, files, and support information.

Prototype

Designed and made as samples. Still being tested, not orderable.

Coming soon

Design settled, not in the shop yet.

Register interest

Leave your email and we tell you when it can be ordered.

Available

In the DIYKIT shop and orderable. Shown as In stock when stock is on hand.

Archived

An earlier board or revision, kept for reference.

Documentation

What a board page carries

Every board gets a page of its own rather than a product listing. Depending on the board, that includes:

Revision history
Specs
Pinouts
Downloads
Gerber or printable files, where appropriate
FAQs
Register-interest form

Want these boards for a class, lab, or workshop?

Tell us what you are planning and roughly how many. We will come back with availability and classroom batch options — no commitment.

Register interest Ask about classroom batches Contact DIYKIT
