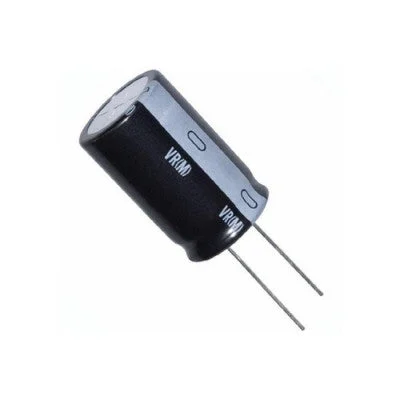

The 10uF 50V electrolytic capacitor is an essential passive component acting as a reliable supporting actor in nearly every electronic circuit. Designed for power rail smoothing, audio stage coupling, reset circuit taming, and long time-constant generation, these radial aluminum electrolytic capacitors deliver consistent performance. Measuring 5x11mm, this compact through-hole component fits seamlessly onto both standard perfboards and professionally manufactured printed circuit boards. The generous 50-volt rating provides a comfortable voltage margin when utilized in 5V, 12V, and 24V electronic projects, helping to prevent voltage breakdown and ensuring extended component lifespan.
The 10uF 50V electrolytic capacitor is an essential passive component acting as a reliable supporting actor in nearly every electronic circuit. Designed for power rail smoothing, audio stage coupling, reset circuit taming, and long time-constant generation, these radial aluminum electrolytic capacitors deliver consistent performance. Measuring 5x11mm, this compact through-hole component fits seamlessly onto both standard perfboards and professionally manufactured printed circuit boards. The generous 50-volt rating provides a comfortable voltage margin when utilized in 5V, 12V, and 24V electronic projects, helping to prevent voltage breakdown and ensuring extended component lifespan.
Aluminum electrolytic capacitors utilize a liquid electrolyte to achieve high capacitance values in a relatively small physical package. This specific model features a 10 microfarad capacitance with a 50 volt direct current maximum working voltage. The radial lead configuration places both connection leads on the same circular end of the cylindrical aluminum can, allowing for perpendicular mounting to the circuit board surface to conserve valuable space. Proper polarity must be observed during installation; the longer lead and the striped marking on the outer sleeve indicate the negative terminal. Reversing polarity can result in electrolyte leakage, rapid pressure buildup, or component failure.
Capacitance: 10 microfarad
Voltage Rating: 50 volts DC
Dimensions: 5mm diameter by 11mm height
Lead Spacing: Standard through-hole radial pitch
Construction: Aluminum electrolytic
Tolerance: Standard industry tolerance applies
Temperature Range: Standard commercial temperature range
These versatile capacitors are widely used in power supply circuits for filtering out high-frequency noise and smoothing rectified alternating current ripples. In audio electronics, they serve effectively for AC coupling and DC blocking between amplifier stages, allowing audio signals to pass while blocking direct current biases. They are also frequently employed in microcontroller reset circuits, timing networks requiring longer RC time constants, and general decoupling applications near integrated circuit power pins to stabilize local supply voltages.
When designing your circuit layout or populating your printed circuit board, ensure adequate clearance around the 5x11mm can. Always verify the orientation of the capacitor before soldering, aligning the negative indicator stripe with the designated cathode pad on your PCB footprint. Avoid exposing these components to excessive heat during soldering to prevent damage to the internal sealing bung and electrolyte solution. Store unused capacitors in a cool, dry environment to maintain optimal performance characteristics over time.
100 x 10uF 50V Radial Electrolytic Capacitors (5x11mm)
