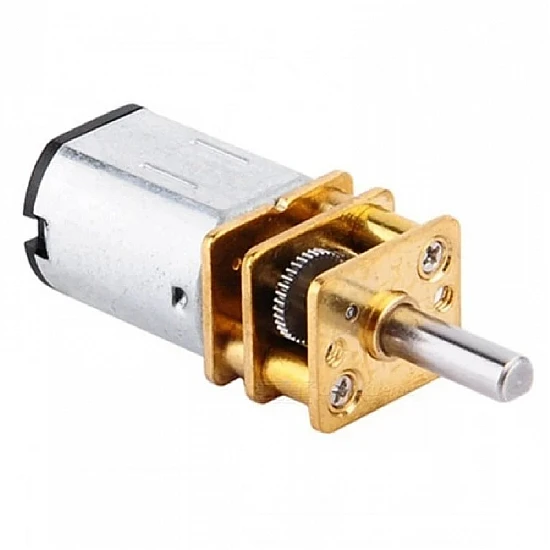

12GA-N20 Miniature DC Metal Gear Motor 12V High-Speed 2000RPM Micro Gearmotor for Robotics, RC Projects, DIY Mechanisms, Prototypes, Compact Drives (DIY-198)

Overview

The 12GA-N20 miniature DC metal gear motor is a compact micro gearmotor designed for projects that need high rotational speed in a small footprint. This model is specified for 12V operation and a nominal speed of 2000RPM, making it well-suited for lightweight drive systems, fast-moving linkages, small rollers, and compact robotics where space is limited. The integrated metal gearbox improves mechanical robustness and wear resistance compared with plastic gearboxes, especially in applications with frequent starts/stops or intermittent shock loads.

Technical Details

This is a brushed DC motor coupled to a reduction gearbox (N20 form factor) with a metal gear train. As a brushed DC motor, it is controlled by applying DC voltage across the two terminals; reversing polarity reverses rotation direction. Speed is typically controlled using PWM (pulse-width modulation) through a suitable motor driver rather than directly from a microcontroller pin. Because load conditions strongly affect current draw and speed, the actual RPM under load will vary; 2000RPM is the provided reference value and is typically measured at nominal voltage under a defined load condition (check datasheet or seller test conditions if you need guaranteed performance).

For reliable operation, choose an H-bridge or motor driver that can handle the motor’s stall current with margin. Stall current is not provided here and can vary by motor/gearbox revision, so it’s recommended to measure it in your setup or consult the specific datasheet. If your application involves rapid direction changes, high inertia loads, or frequent braking, driver headroom becomes even more important. Mechanical mounting should support both the motor body and gearbox to reduce stress on the output shaft and to minimize gearbox misalignment.

Specifications

• Motor type: Brushed DC micro gearmotor (N20 class)
• Gearbox: Metal gear train (12GA format as listed)
• Rated voltage: 12V DC (as specified)
• Rated speed: 2000RPM (as specified; actual speed varies with load and supply)
• Control method: 2-wire DC, PWM speed control via external driver recommended
• Direction control: Reverse polarity (or via H-bridge)
• Output shaft: N20-style output (exact shaft diameter/length varies by revision; verify before designing press-fit couplers)
• Electrical characteristics (no-load current, stall current, torque): Not provided; varies by motor batch/revision—check datasheet or measure in-circuit

Applications

• Mini robotics: small drive wheels, belt drives, compact gear trains, micro conveyors
• DIY automation: feeders, dispensers, shutters, sliders, small actuators requiring higher RPM
• RC and hobby builds: lightweight mechanisms, rotating platforms, camera/laser pan modules (with appropriate gearing)
• Prototyping and education: motor control experiments with PWM, H-bridge direction control, speed regulation
• Small tools and mechanisms: rollers, spindles, and compact motion systems where torque demand is moderate

Integration Notes

• Power: Use a stable 12V DC supply with adequate current capability. If using batteries, ensure they can deliver peak current without excessive voltage sag.
• Driver: Use an H-bridge or DC motor driver sized for the motor’s stall current (unknown here). Avoid driving directly from microcontroller GPIO.
• PWM: Typical PWM frequencies from a few kHz to ~20kHz are commonly used; choose based on your driver and noise requirements.
• Protection: Consider adding a fuse or current limit, and a flyback strategy (most H-bridges include this). For single-direction drivers, add a flyback diode across the motor.
• Mechanics: Confirm shaft dimensions and mounting constraints before finalizing couplers, wheels, or brackets; tolerances can vary by revision.

Included Components

1x 12GA-N20 Miniature DC Metal Gear Motor 12V 2000RPM
