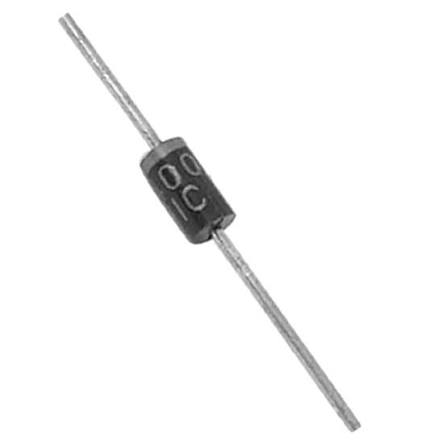

The 1N4001 DO-41 1A 50V Rectifier Diode is an absolute staple in the world of electronics and DIY circuit building. Probably having rectified more hobby power supplies than any other component in history, this classic semiconductor is trusted for its reliability, simplicity, and predictable performance. Designed to permit current flow in only one direction, it acts as a dependable one-way valve for electrical signals. Whether you are building a bench power supply from scratch, safeguarding sensitive components against accidental reverse polarity, or suppressing dangerous voltage spikes generated by inductive loads, the 1N4001 delivers dependable performance. Its standardized DO-41 axial package ensures seamless compatibility with standard solderless breadboards, perfboards, and printed circuit boards, making it an indispensable addition to any electronics enthusiast or professional technician's parts bin.
The 1N4001 DO-41 1A 50V Rectifier Diode is an absolute staple in the world of electronics and DIY circuit building. Probably having rectified more hobby power supplies than any other component in history, this classic semiconductor is trusted for its reliability, simplicity, and predictable performance. Designed to permit current flow in only one direction, it acts as a dependable one-way valve for electrical signals. Whether you are building a bench power supply from scratch, safeguarding sensitive components against accidental reverse polarity, or suppressing dangerous voltage spikes generated by inductive loads, the 1N4001 delivers dependable performance. Its standardized DO-41 axial package ensures seamless compatibility with standard solderless breadboards, perfboards, and printed circuit boards, making it an indispensable addition to any electronics enthusiast or professional technician's parts bin.
At the core of the 1N4001 is a silicon diffusion junction enclosed in a robust plastic body, engineered to withstand standard thermal and electrical operating conditions. It features a maximum average forward rectified current of 1 Ampere, making it well-suited for low-power rectification tasks. With a repetitive peak reverse voltage rating of 50 Volts, it handles standard low-voltage applications comfortably. The device exhibits a low forward voltage drop, which helps minimize power dissipation during normal conduction. Furthermore, its high non-repetitive peak forward surge current capability allows it to absorb sudden inrush currents without sustaining internal junction damage. The axial leads are solder-plated to ensure excellent solderability and corrosion resistance over extended operational lifespans.
The versatility of the 1N4001 makes it suitable for a wide array of electronic applications. It is frequently employed in AC-to-DC power supply circuits acting as half-wave or full-wave bridge rectifiers to convert alternating current into pulsating direct current. In microcontroller projects utilizing Arduino, Raspberry Pi, or custom microcontrollers, these diodes serve as flyback or freewheeling diodes placed in parallel with DC motors, solenoids, and electromagnetic relays to safely dissipate stored magnetic energy and protect sensitive switching transistors. Additionally, they are widely used for reverse polarity protection by being placed in series with power input terminals, shielding downstream components from accidental backwards battery connections.
When designing circuits with the 1N4001, ensure that the circuit operating voltages and peak inverse voltages do not exceed the 50V threshold; for higher voltage duties, look to higher-rated members of the family such as the 1N4004 or 1N4007. When mounting on perfboards or custom PCBs, allow adequate lead length for heat dissipation during soldering, keeping thermal exposure within manufacturer limits. When using the diode for inductive kickback protection across a relay coil, ensure the cathode band points toward the positive supply rail and the anode connects to the switched ground side to achieve proper reverse-bias clamping during normal operation.
