5-Channel Flame Sensor Module for Arduino, 3.3V-5V IR Fire Detection Array Board, 5-Way Directional Digital Outputs D1-D5 (A1-A5), Adjustable Sensitivity for Robotics & DIY
Verified listing

5-Channel Flame Sensor Module for Arduino, 3.3V-5V IR Fire Detection Array Board, 5-Way Directional Digital Outputs D1-D5 (A1-A5), Adjustable Sensitivity for Robotics & DIY

SKU: DIY-004 · Barcode: DIY-004
AED 16.82
In stock · 4 units Only 4 left Ships from Dubai
Find similar
Free delivery Orders over AED 150
Returns policy 7-day returns if unused
DOA guarantee Faulty on arrival? Replaced free
Cash on delivery Pay when it arrives
Tech help Wiring & code support
Buying 10+? See bulk & school pricing

Key features

  • 5-WAY DETECTION: Five IR sensors arranged in an arc for wide-angle flame detection
  • DIGITAL OUTPUTS: Independent outputs D1-D5 (plus analog A1-A5) per channel
  • ADJUSTABLE SENSITIVITY: Onboard potentiometers to tune the trigger threshold
  • 3.3V-5V COMPATIBLE: Works with Arduino, ESP32 and Raspberry Pi projects
More options
More in Sensors Bulk pricing
Free shipping on orders AED 150+. Below that: AED 28.
Key Features
  • 5-WAY DETECTION: Five IR sensors arranged in an arc for wide-angle flame detection
  • DIGITAL OUTPUTS: Independent outputs D1-D5 (plus analog A1-A5) per channel
  • ADJUSTABLE SENSITIVITY: Onboard potentiometers to tune the trigger threshold
  • 3.3V-5V COMPATIBLE: Works with Arduino, ESP32 and Raspberry Pi projects
Full description

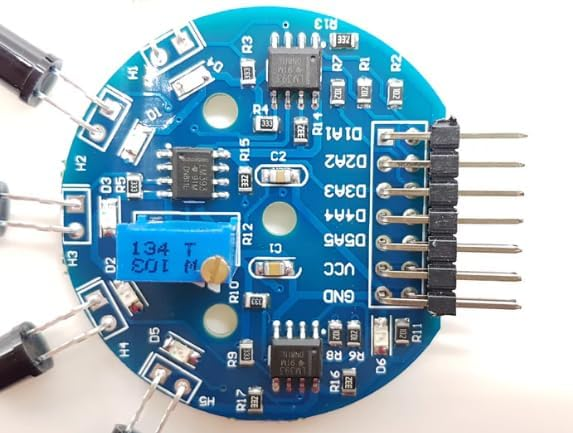

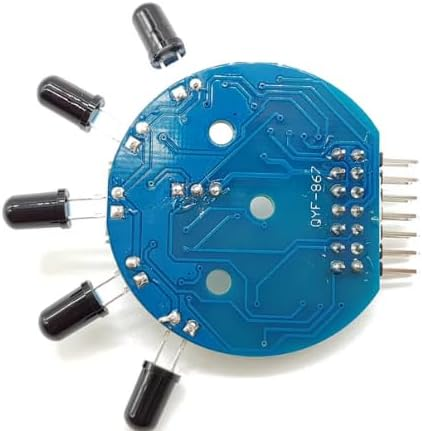

Give your robot a wide field of fire detection with this 5-channel flame sensor array. Five infrared receivers fan out across the board, each tuned to the IR wavelengths emitted by flames, so your controller can tell not just that a flame exists but roughly which direction it is in.

Each channel provides its own digital output with an adjustable threshold, alongside analog outputs for finer intensity readings - ideal for firefighting robot competitions, flame-seeking rovers and safety demos. The board runs from 3.3V to 5V and connects with standard jumper wires.

Tip: flame sensors respond to IR light; keep them shielded from direct sunlight and incandescent bulbs for reliable readings.
