// 01

Description

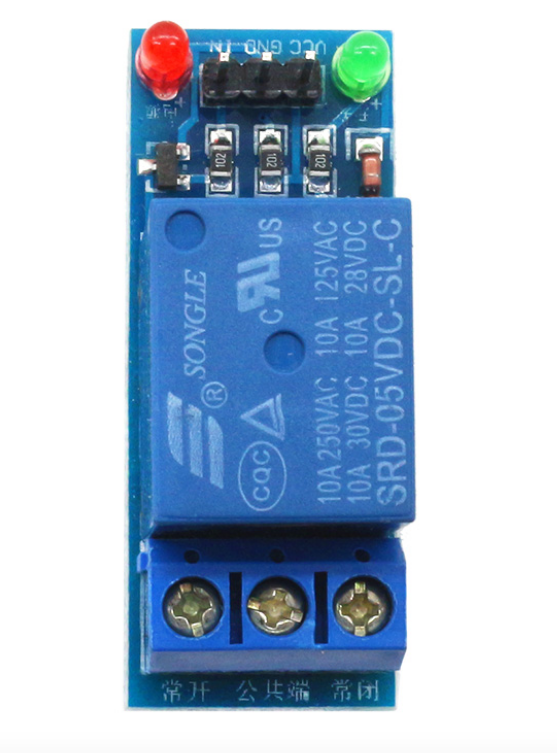

The 5V 1-Channel Relay Module is a reliable switching board that lets microcontrollers safely control higher-voltage or higher-current devices such as lamps, fans, solenoids, pumps, and other appliances. It uses a 5V coil relay rated up to 10A (typical resistive rating) and features optocoupler isolation to help reduce electrical noise and improve protection between your control side and the load side.

This module is designed for easy integration with popular development boards including Arduino, AVR, PIC, ARM, and DSP MCUs. With a low-level trigger input, the relay turns ON when the input pin is driven LOW, which is convenient for many microcontroller setups.

Key Features & Benefits

Low-Voltage Control of High-Power Loads: Control AC or DC loads using a simple GPIO signal
Low-Level Trigger: Relay activates when IN = LOW (logic low)
Optocoupler Isolation: Improves safety/noise immunity and reduces interference to MCU
High Switching Capability: 10A relay for common home/DIY loads (use within rating)
Indicator LED: Visual status for power and relay activation (typical)
Screw Terminals: Secure COM/NO/NC connections for quick wiring

Pinout / Connections (Typical)

Control Side (3-pin header):

Pin	Function
VCC	5V supply
GND	Ground
IN	Trigger input (LOW = ON)

Load Side (Screw terminals):

Terminal	Meaning
COM	Common
NO	Normally Open (connects to COM when relay ON)
NC	Normally Closed (connects to COM when relay OFF)

Typical Specifications

Item	Details
Module Type	1-channel relay module
Coil Voltage	5V DC
Trigger Type	Low-level trigger
Isolation	Optocoupler
Relay Rating (Typical)	10A @ 250VAC / 10A @ 30VDC (resistive)
Use With	Arduino, AVR, PIC, ARM, DSP, MCU boards

Safety note: Mains AC wiring can be dangerous. Use proper insulation, enclosures, and wiring practices, and never exceed relay/load ratings.

Common Applications

Home automation (lights, sockets, fans)
Arduino controlled pumps/solenoids
Switching DC loads with external power supplies
Timers, smart switches, IoT relay control projects
Isolation switching for noisy loads

// 02

Specifications

Channels 1

Coil Voltage 5 V

Trigger Low-level

Contact Rating 10A 250VAC / 10A 30VDC (typ)
