Arduino UNO RFID Learning Kit - Stepper, Servo, Relay, RTC, Keypad & I2C LCD Backorder

Some images are AI-generated illustrations, made to match this kit’s actual contents. Colours and small details may differ — see “In the box” and the product details for the exact parts.

KIT-UNO-RFID-92 DIY KITS DIY KIT

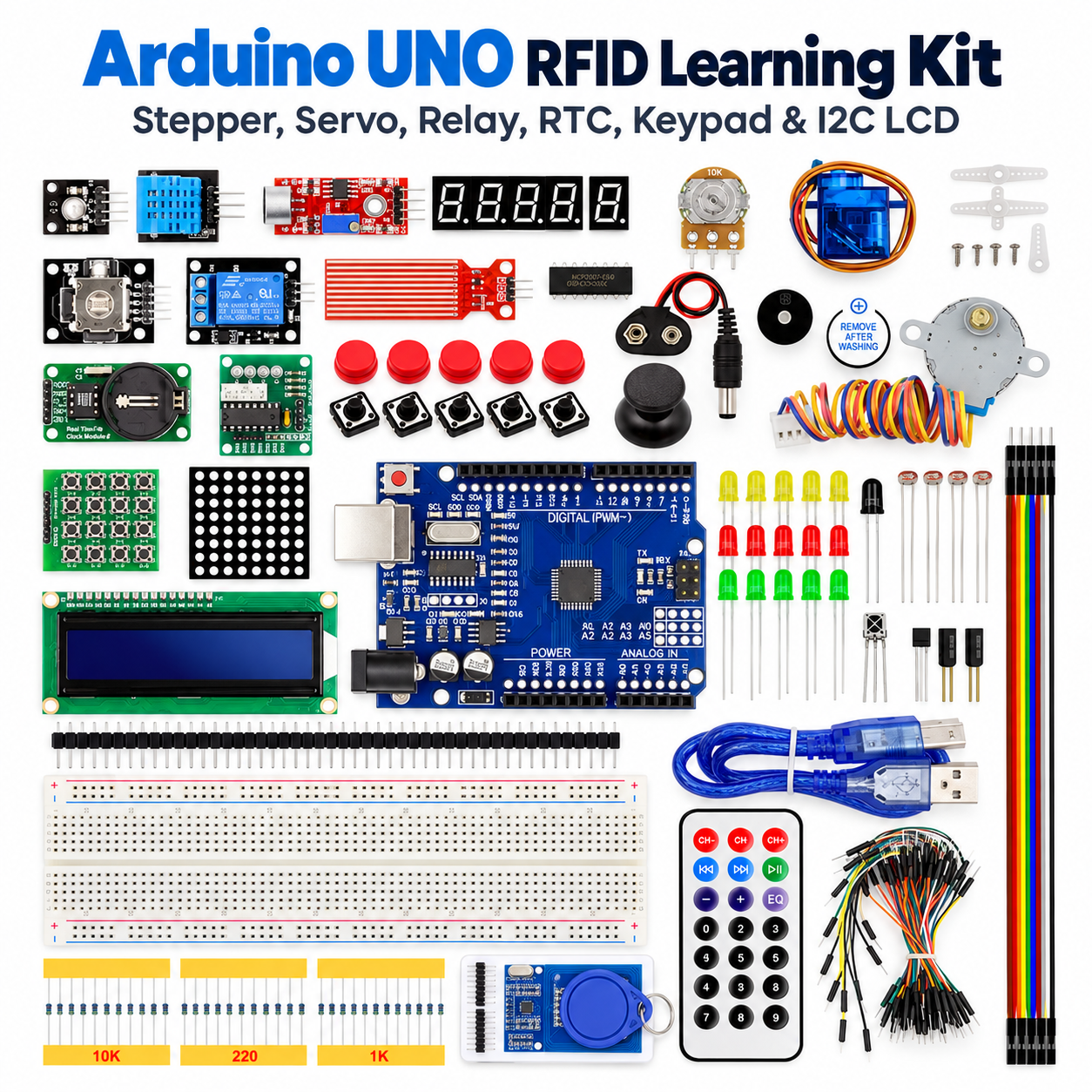

Arduino UNO RFID Learning Kit - Stepper, Servo, Relay, RTC, Keypad & I2C LCD

AED 155.00

Free delivery on this item

Backorder · about 15 days
1
Ask on WhatsApp stock, bulk pricing, will it work with my board · replies Mon–Sat 9am–6pm
  • UAE-wide delivery, 1–2 working days once dispatched · AED 20 · free on orders AED 100+
  • Backorder — ordered in for you, ships when it arrives
  • 7-day returns on unopened items
Secure checkout Card payments handled by Stripe — we never see or store your card number.
Visa & Mastercard accepted Paid online at checkout — no cash needed at the door.
Free delivery on orders AED 100+ AED 20 below that · Shipped from our own UAE stock.
VISA stripe
Details
SKU
KIT-UNO-RFID-92
Category
DIY KITS
Brand / MPN
DIY KIT
Min. order
1 Kit
Barcode
DKU-000437

A complete Arduino UNO learning kit built around RFID. Every part in the box works with the UNO board included, so a beginner can go from blinking an LED to an RFID door lock, a keypad safe or a digital clock without buying anything else.

Read the full description ↓
Request a bulk quote

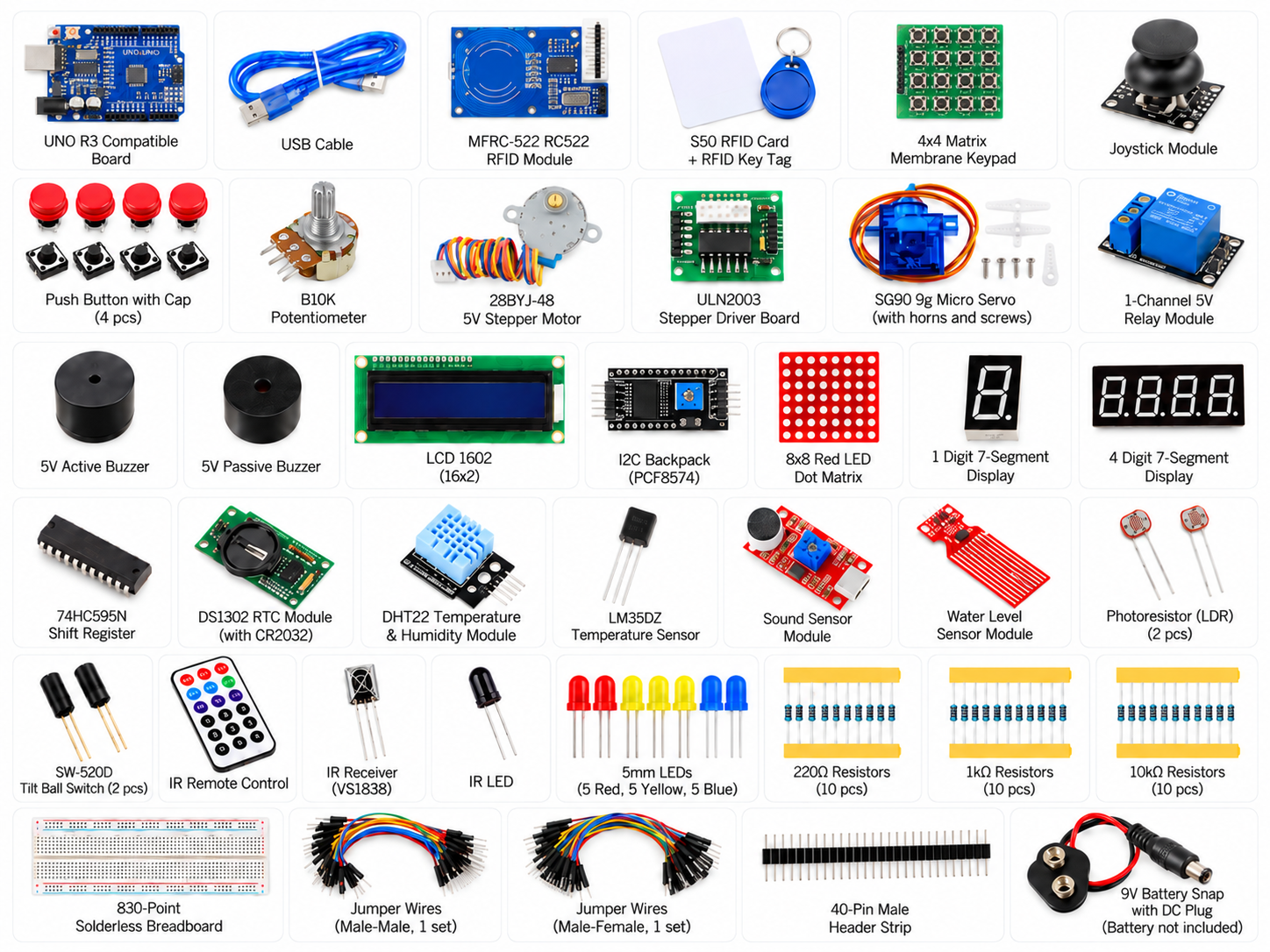

What's in the box KIT-UNO-RFID-92
GroupComponentQty
ControllerUNO R3 compatible board (ATmega328P, SMD, CH340 USB)1
ControllerUSB cable for the UNO1
RFIDMFRC-522 RC522 RFID reader/writer module1
RFIDS50 RFID card + RFID key tag1 + 1
Input4x4 matrix membrane keypad1
InputJoystick module (X, Y + push button)1
InputPush button with cap4
InputB10K potentiometer1
Motion28BYJ-48 5V stepper motor1
MotionULN2003 stepper driver board1
MotionSG90 9g micro servo with horns and screws1
Output1-channel 5V relay module1
OutputActive buzzer1
OutputPassive buzzer1
DisplayLCD 1602 (16x2 characters)1
DisplayI2C backpack for LCD (PCF8574, unsoldered)1
Display8x8 red LED dot matrix1
Display1-digit 7-segment display (5161AS)1
Display4-digit 7-segment display (3461AS-1)1
Display74HC595N shift register1
TimeDS1302 real-time clock module with CR2032 battery1
SensorDHT22 (AM2302) temperature & humidity module1
SensorLM35DZ analogue temperature sensor1
SensorSound sensor module1
SensorWater level sensor1
SensorPhotoresistor (LDR)2
SensorSW-520D tilt ball switch2
InfraredIR remote control1
InfraredIR receiver (VS1838)1
InfraredIR LED1
LEDs5 mm LED: red / yellow / blue5 each
PassivesResistors: 220Ω / 1kΩ / 10kΩ10 each
Prototyping830-point solderless breadboard1
PrototypingJumper wires: male-male + male-female1 set each
Prototyping40-pin male header strip1
Power9V battery snap with DC plug (battery not included)1
// 01

Description

A complete Arduino UNO learning kit built around RFID. Every part in the box works with the UNO board included, so a beginner can go from blinking an LED to an RFID door lock, a keypad safe or a digital clock without buying anything else.

The kit covers the four things most Arduino projects are made of: inputs (RFID, keypad, joystick, buttons, sensors), outputs (stepper, servo, relay, buzzers), displays (LCD, dot matrix, 7-segment) and timing (real-time clock). Learn each one on its own, then combine them into real projects.

What's in the box

GroupComponentQty
ControllerUNO R3 compatible board (ATmega328P, SMD, CH340 USB)1
ControllerUSB cable for the UNO1
RFIDMFRC-522 RC522 RFID reader/writer module1
RFIDS50 RFID card + RFID key tag1 + 1
Input4x4 matrix membrane keypad1
InputJoystick module (X, Y + push button)1
InputPush button with cap4
InputB10K potentiometer1
Motion28BYJ-48 5V stepper motor1
MotionULN2003 stepper driver board1
MotionSG90 9g micro servo with horns and screws1
Output1-channel 5V relay module1
OutputActive buzzer1
OutputPassive buzzer1
DisplayLCD 1602 (16x2 characters)1
DisplayI2C backpack for LCD (PCF8574, unsoldered)1
Display8x8 red LED dot matrix1
Display1-digit 7-segment display (5161AS)1
Display4-digit 7-segment display (3461AS-1)1
Display74HC595N shift register1
TimeDS1302 real-time clock module with CR2032 battery1
SensorDHT22 (AM2302) temperature & humidity module1
SensorLM35DZ analogue temperature sensor1
SensorSound sensor module1
SensorWater level sensor1
SensorPhotoresistor (LDR)2
SensorSW-520D tilt ball switch2
InfraredIR remote control1
InfraredIR receiver (VS1838)1
InfraredIR LED1
LEDs5 mm LED: red / yellow / blue5 each
PassivesResistors: 220Ω / 1kΩ / 10kΩ10 each
Prototyping830-point solderless breadboard1
PrototypingJumper wires: male-male + male-female1 set each
Prototyping40-pin male header strip1
Power9V battery snap with DC plug (battery not included)1

Projects you can build

Every project is built from the parts in the box.

Automation 01

RFID door lock

Scan a card or key tag: the relay switches, the buzzer beeps and the LCD shows access granted or denied.

Automation 02

Keypad PIN lock

Type a 4-digit code on the keypad and the servo turns the latch.

Automation 03

Two-step entry

RFID card first, then a PIN on the keypad, with messages on the LCD.

Automation 04

IR remote control

Use the remote buttons to switch LEDs, move the servo or turn the stepper.

Motion 05

Joystick servo

Move the joystick and the servo follows: pan, sweep and hold.

Motion 06

Stepper speed and direction

Turn the potentiometer to set the stepper motor speed; a button reverses it.

Display 07

Real-time clock

Date and time from the DS1302 on the LCD, kept by its own battery.

Display 08

Countdown timer and stopwatch

Four digits on the 4-digit display, started and stopped with the buttons.

Display 09

Electronic dice

Shake the tilt switch and roll a number on the single-digit display.

Display 10

Scrolling text

Messages and animations scrolling across the 8x8 dot matrix.

Basics 11

LED patterns with the 74HC595

Drive eight LEDs from three pins: chasers, bar graphs and patterns.

Sensing 12

Weather station

DHT22 temperature and humidity on the LCD, updated every few seconds.

Sensing 13

Thermometer duel

Compare the DHT22 and the LM35 temperature sensors side by side.

Sensing 14

Automatic night light

The LDR measures room light and switches an LED on when it gets dark.

Sensing 15

Clap switch

Clap twice and the sound sensor switches the relay on or off.

Sensing 16

Water leak alarm

The water level sensor sounds the buzzer when it gets wet.

Sensing 17

Tilt alarm

Move the box and the tilt switch sets off the alarm.

Basics 18

Melody player

Play tunes and tones on the passive buzzer.

Technical details

  • Board: UNO R3 compatible, ATmega328P, 16 MHz, 14 digital I/O (6 PWM), 6 analogue inputs, 5 V logic
  • USB chip: CH340. Windows and macOS may need the free CH340 driver
  • Programming: free Arduino IDE. Uses standard libraries: MFRC522, LiquidCrystal_I2C, DHT, Servo, Stepper and IRremote
  • Power: USB from a computer or 5 V adapter, or a 9V battery through the snap with DC plug (battery not included)
  • DHT22: −40 to 80 °C (±0.5 °C), 0–100 % humidity (±2 %)
  • Relay: 5 V coil, one channel, with indicator LED

What you need

  • A computer (Windows, macOS or Linux) with the free Arduino IDE
  • A soldering iron and solder for the LCD (see below). Not included
  • Optional: a 9V battery to run projects away from the computer

Good to know

  • Soldering required for the LCD. The I2C backpack comes unsoldered. It has to be soldered onto the LCD 1602 before any of the LCD projects. It's a good first soldering job: 16 joints in a straight row.
  • The DS1302 clock module comes with its CR2032 coin cell fitted, so it keeps time when the board is unplugged.
  • Run the stepper motor from the UNO's 5 V pin for learning. For long runs or heavier loads, power the ULN2003 from a separate 5 V supply.
  • Relay safety: use the relay for low-voltage DC loads only. Do not connect it to mains (230 V) electricity.
  • Contains small parts. Recommended for ages 12 and up; younger learners with adult supervision.
