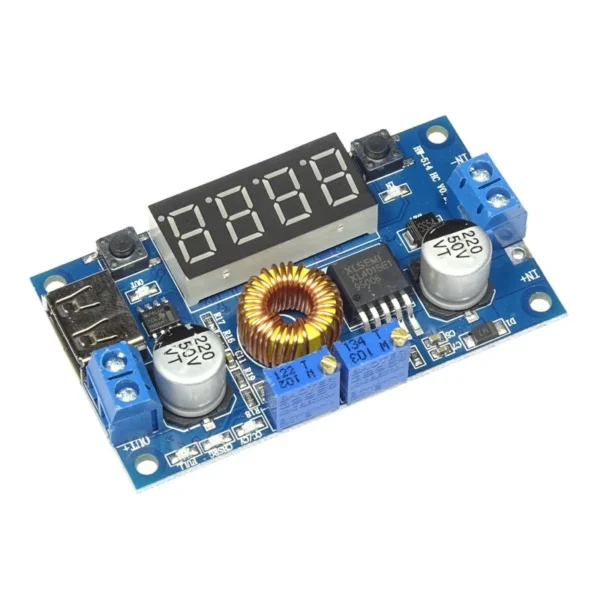

The XL4015 DC-DC Adjustable Step-Down Module is an essential component for engineers, hobbyists, and DIY electronics enthusiasts requiring a reliable, high-power voltage regulation solution. Designed around the high-frequency XL4015 switching regulator, this step-down (buck) converter efficiently steps down higher DC voltages to a lower, user-adjustable output voltage with minimal thermal loss. Featuring an integrated 3-bit digital LED voltmeter display and dual adjustment potentiometers, this module functions simultaneously as a precision voltage regulator and a constant current source. Whether you are building a custom laboratory bench power supply, driving high-wattage LED arrays, or charging lithium-ion and lead-acid batteries, this module provides the performance, safety, and control necessary for professional and hobbyist applications alike.
The XL4015 DC-DC Adjustable Step-Down Module is an essential component for engineers, hobbyists, and DIY electronics enthusiasts requiring a reliable, high-power voltage regulation solution. Designed around the high-frequency XL4015 switching regulator, this step-down (buck) converter efficiently steps down higher DC voltages to a lower, user-adjustable output voltage with minimal thermal loss. Featuring an integrated 3-bit digital LED voltmeter display and dual adjustment potentiometers, this module functions simultaneously as a precision voltage regulator and a constant current source. Whether you are building a custom laboratory bench power supply, driving high-wattage LED arrays, or charging lithium-ion and lead-acid batteries, this module provides the performance, safety, and control necessary for professional and hobbyist applications alike.

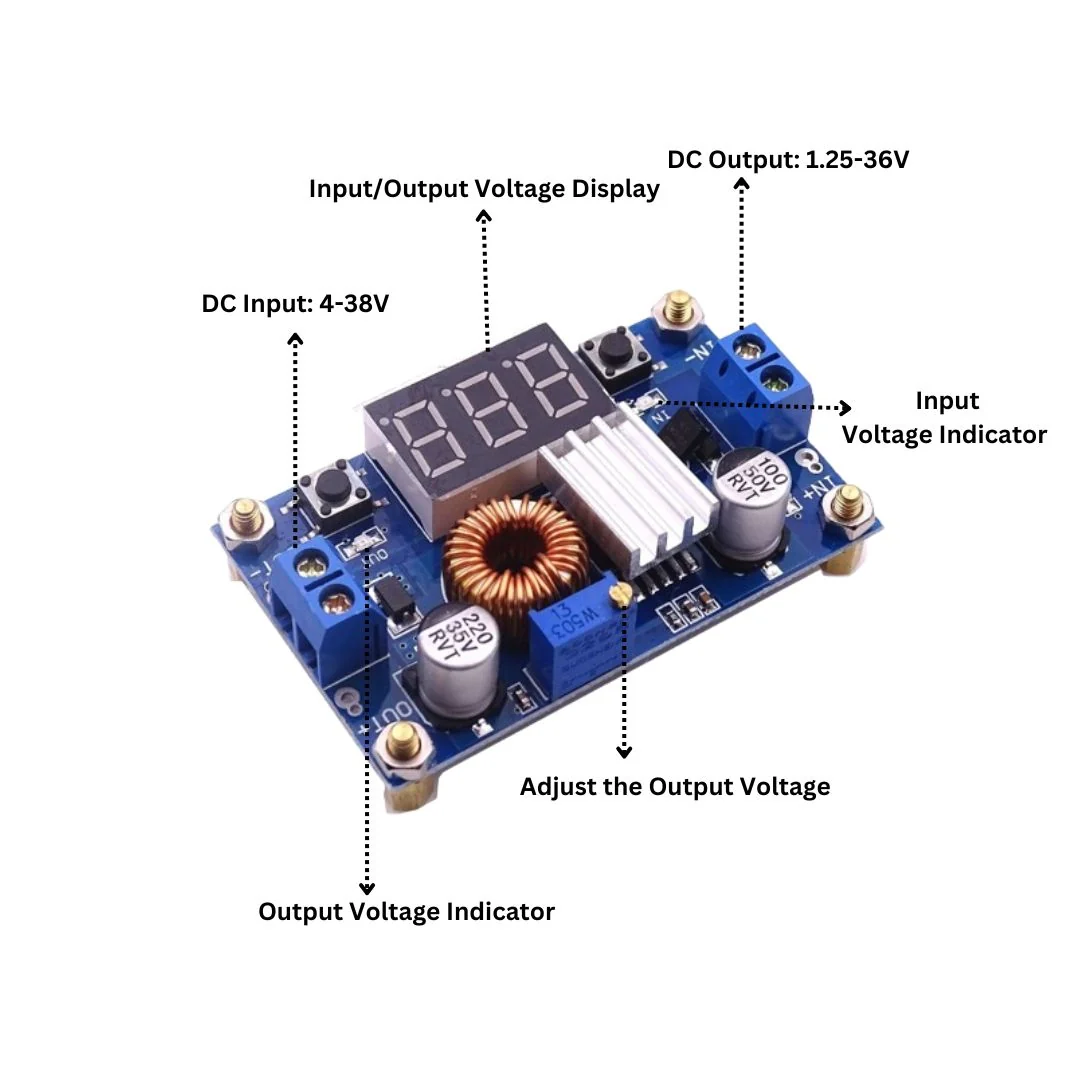

At the core of this module is the XL4015 switching regulator, which operates at a fixed switching frequency of 180kHz. This high frequency allows for the use of smaller external filtering components while maintaining high conversion efficiency, often exceeding 95% depending on input and output differential. The module is equipped with two distinct multi-turn trimmer potentiometers: one for adjusting the output voltage and another for setting the constant current threshold. The onboard 3-bit digital display can be toggled via a tactile push button to display either the input voltage or the output voltage, backed by indicator LEDs that verify the active measurement mode. Terminal blocks are provided for secure, screw-down wiring of both input and output lines, eliminating the need for permanent soldering during prototyping. For applications drawing continuous currents above 3A, it is strongly recommended to attach an appropriately sized heatsink to the power switching IC to maintain optimal operating temperatures and prevent thermal throttling.
Input Voltage Range: 4V to 38V DC. Output Voltage Range: 1.25V to 36V DC continuously adjustable. Output Current: Adjustable up to 5A maximum (recommended for continuous use up to 4.5A with adequate cooling). Output Power: Up to 75W maximum. Conversion Efficiency: Up to 96% (efficiency varies based on input-output voltage differential and load current). Switching Frequency: 180 kHz. Voltmeter Display Resolution: 0.1V. Voltage Measurement Accuracy: Approximately plus or minus 0.05V. Operating Temperature Range:
This adjustable buck converter module is exceptionally versatile, finding heavy utilization across a broad spectrum of electronics projects. It is frequently deployed in the construction of variable DC bench power supplies, allowing users to dial in exact voltages for testing prototype circuits. It serves as an ideal constant-current driver for high-power LED lighting installations, ensuring stable illumination and preventing diode degradation. Additionally, it functions as an efficient multi-chemistry battery charger for lithium-ion, LiFePO4, and lead-acid battery packs, where precise voltage regulation and constant current limiting are critical to prevent overcharging. Other applications include solar power regulation, microcontrollers system power rails, and general-purpose DC power conversion in robotics and automation setups.
When integrating the XL4015 module into your project, ensure that the input voltage source exceeds the desired output voltage by at least 1.5V to maintain proper regulation. Always verify input polarity before applying power, as reverse polarity connection lacks integrated hardware protection and may cause permanent damage to the onboard semiconductor components. When configuring the constant current limit for battery charging or LED driving, short the output terminals temporarily through a digital multimeter set to current measurement mode, adjust the current potentiometer to your target limit, and then connect your load. Ensure adequate airflow or supplementary heatsinking if operating near the maximum 5A current threshold for extended durations.
