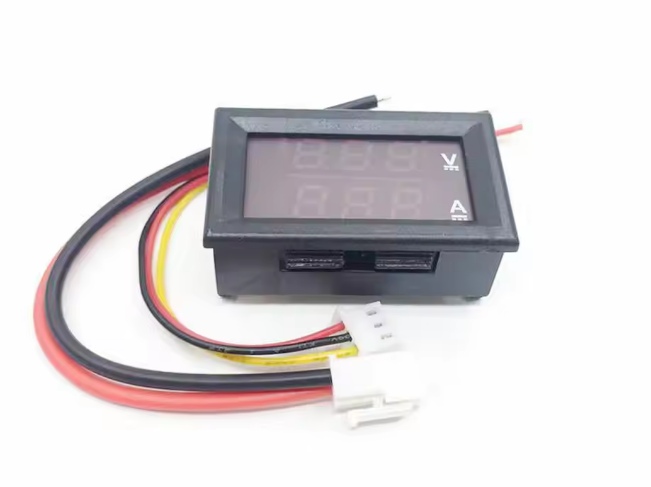

Monitor your DC projects with a compact, easy-to-install dual display meter that shows both voltage and current at the same time. This DC digital voltmeter ammeter panel meter is designed for makers, technicians, and DIY builders who need a quick way to verify power supply output, battery status, and load draw without adding bulky bench equipment.
The meter supports a wide voltage measurement range up to 100V DC and a current measurement range up to 10A DC, making it suitable for common electronics builds such as adjustable DC power supplies, battery charging setups, LED strip drivers, robotics power rails, and small solar/battery systems. The bright 0.28" dual display layout helps you read values at a glance, which is especially useful when tuning a circuit, checking for overload conditions, or validating wiring before powering sensitive modules.
Designed as a panel-mount gauge, it installs neatly into project boxes and control panels. Powering is flexible thanks to the 4.5–30V supply requirement, allowing you to run the display from many common DC sources. Depending on your wiring method (3-wire or 5-wire variants are commonly used for this style), the meter can be powered from the measured supply or from a separate auxiliary supply when measuring higher voltages.
Notes for best results:
- DC only (not for AC measurement).
- Ensure correct polarity and proper current-path wiring for accurate current readings.
- For continuous high-current use near 10A, provide adequate wiring gauge and secure connections to reduce heating and voltage drop.
Specifications:
- Type: DC digital panel voltmeter + ammeter (dual display)
- Voltage Measurement Range: 0–100V DC
- Current Measurement Range: 0–10A DC
- Display Size: 0.28" dual LED display
- Power Supply (Meter Operating Voltage): 4.5–30V DC

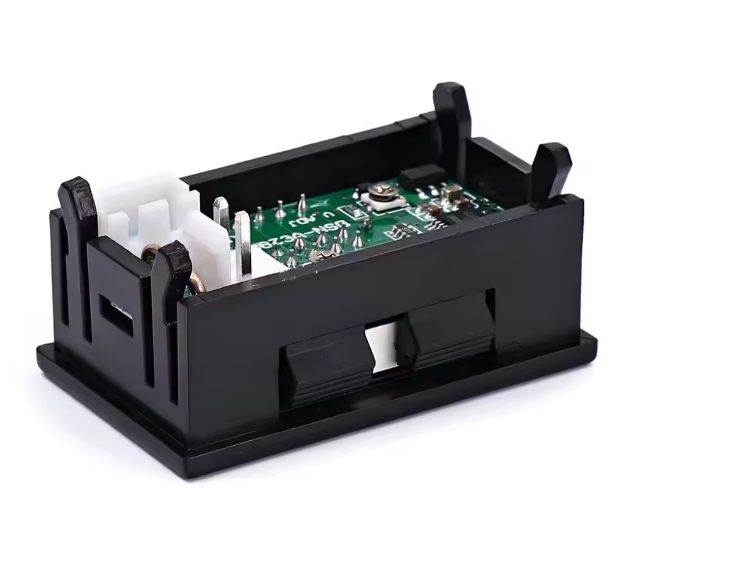

- Mounting: Panel mount, snap-in style housing
- Application: DIY power supplies, battery monitoring, solar DC lines, chargers, robotics, LED drivers
- Color: Black housing, tinted display window
Included Components: 1x DC dual display voltmeter ammeter panel meter
