Description

The DHT11 Digital Temperature & Humidity Sensor Module is a popular, beginner-friendly sensor for measuring ambient temperature and relative humidity in DIY electronics projects. It combines both readings in one compact board and outputs the data digitally using a simple single-wire protocol, making it easy to integrate with Arduino and Raspberry Pi projects using widely available libraries.

This module is perfect for basic environmental monitoring such as room climate tracking, small DIY weather stations, greenhouse monitoring, IoT prototypes, and educational STEM projects. Because it’s a module (not just the bare sensor), it typically includes the needed resistor/pull-up and pins for quicker prototyping.

Key Features & Benefits

Two-in-One Sensor: Temperature + humidity readings from a single module
Digital Output: Stable signal without analog noise and easy microcontroller reading
Simple Wiring: 3-pin interface for quick breadboard and jumper-wire setups
Wide Power Range: Works on 3.3V and 5V power systems
Library Support: Supported by common Arduino and Raspberry Pi libraries
Great for Learning: Ideal for beginners, classrooms, and quick prototypes

Typical Specifications

Item	Typical Value
Sensor	DHT11
Measurements	Temperature + Relative Humidity
Temperature Range	0°C to 50°C
Humidity Range	20% to 90% RH
Accuracy (Typical)	±2°C (temp), ±5% RH (humidity)
Output	Digital single-wire protocol
Supply Voltage	3.3V–5V DC
Update Rate	~1 reading per second

Note: For higher accuracy and wider range, consider DHT22/AM2302. DHT11 is best for basic monitoring and learning projects.

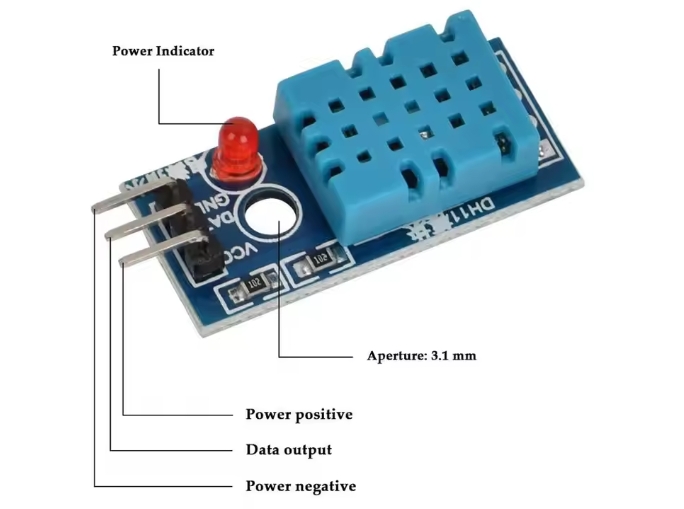

Pinout (Common Module Layout)

Most DHT11 modules use:

Pin	Function
VCC	3.3V–5V power
DATA	Digital output to MCU GPIO
GND	Ground

Common Applications

DIY weather station and indoor climate display
Smart home monitoring (basic temperature/humidity logging)
Greenhouse/terrarium monitoring (basic range)
STEM experiments and electronics education
IoT prototypes with Arduino/ESP boards

// 02

Specifications

Sensor DHT11

Temp Range 0-50 ±2 °C

Humidity Range 20-90 ±5 %RH

Interface Single-wire digital

Supply Voltage 3.3-5 V
