The DIY Digital Clock Kit is an immersive, hands-on electronics project designed to bridge the gap between theoretical circuit design and practical hardware assembly. This comprehensive solder-it-yourself kit provides all the essential components required to build a fully functional, highly accurate digital timepiece from scratch. Unlike standard soldering practice boards that are often discarded after assembly, this kit rewards the builder with a practical, everyday gadget that can be proudly displayed on a desk, nightstand, or workbench. It is an exceptional resource for academic institutions, STEM programs, maker spaces, and individual hobbyists seeking to master the art of through-hole soldering while gaining a deeper understanding of digital electronics.
The DIY Digital Clock Kit is an immersive, hands-on electronics project designed to bridge the gap between theoretical circuit design and practical hardware assembly. This comprehensive solder-it-yourself kit provides all the essential components required to build a fully functional, highly accurate digital timepiece from scratch. Unlike standard soldering practice boards that are often discarded after assembly, this kit rewards the builder with a practical, everyday gadget that can be proudly displayed on a desk, nightstand, or workbench. It is an exceptional resource for academic institutions, STEM programs, maker spaces, and individual hobbyists seeking to master the art of through-hole soldering while gaining a deeper understanding of digital electronics.

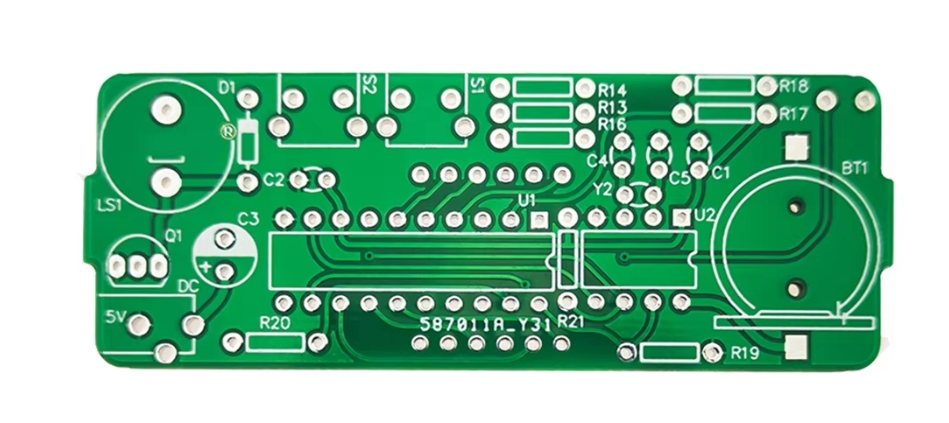

At the heart of the DIY Digital Clock Kit is a robust printed circuit board (PCB) featuring high-quality FR4 material with pre-tinned solder pads and an intuitive, easy-to-read silkscreen legend. The circuit architecture is designed around a dedicated clock driver integrated circuit (IC) or microcontroller (exact chip model varies by module revision; please check datasheet for specific controller details) which manages timekeeping, display multiplexing, and user input processing. The timebase is regulated by a high-precision quartz crystal oscillator, ensuring minimal time drift over extended periods. The visual interface consists of a bright, 4-digit 7-segment LED display, which is driven dynamically to optimize power consumption and minimize component count. The kit utilizes 100% through-hole technology (THT), which means every resistor, capacitor, transistor, diode, and integrated circuit passes through the PCB. This design choice is deliberate, as THT components are significantly easier to handle, position, and solder than surface-mount devices (SMD), making this kit highly accessible to beginners while still offering a satisfying challenge for intermediate makers.
This DIY kit is highly versatile and serves multiple educational and practical purposes. In educational environments, it is an ideal curriculum aid for high school physics, university electronics labs, and vocational training centers to teach component identification, schematic reading, and soldering safety. For hobbyists and makers, it provides a relaxing and rewarding weekend project that sharpens fine motor skills. Once assembled, the clock functions as a reliable desktop timepiece, a classroom demonstration unit, or an eye-catching conversation piece in any workshop or office.
Before beginning assembly, it is highly recommended to inventory all included components against the provided parts list. To ensure a successful build, follow a low-to-high assembly sequence: start by soldering the lowest-profile components such as resistors and diodes, followed by the IC sockets (ensure correct notch orientation), ceramic capacitors, electrolytic capacitors (observe correct polarity), transistors, tactile switches, and finally the 4-digit LED display. Always use a clean soldering iron tip heated to approximately 320C to 350C. Apply heat simultaneously to the component lead and the PCB pad for 2-3 seconds before introducing solder wire. Avoid overheating the pads to prevent delamination. After all components are soldered, carefully trim the excess leads using side cutters close to the solder joint. Inspect all joints under a magnifying glass for solder bridges or cold joints before applying power. Connect a regulated 5V DC power source to the designated input terminals to initialize the clock.
1 x DIY Digital Clock PCB, LED Display, ICs, Resistors, Capacitors, Hardware
