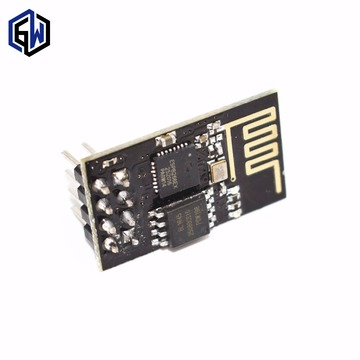

The ESP-01 ESP8266 Serial WiFi Module is a foundational building block for Internet of Things (IoT) development, wireless sensor networks, and smart home automation projects. Designed around the versatile ESP8266 system-on-chip, this ultra-compact breakout board bridges traditional microcontroller projects to the cloud by adding full 2.4GHz WiFi capabilities. Whether you are upgrading an existing Arduino project to report telemetry data over MQTT or building an independent standalone web server, the ESP-01 provides a robust, cost-effective wireless communication layer. Its small footprint and low power consumption make it a favorite among makers, engineers, and electronics hobbyists worldwide.
The ESP-01 ESP8266 Serial WiFi Module is a foundational building block for Internet of Things (IoT) development, wireless sensor networks, and smart home automation projects. Designed around the versatile ESP8266 system-on-chip, this ultra-compact breakout board bridges traditional microcontroller projects to the cloud by adding full 2.4GHz WiFi capabilities. Whether you are upgrading an existing Arduino project to report telemetry data over MQTT or building an independent standalone web server, the ESP-01 provides a robust, cost-effective wireless communication layer. Its small footprint and low power consumption make it a favorite among makers, engineers, and electronics hobbyists worldwide.

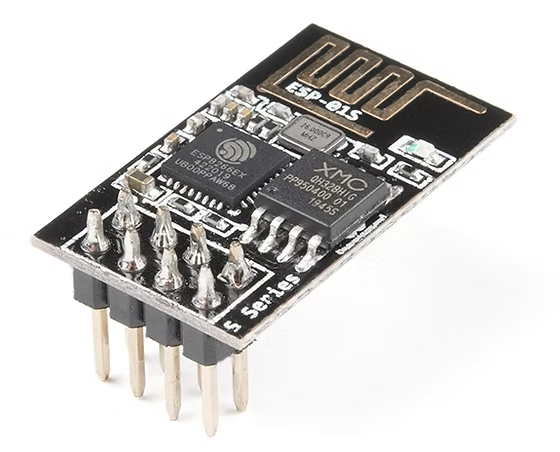

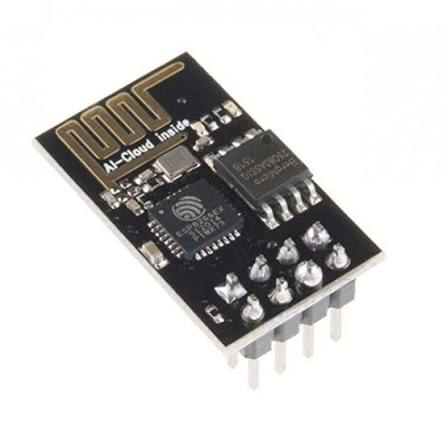

At the core of the ESP-01 module is the ESP8266EX chip, which integrates a Tensilica 32-bit RISC CPU, high-resolution clock oscillators, and power management subsystems. The module includes 1MB of external SPI flash memory, providing ample space for NodeMCU Lua interpreters, AT-command firmware, or custom Arduino IDE sketches. Communication with a host microcontroller occurs via standard Universal Asynchronous Receiver-Transmitter (UART) serial interface utilizing AT commands, or the module can be programmed directly to act as a standalone microcontroller with integrated WiFi. GPIO pins on the dual-row header provide digital I/O, I2C interface support, PWM channels, and an Analog-to-Digital Converter (ADC) input channel, though physical pin availability varies by module revision and GPIO breakout constraints.

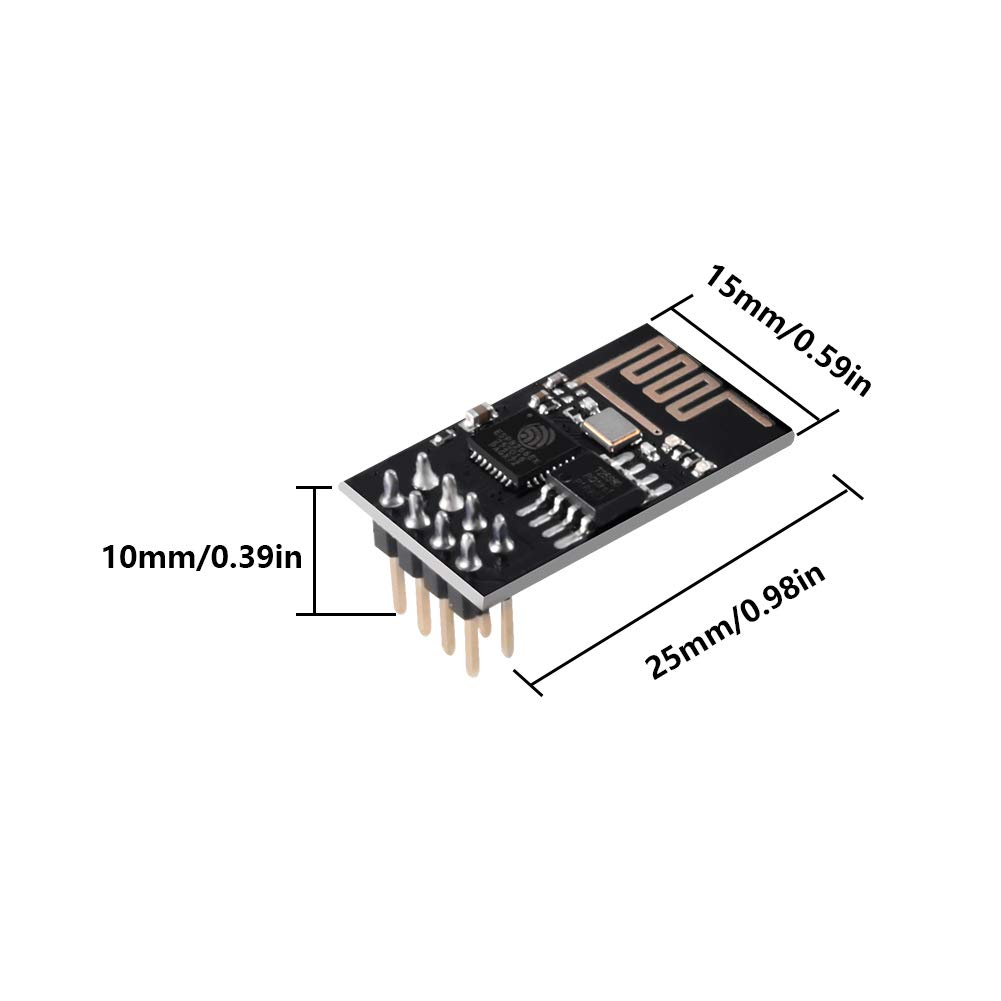

The operating voltage for the ESP-01 typically ranges from 3.0V to 3.6V DC, with 3.3V strictly recommended; applying 5V directly to the VCC or logic pins will permanently damage the chipset. Power consumption varies significantly depending on operational mode, drawing up to 170mA during active RF transmission and dropping to microampere levels during deep sleep states. The wireless radio supports 802.11 b, g, and n protocols with a maximum output power of +19.5dBm in 802.11b mode. The module supports open networks as well as WEP, WPA, and WPA2 encryption standards. Dimensions are exceptionally compact, measuring approximately 24.8mm by 14.3mm excluding the integrated PCB trace antenna.
The ESP-01 is deployed across a vast array of connected electronics projects. Common applications include DIY smart home lighting controllers, wireless temperature and humidity monitors, remote relay switching systems, IP camera controllers, sensor nodes for agriculture, and IoT gateway data aggregators. Because it supports standard network protocols, it can easily interface with cloud platforms such as MQTT brokers, Blynk, AWS IoT, and Home Assistant via HTTP REST APIs.
Integrating the ESP-01 into your workflow requires careful attention to power supply design. Host microcontrollers like the Arduino Uno often lack a 3.3V rail capable of supplying the peak currents demanded during WiFi transmission, necessitating an external 3.3V voltage regulator capable of at least 500mA. Additionally, proper pull-up resistors on CH_PD (EN) and appropriate logic level shifting on the RX line are required for stable operation when interfacing with 5V logic microcontrollers. To flash custom firmware, GPIO0 must be pulled to ground during bootup.
1x ESP-01 ESP8266 Serial WiFi Module
