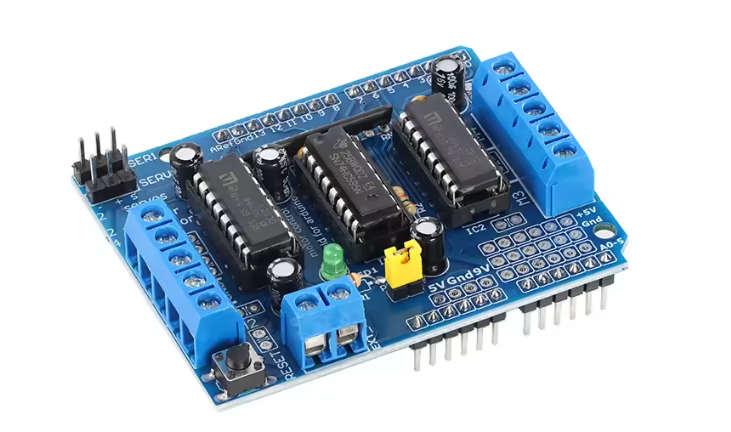

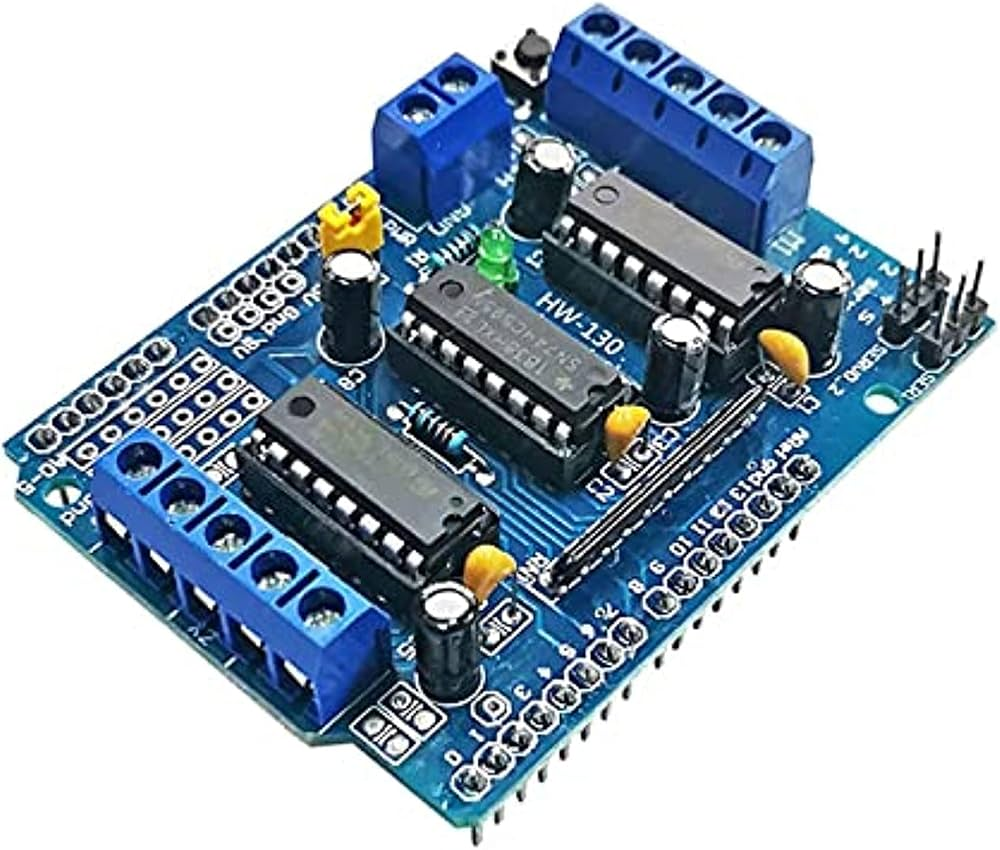

Overview The L293D H-Bridge Motor Driver IC is an industry-standard, high-voltage, high-current four-channel monolithic integrated circuit designed to accept standard DTL or TTL logic levels and drive inductive loads such as relays, solenoids, DC, and bipolar stepping motors.
Read the full description ↓1x L293D H-Bridge Motor Driver IC
The L293D H-Bridge Motor Driver IC is an industry-standard, high-voltage, high-current four-channel monolithic integrated circuit designed to accept standard DTL or TTL logic levels and drive inductive loads such as relays, solenoids, DC, and bipolar stepping motors. Ideal for hobbyists, engineers, and students alike, this versatile driver allows builders to control the speed and rotational direction of two DC motors simultaneously or manage complex stepper motor sequences with ease. Whether you are constructing an obstacle-avoiding robot, an automated conveyor belt system, or a custom CNC machine, the L293D provides a reliable foundation for your motion control requirements. Its robust dual H-bridge design isolates your microcontroller from high-current motor circuits, preventing voltage spikes and electrical noise from damaging sensitive digital components.
Operating on the principle of the H-bridge circuit topology, the L293D enables a DC motor to run in both forward and reverse directions by altering the polarity of the voltage applied across its terminals. The device is split into two identical channels, each capable of handling up to 600mA of continuous current. When dealing with heavy loads or startup surges, the outputs can deliver up to 1.2A in non-repetitive peak currents for a duration of 100 microseconds. The IC features two separate power supply pins: VCC1 is dedicated to the internal logic circuitry, operating standard 5V to 7V levels, while VCC2 supplies power to the output drivers and can accommodate voltages ranging from 4.5V up to 36V, making it adaptable to a wide array of motor specifications. Input signals (ENABLE, IN1, IN2, IN3, IN4) directly dictate the switching states of the corresponding output drivers (OUT1 through OUT4), giving developers complete command over braking and coasting states. Furthermore, integrated clamp diodes are built into the silicon substrate to safely dissipate the high-voltage inductive kickback generated when motor windings are suddenly de-energized, safeguarding the internal output transistors.
The L293D is packaged in a standard 16-pin dual in-line package (DIP) configuration, making it exceptionally breadboard-friendly and suitable for through-hole soldering on custom PCBs. The device operates efficiently across a wide ambient temperature range, typically from 0 degrees Celsius to 70 degrees Celsius for commercial grade variants, though specific thermal limits vary by module revision. Logic high input voltage ranges from 2.3V to VCC1, while logic low inputs are accepted from -0.3V to 1.5V. Total power dissipation limits should be carefully managed, particularly when operating near maximum current thresholds, to ensure the internal junction temperature does not exceed absolute maximum ratings specified in the manufacturer datasheet.
This motor driver IC is heavily utilized in educational and professional electronics development. Common applications include two-wheel and four-wheel drive mobile robotics platforms, miniature pan-tilt camera mounts, automated window blinds, small-scale conveyor belts, and educational physics apparatus. It is exceptionally well-suited for driving small 4-wire bipolar stepper motors commonly found in older disk drives, small printers, and precision positioning devices. By combining multiple L293D units or utilizing PWM (Pulse Width Modulation) signals on the enable pins, users can also implement smooth speed regulation for advanced robotics applications.
When integrating the L293D into your electronic circuit, proper decoupling capacitor placement is strongly recommended. Place a 0.1 microfarad ceramic capacitor across the VCC1 and ground lines, as well as a larger electrolytic capacitor across the VCC2 and ground lines, to filter out high-frequency noise and voltage drops caused by motor startup surges. Ensure that the ground plane is robustly designed to handle return currents, and consider attaching an appropriate clip-on heatsink or utilizing the copper traces of your PCB for thermal dissipation if driving loads continuously near the upper current limits. Always verify your motor current requirements against the 600mA continuous limit to prevent premature thermal shutdown or device failure.
