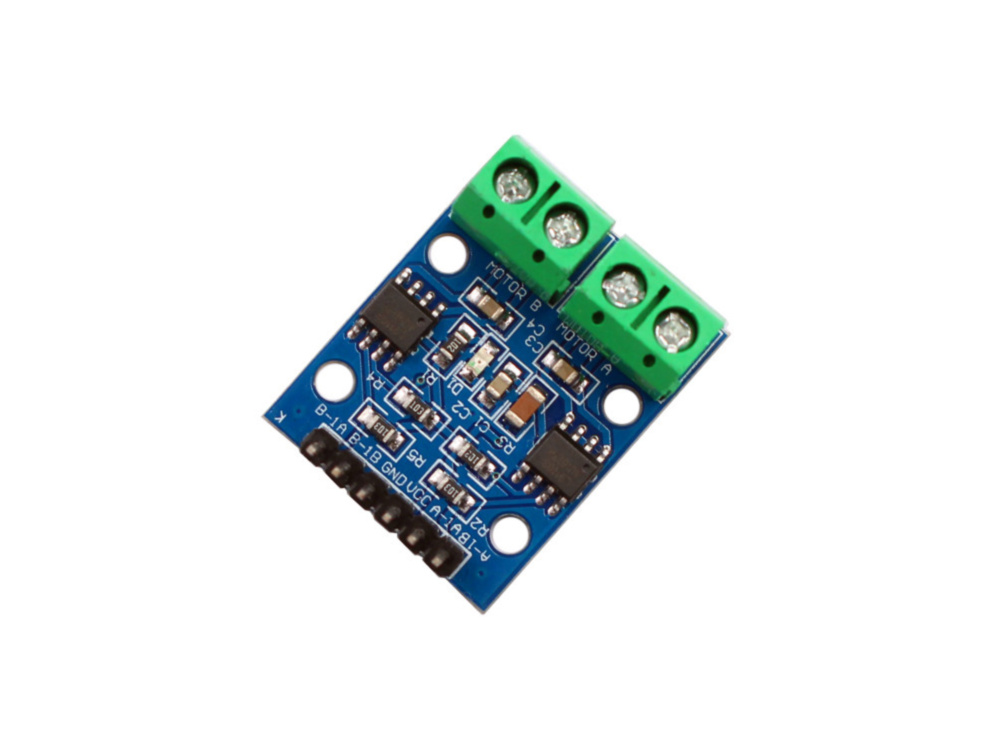

L9110 DC Motor Driver Board - Dual Channel H-Bridge, 2.5V-12V, 800mA per Channel, for Arduino Robotics & DIY DC Motors

The L9110 DC Motor Driver Board is a compact yet highly versatile dual-channel H-bridge driver designed specifically for hobbyists, educators, and engineers working on robotics, automation, and microcontroller-based projects. Whether you are building an obstacle-avoiding robot, a line-following vehicle, or a custom automated mechanism, this module provides the precise control needed to drive small DC motors smoothly and efficiently. Built around the robust L9110 integrated circuit, the driver eliminates the complexity of discrete transistor H-bridge designs, offering a ready-to-use plug-and-play solution that interfaces seamlessly with popular development platforms like Arduino, Raspberry Pi, ESP32, and STM32. Its dual-channel architecture means you can independently control the direction and speed of two separate DC motors, making differential drive mobile robots exceptionally easy to construct and program.

At the core of the module is the L9110 dual H-bridge driver IC, engineered to handle low-voltage logic levels while delivering sufficient power to actuate small inductive loads. The H-bridge configuration allows current to flow in either direction through the motor windings, enabling full forward, reverse, braking, and coasting states. The logic control pins accept standard TTL/CMOS signals, allowing direct connection to digital output pins and PWM (Pulse Width Modulation) pins on your microcontroller. By varying the duty cycle of the PWM signal sent to the input pins, users can dynamically adjust motor RPM without sacrificing torque at lower speeds. The module includes onboard filtering capacitors to smooth out power supply fluctuations and reduce electrical noise generated by the motor commutators, thereby protecting sensitive logic components from voltage sags and spikes. Connections to power, control signals, and motors are facilitated by robust screw terminals and standard 0.1-inch pitch pin headers, giving users the flexibility to use soldered wires or plug-in jumper cables depending on their prototyping setup.

Operating Voltage: 2.5V to 12V DC

Channels: 2 independent motor channels

Continuous Output Current: 800mA per channel

Peak Output Current: 1.5A to 2.0A per channel

Logic Compatibility: 3.3V and 5V microcontrollers

Control Interface: Direct PWM and digital direction pins

Quiescent Current: Low standby current when inactive

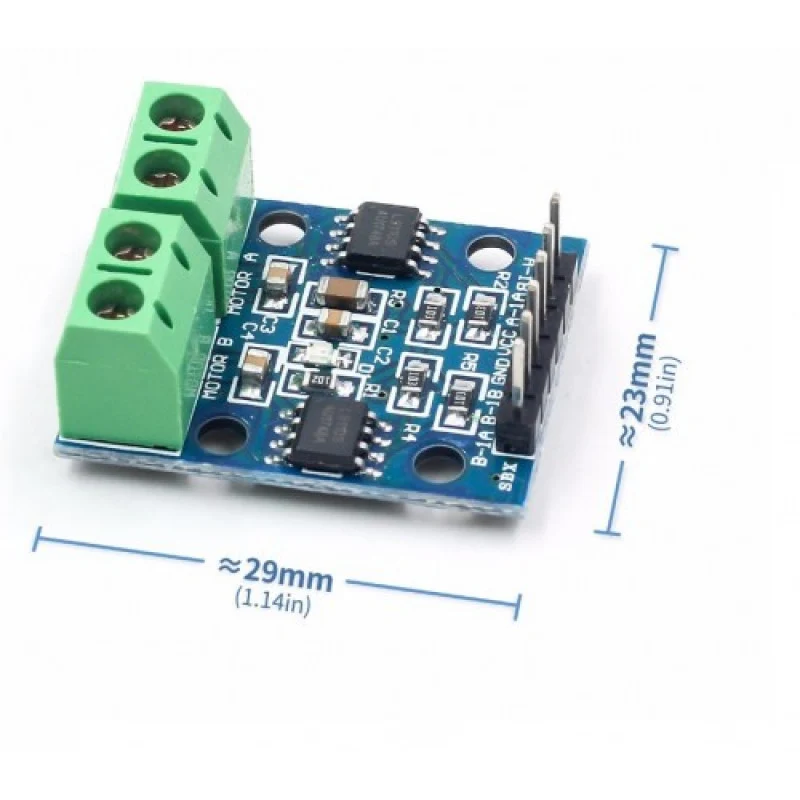

Dimensions: Compact footprint suitable for standard breadboards

Mounting: Integrated mounting holes for secure chassis attachment

The L9110 DC Motor Driver is ideal for a wide array of DIY electronics and automation tasks. Common applications include two-wheel drive and four-wheel drive mobile robotics platforms, miniature conveyor belt systems, automated camera sliders, pan-tilt servo alternatives, smart home motorized blinds, and educational STEM learning kits. Its ability to operate efficiently on lower supply voltages also makes it a preferred choice for battery-powered portable devices where energy conservation is critical.

When integrating the L9110 motor driver into your circuit, ensure that your power supply can source sufficient current for both motors under stall conditions, as motor startup currents can significantly exceed normal running current. While the module can share a power rail with small microcontrollers for basic testing, it is strongly recommended to use a separate power supply or battery pack for the motors to prevent motor-induced electrical noise from resetting your microcontroller. Always verify pin connections between the driver control pins and your microcontroller PWM outputs before applying power. Heat sinking is generally not required for standard loads within the 800mA operational limit, but adequate ventilation should be maintained in enclosed project casings.

1x L9110 DC Motor Driver Board
