The S8050 NPN Transistor is an absolute essential for any electronics workbench, DIY maker space, or educational laboratory. As a staple jelly-bean component, this general-purpose bipolar junction transistor is engineered for a wide variety of low-voltage switching and signal amplification applications. Whether you are driving a small DC motor from a microcontroller general-purpose input output pin, triggering an electromagnetic relay, or constructing classic multi-vibrator oscillator circuits, the S8050 delivers dependable electrical performance. Packaged in a compact and breadboard-friendly TO-92 form factor, these transistors integrate effortlessly into both temporary breadboard prototypes and permanent printed circuit board layouts.
The S8050 NPN Transistor is an absolute essential for any electronics workbench, DIY maker space, or educational laboratory. As a staple jelly-bean component, this general-purpose bipolar junction transistor is engineered for a wide variety of low-voltage switching and signal amplification applications. Whether you are driving a small DC motor from a microcontroller general-purpose input output pin, triggering an electromagnetic relay, or constructing classic multi-vibrator oscillator circuits, the S8050 delivers dependable electrical performance. Packaged in a compact and breadboard-friendly TO-92 form factor, these transistors integrate effortlessly into both temporary breadboard prototypes and permanent printed circuit board layouts.
Operating as a standard NPN silicon transistor, the S8050 controls electron flow from the collector to the emitter based on a smaller current applied to the base terminal. It features a collector-emitter voltage rating of up to 25V and supports a continuous collector current up to 700mA, bridging the gap between delicate micro-controller logic levels and higher-power peripheral devices. The device exhibits a high direct current current gain, ensuring efficient signal amplification with minimal base drive current required. Proper circuit design should incorporate a suitable base resistor when driving loads directly from microcontroller pins to prevent overcurrent conditions.
The transistor is housed in a molded plastic TO-92 package featuring three through-hole leads arranged in a standard emitter-base-collector or collector-base-emitter pinout configuration, which should be verified against the specific manufacturer datasheet prior to installation. It operates reliably across standard ambient temperatures suitable for indoor consumer electronics prototyping. The maximum collector-emitter voltage is rated at 25V, and the maximum continuous collector current is 700mA. Power dissipation characteristics and thermal limits are governed by the standard TO-92 package geometry.
This versatile semiconductor is widely utilized in educational electronics kits, Arduino and Raspberry Pi peripheral driver boards, robotics logic circuits, LED strip controllers, and audio amplifier pre-stage designs. It is frequently employed in H-bridge configurations, sensor interface modules, and automated switching systems where low-voltage digital signals must control higher-current loads.
When integrating the S8050 into your circuit, always verify the pinout orientation using a multimeter diode test mode or the official manufacturer datasheet, as pin assignments can occasionally vary between packaging suppliers. Ensure that an appropriate current-limiting resistor is placed in series with the base pin when interfacing directly with 3.3V or 5V digital logic outputs. For inductive loads such as DC motors or relays, always include a flyback diode across the load terminals to protect the transistor from voltage spikes during switching events.

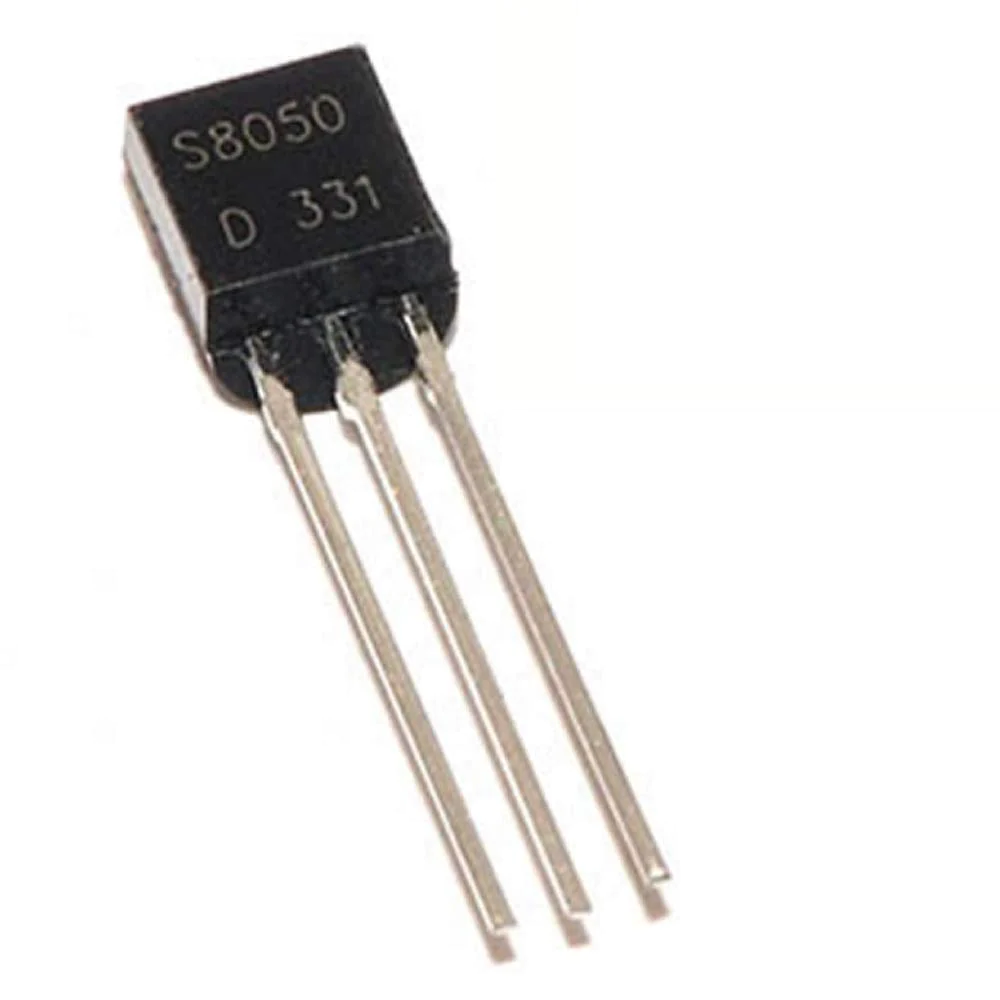

8 x S8050 NPN Transistors in TO-92 Package
