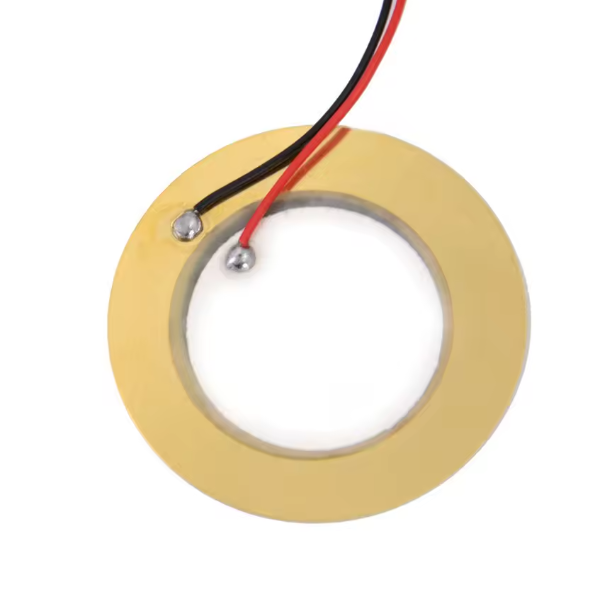

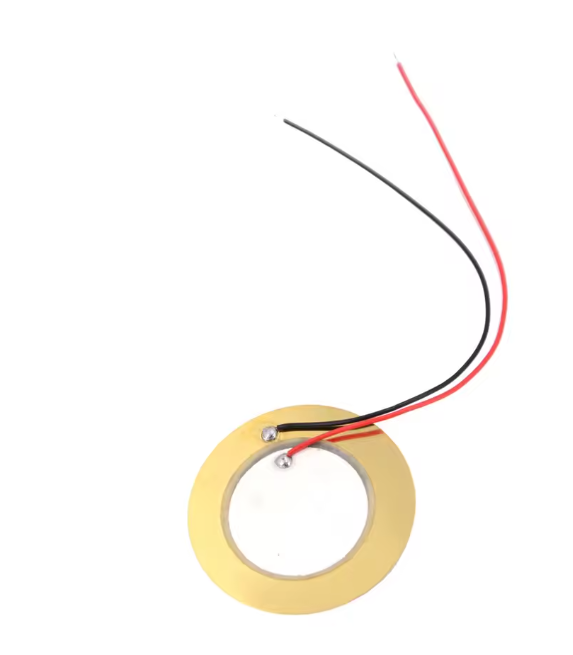

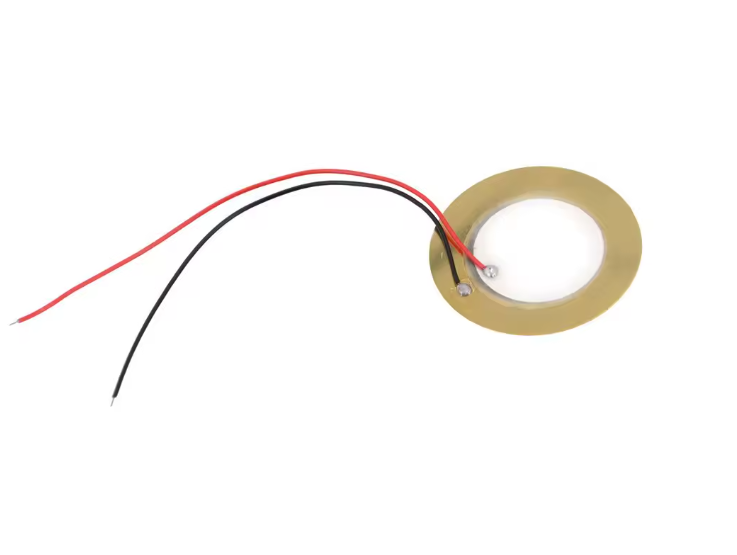

35mm Piezo Ceramic Element Sounder Sensor - Copper Disc Piezoelectric Buzzer with Wire Leads for DIY Drum Triggers and Sound Detection

The 35mm Piezo Ceramic Element Sounder Sensor is a versatile piezoelectric transducer designed for a wide array of audio, sensing, and musical applications. Constructed with a high-grade brass baseplate and a precision ceramic disc, this component converts mechanical vibrations, impacts, and acoustic waves into electrical signals, and vice versa. Whether you are building a custom electronic drum kit, adding contact microphones to acoustic instruments, or designing simple audio alert systems, this piezo disc delivers reliable performance. The inclusion of pre-attached wire leads eliminates the delicate and tedious process of soldering directly to the brass surface, allowing makers and hobbyists to jump straight into prototyping.

Piezoelectric transducers operate on the principle of the direct piezoelectric effect, where mechanical stress applied to the ceramic material generates an electrical charge. When struck or vibrated, the 35mm copper disc flexes microscopically, producing a voltage spike that can be read by microcontrollers like Arduino and Raspberry Pi. Conversely, applying an alternating current voltage across the leads causes the ceramic disc to vibrate mechanically, generating audible sound waves. This dual functionality makes it an exceptional choice for both sensing impacts and generating basic tones. The rigid brass substrate provides mechanical stability and acts as the ground terminal, while the center silver electrode serves as the positive terminal, ensuring straightforward circuit design.

The component features an outer brass plate diameter of 35 millimeters, offering a broad surface area ideal for capturing impacts across drum pads and contact surfaces. The pre-soldered wire leads measure a standard working length to accommodate typical enclosure depths and breadboard layouts, though exact wire gauge and length may vary by module revision. The resonant frequency and impedance characteristics are optimized for audio frequency generation and transient impact detection. Operating parameters, including maximum input voltage for buzzer mode and sensitivity thresholds, depend on external circuitry such as signal conditioning resistors and operational amplifiers. Users should check datasheet references when designing high-precision measurement setups.

This piezo element is exceptionally popular in the DIY music community for crafting DIY electronic drum triggers, snare pads, and cymbals. Beyond percussion, it is widely utilized as a contact microphone for acoustic guitars, violins, and kalimbas to amplify natural resonance. Engineers and students use these elements in knock sensors, vibration detectors, burglar alarm feedback buzzers, and automated impact-sensing robotics. They are also frequently integrated into educational electronics kits to demonstrate energy conversion principles and basic sensor interfacing.

When interfacing the piezo sensor with microcontrollers, it is crucial to protect analog input pins from voltage spikes. Piezo elements can generate surprisingly high voltages when struck forcefully, sometimes exceeding safe microcontroller input limits. Adding a simple parallel resistor (such as 1M ohm) and a Zener diode or small signal diode network across the terminals helps clamp excessive voltages and prevents damage to sensitive digital boards. For acoustic pick-up applications, using a shielded cable or a high-impedance buffer amplifier (op-amp) will significantly reduce ambient noise pickup and improve signal clarity.

1x 35mm Piezo Ceramic Element Sounder Sensor with Wire Leads
