Overview
The QE001 Smart Home IoT STEM Kit is a project-based learning system that lets students build an interactive “smart home” model and program it to respond to real inputs—like RFID access, rain detection, lighting effects, and voice/app commands. Built around an ESP32 controller board, the kit is designed for progressive learning: start with Scratch-style block coding, then move into Arduino-style programming and Python as skills grow. The result is a complete STEAM experience that blends electronics, mechanics, and software into a single classroom- and home-friendly build.
Technical Details
At the core of the kit is an ESP32 development controller (exact module variant may vary by production batch). ESP32 platforms commonly provide integrated 2.4 GHz WiFi and Bluetooth/BLE, making them ideal for IoT demonstrations such as app-based control, remote triggers, and smart automation routines. The kit’s learning path typically introduces:
- Digital I/O concepts (reading switches/sensors, driving LEDs, controlling actuators)
- Analog sensing (where supported by the included sensor modules and ESP32 ADC inputs)
- Event-driven logic (IF/THEN rules, timers, state machines for “home modes”)
- Identification and access control using an RFID reader module (exact frequency/standard depends on included reader revision—confirm on the module label/datasheet)

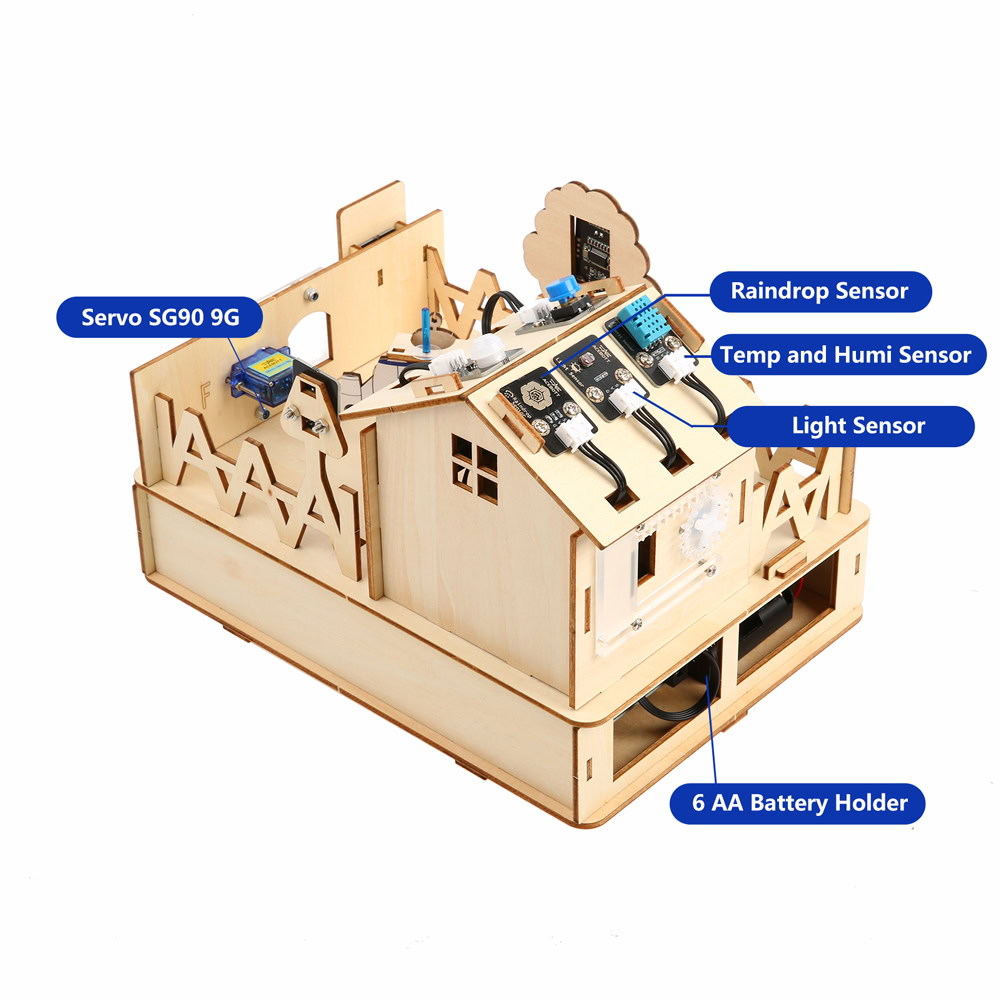

- Environmental automation using a rain sensor module to trigger actions such as “close the window when rain is detected”

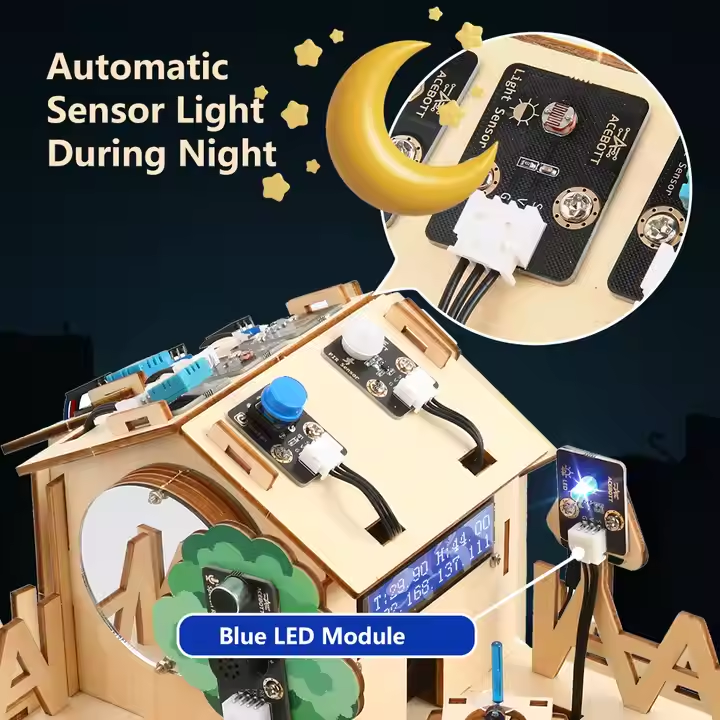

- Lighting control including standard LEDs and RGB effects (control method depends on included RGB module type; may be PWM or addressable depending on revision)
The kit is also designed to be expandable. ESP32 boards typically expose GPIO pins that can be used for additional sensors (temperature, motion, light), actuators (servos, relays), and communication buses (I2C/SPI/UART) depending on the controller board layout. This makes the QE001 suitable not only for guided lessons but also for open-ended engineering challenges and science fair projects.
Specifications
- Controller platform: ESP32-based controller board (exact ESP32 module/variant varies by revision; check board marking)
- Wireless connectivity: WiFi + Bluetooth/BLE capability typical of ESP32 platforms (availability depends on board revision and firmware)
- Programming support: Scratch-style block coding, Arduino-compatible development workflows, Python (exact toolchain depends on curriculum/software version)
- Smart home functions: RFID door access, rain-detecting automation for window control, LED/RGB lighting control, voice interaction mode, app control
- Curriculum: 18 guided lessons/tasks (as provided by the kit’s tutorial package)
- Recommended learner age: 8–16 (guidance; adult supervision recommended for younger users)
- Power requirements: varies by controller board and connected modules; follow the included manual and module datasheets for voltage/current limits
- Materials: model/build structure typically uses laser-cut wooden panels (exact wood type/thickness varies by kit batch)
Applications
- K-12 STEM/STEAM classroom labs: teach sensors, automation, and IoT concepts with a tangible smart home model
- Homeschool and after-school clubs: guided projects that progress from beginner to intermediate coding
- Intro to embedded systems: GPIO, PWM lighting, sensor thresholds, and automation logic
- IoT demonstrations: app control, wireless control concepts, and smart “modes” (Auto/Explorer/ASR depending on curriculum)
- Robotics and maker education: expand with additional modules to create custom smart devices and interactive scenes
Integration Notes
- Verify the exact ESP32 board revision and pin mapping before wiring add-on modules; GPIO availability and labeling can differ by version.
- For RFID and voice modules, confirm operating voltage and interface type (UART/I2C/SPI) on the module silkscreen or datasheet before connecting.
- If using Arduino IDE or Python, install the recommended board package/drivers and select the correct ESP32 target profile as specified in the kit tutorial.
- When adding higher-current loads (motors/servos/relays), use appropriate external power and common-ground wiring to protect the controller.
- App control behavior depends on the provided software ecosystem; follow the kit’s official tutorial for pairing/setup steps.
Included Components

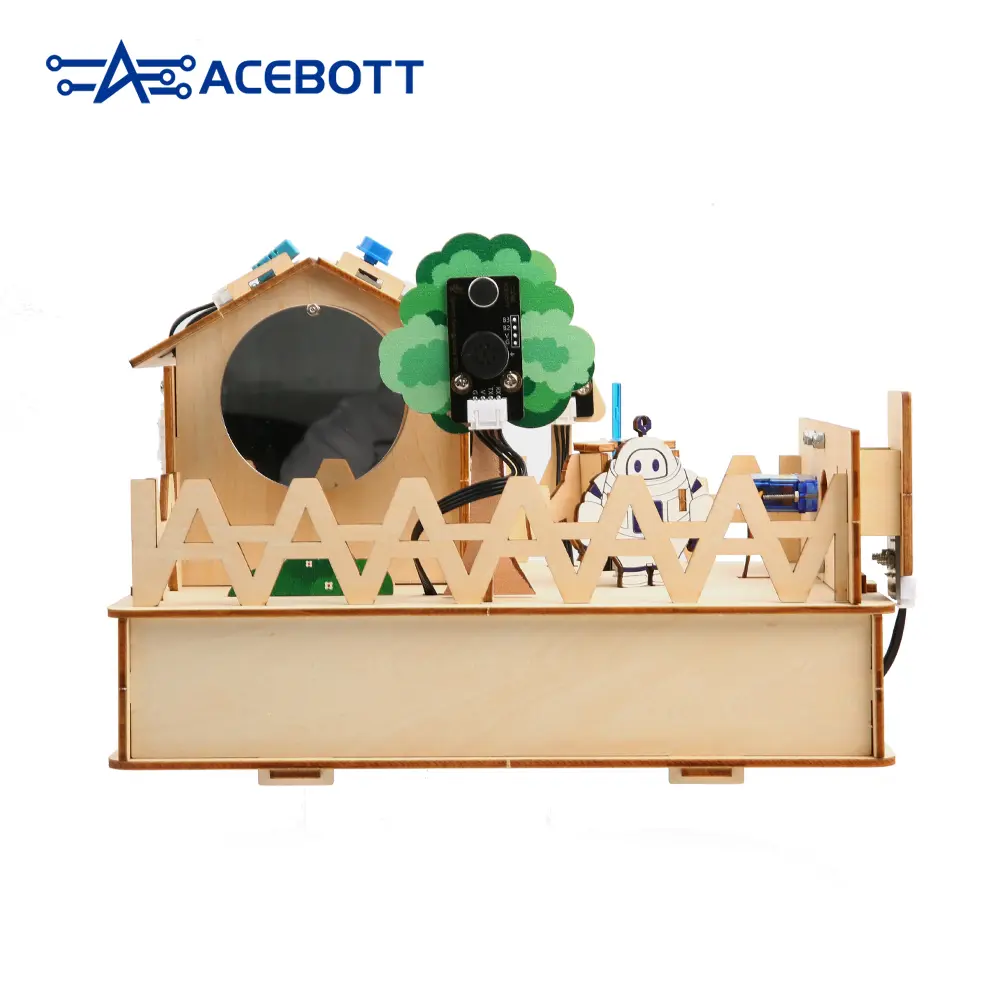

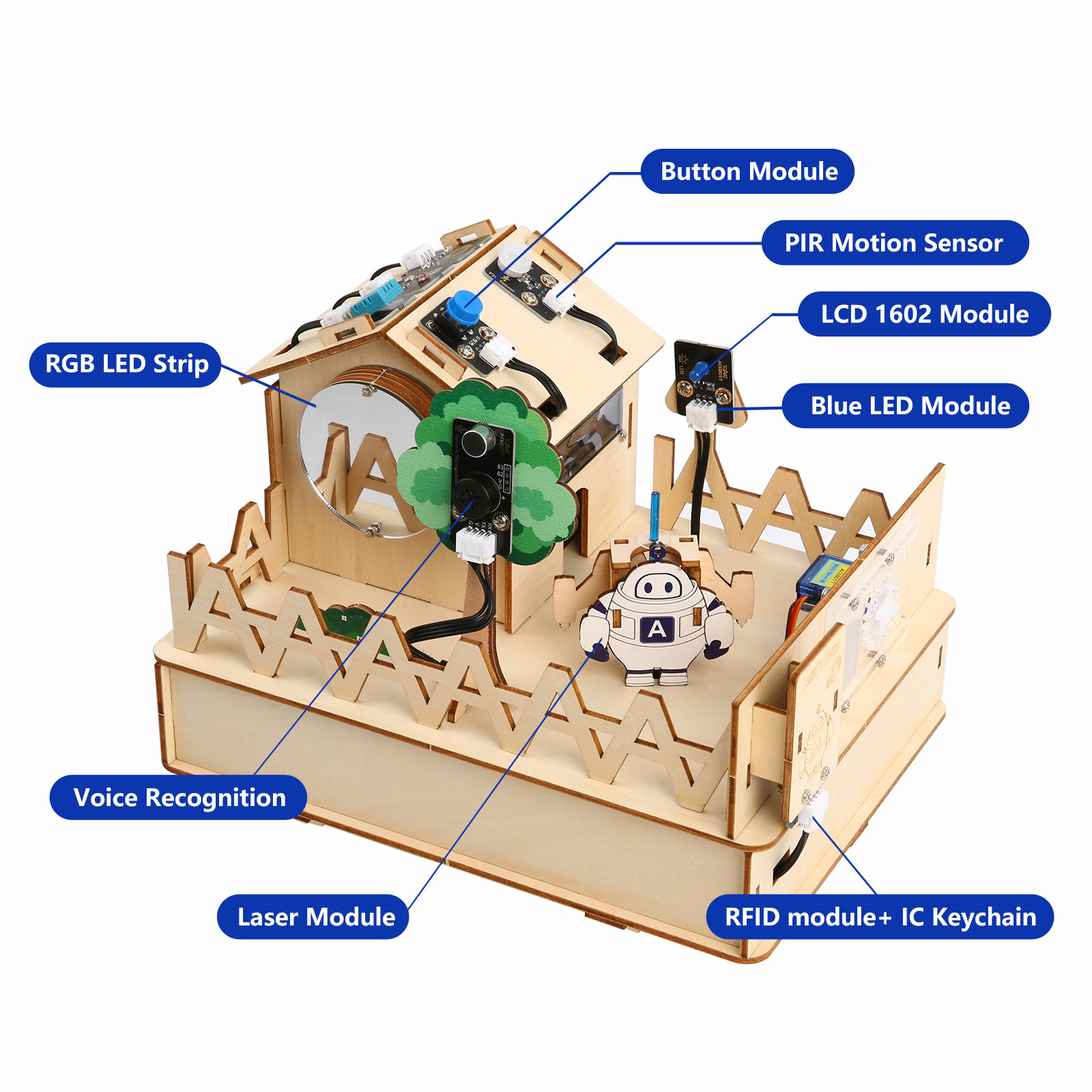

QE001 Smart Home IoT STEM Kit (ESP32 board + modules + model parts)
Smart Home Starter Kit Advantages
Support programming
APP Control
Rich and detailed tutorial
Smart Home Starter Kit Multiple modes

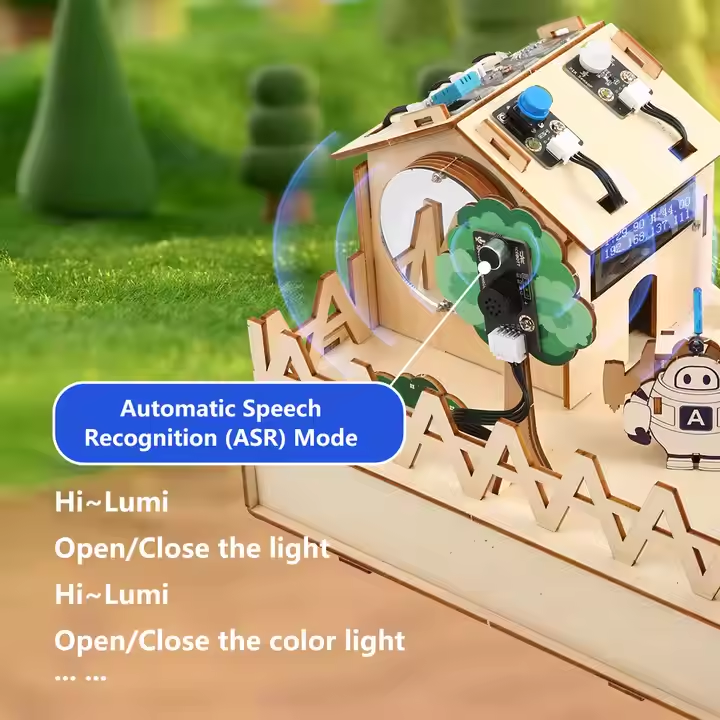

ASR Mode
Auto Mode
Explorer Series Smart Home Starter Kit
Powered by the powerful ESP32 board
