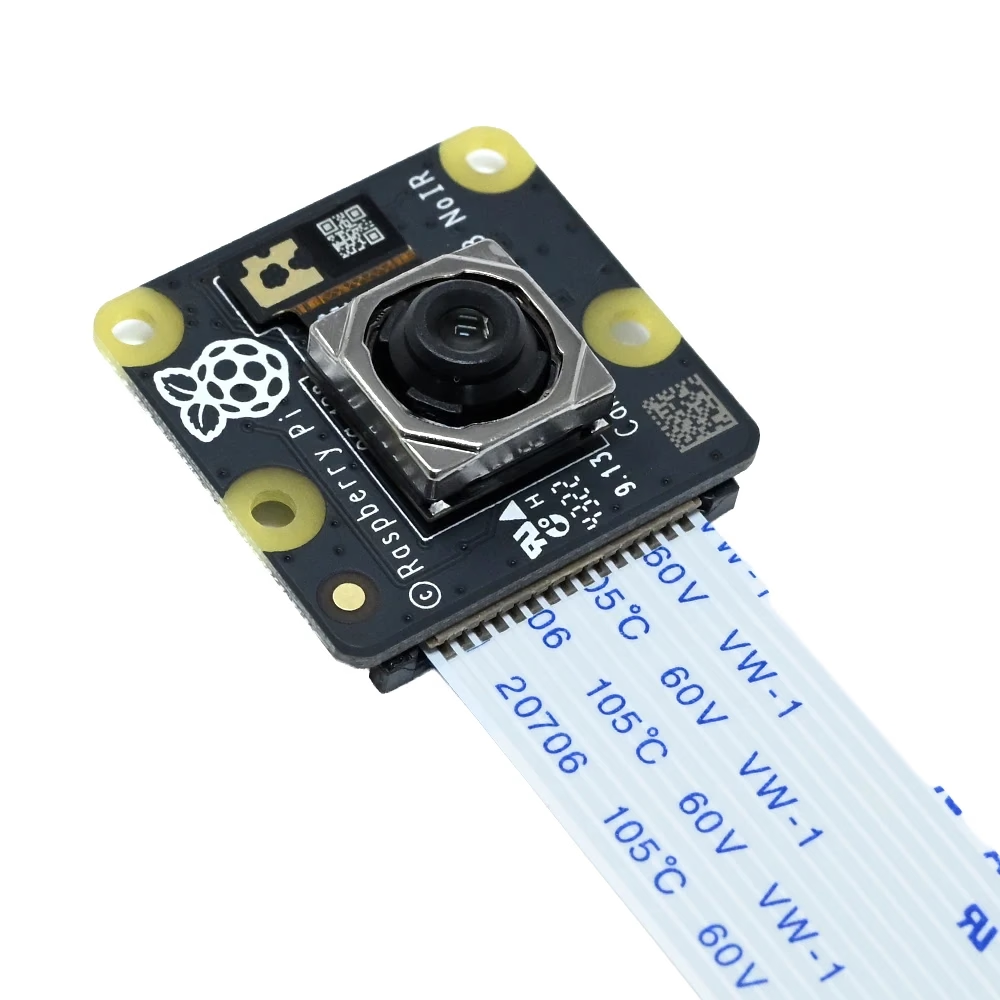

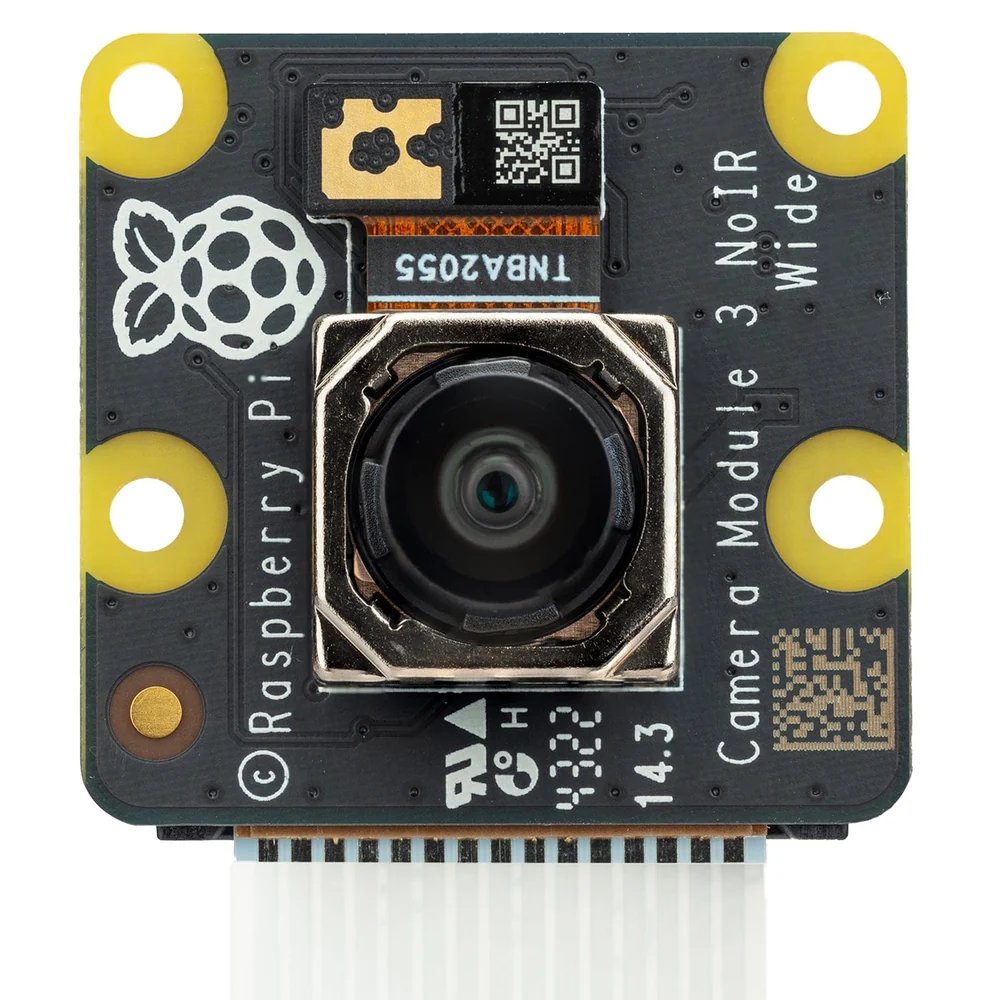

Raspberry Pi Camera Module 3 NoIR Wide - 12MP Sony IMX708 Sensor, HDR, Autofocus, 120 Degree Field of View for Raspberry Pi Computers

The Raspberry Pi Camera Module 3 NoIR Wide is an advanced imaging solution designed specifically for single-board computer enthusiasts, developers, and engineers seeking high-performance vision capabilities. Building upon the success of earlier iterations, this module integrates a state-of-the-art Sony sensor with enhanced optical features, high dynamic range support, and precise autofocus mechanisms. The NoIR designation indicates the absence of an infrared-blocking filter on the sensor lens assembly, making this variant uniquely sensitive to infrared light. This specialized capability unlocks powerful use cases in nighttime photography, wildlife observation, plant health monitoring using specialized filters, and low-light security installations. Whether you are building a custom robotics platform, a home automation monitoring station, or an advanced machine learning vision project, this camera module delivers exceptional clarity, versatility, and integration simplicity.

At the core of the Camera Module 3 NoIR Wide is the Sony IMX708 12-megapixel image sensor. This backside-illuminated and stacked sensor architecture optimizes light gathering efficiency, resulting in superior low-light performance and reduced noise compared to older sensor generations. Unlike standard camera modules, the NoIR variant passes infrared wavelengths directly to the silicon sensor, allowing it to "see" in the dark when infrared illuminators are active. The integrated phase detection autofocus system utilizes a motorized lens assembly controlled via the host Raspberry Pi processor, ensuring objects at varying distances remain tack sharp without manual lens twisting. Furthermore, the module supports High Dynamic Range mode, capturing multiple exposures internally to preserve details in both deep shadows and bright highlight areas simultaneously.

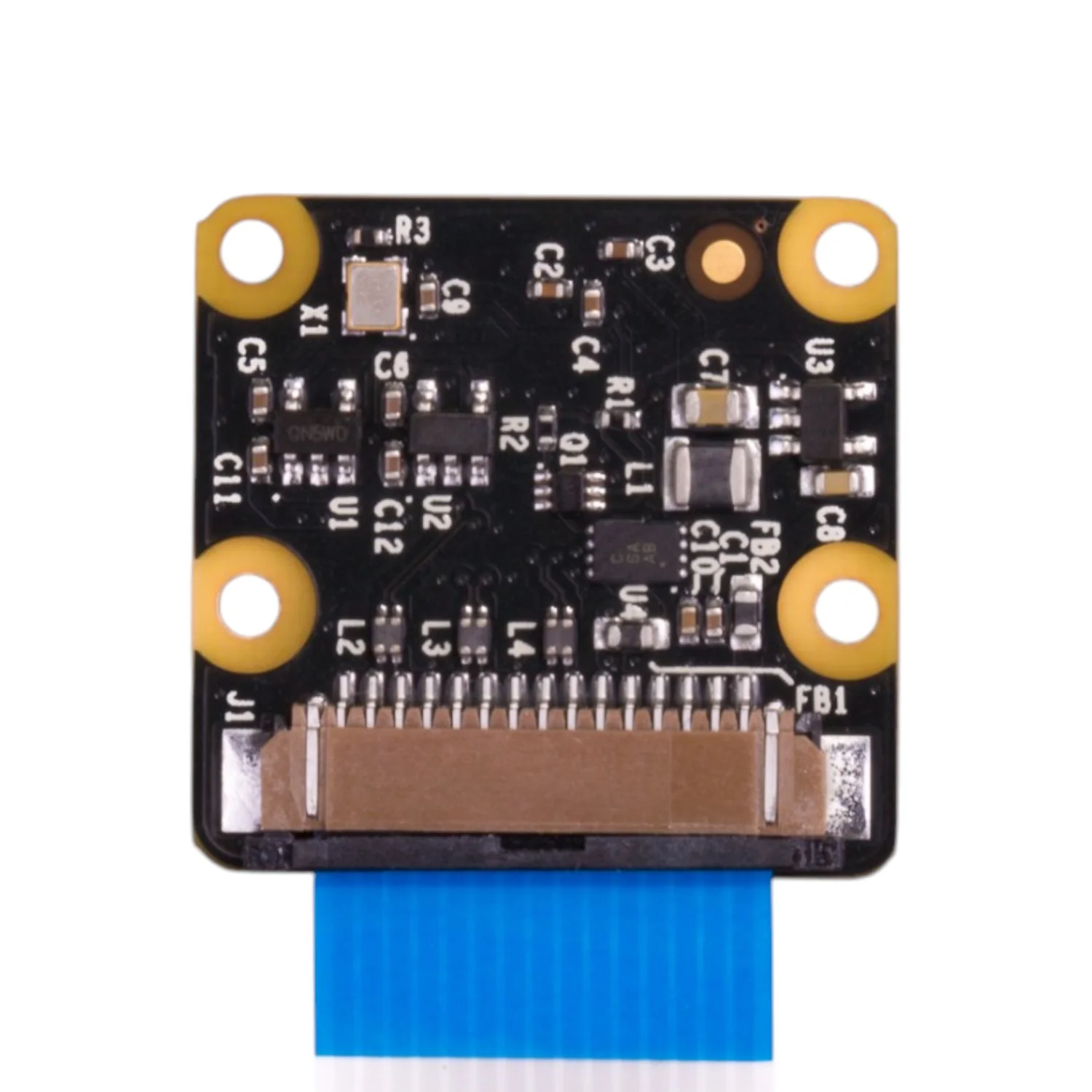

The optical assembly offers an ultra-wide 120-degree diagonal field of view, making it ideal for applications requiring expansive scene capture from a fixed vantage point. The focal length is configured to balance wide coverage with minimal optical distortion at the edges. Data transfer between the camera and the Raspberry Pi board occurs over a high-speed MIPI CSI-2 serial interface, ensuring high frame rate video streaming and rapid still image capture. Power is supplied directly through the camera connector interface, eliminating the need for external power supplies. The physical printed circuit board footprint maintains standard mounting hole placements for straightforward mechanical integration into custom enclosures and brackets.

This versatile camera module excels across a wide array of DIY, educational, and commercial deployments. In robotics and autonomous vehicles, the wide field of view provides essential spatial awareness for obstacle detection and navigation algorithms. Wildlife researchers utilize the NoIR capability to monitor nocturnal animal behavior without disturbing natural habitats using invisible infrared illuminators. Agricultural technologists deploy these sensors for normalized difference vegetation index imaging and crop health assessment. Additional applications include automated time-lapse photography, DIY security camera systems, interactive art installations, and computer vision projects utilizing OpenCV and TensorFlow.

Getting started with the Raspberry Pi Camera Module 3 NoIR Wide requires connecting the supplied FPC ribbon cable to the CSI port on a compatible Raspberry Pi computer. Ensure the system software is updated to the latest operating system release, as camera support relies on modern libcamera stacks rather than legacy interface drivers. Enable the camera interface through the system configuration utility before attempting image capture. When handling the module, observe standard electrostatic discharge precautions to protect sensitive microelectronic components. Adjust software focus parameters and HDR settings via command-line utilities or Python programming libraries to achieve optimal image quality for your specific environment.

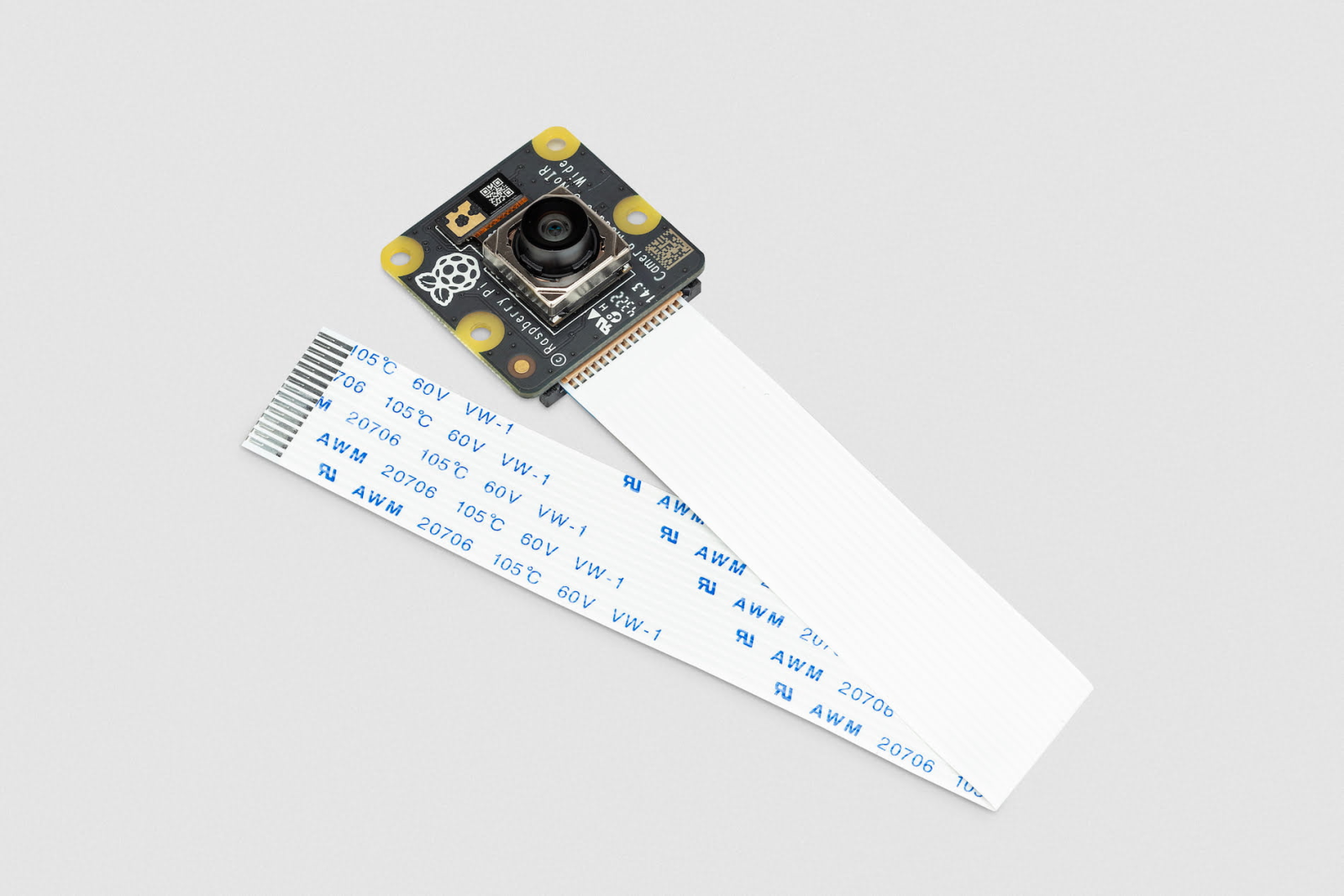

1x Raspberry Pi Camera Module 3 NoIR Wide, 1x 200mm FPC Ribbon Cable
