// 01

Description

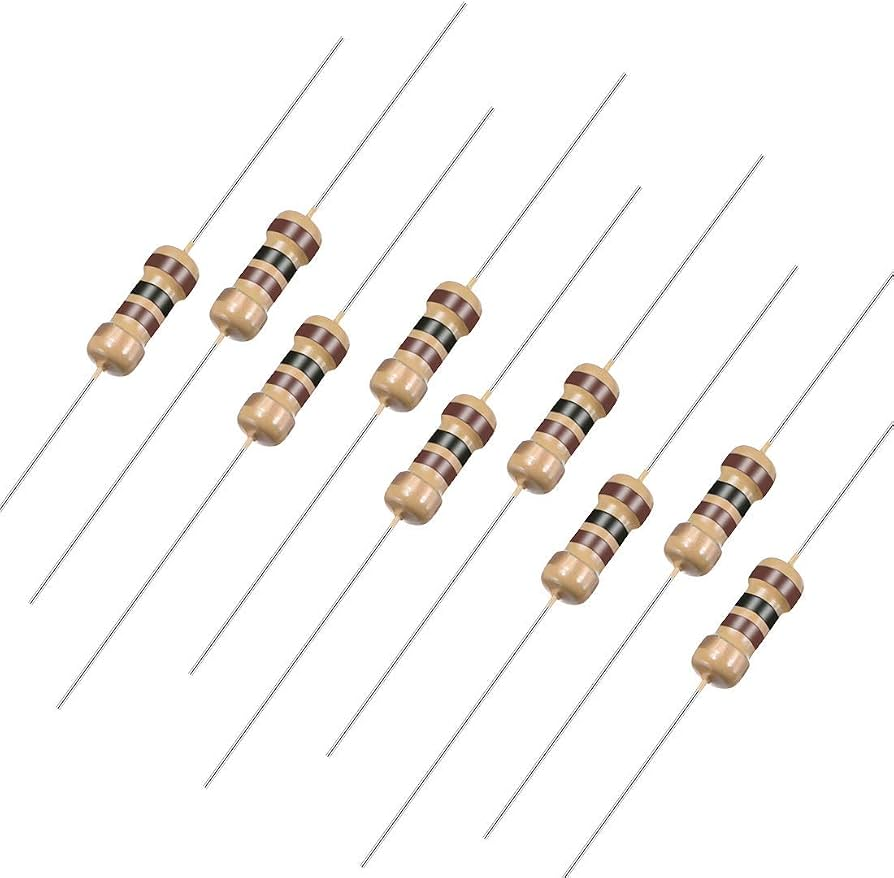

A 100kΩ carbon film resistor rated 1/4 W with ±5% tolerance, in the standard through-hole axial package. It pushes straight into a breadboard, fits every Arduino and Raspberry Pi tutorial, and solders into any 2.54 mm perfboard.

Typical uses for 100kΩ: pull-ups, pull-downs, LDR and sensor voltage dividers.

What it does

Sets current or divides voltage in any circuit
Fits breadboards, perfboard and PCBs with 2.54 mm spacing
Colour-banded so the value can be read without a meter

Specifications

Specification	Value
Resistance	100kΩ
Tolerance	±5%
Power rating	1/4 W at 70 °C
Type	Carbon film, through-hole axial
Colour code	4 bands: brown, black, yellow, gold
Max working voltage	250 V
Body size	About 6.3 × 2.4 mm
Lead diameter	0.55 mm, tinned copper
Lead pitch (flat mount)	10 mm
Operating temperature	-55 to 155 C
Sold as	Per piece

Reading the bands

Brown, black, yellow, gold reads 100kΩ at ±5%. Hold the resistor with the gold band on the right and read left to right. When in doubt, measure with a multimeter before soldering.

// 02

Specifications

Resistance 100kΩ

Tolerance ±5%

Power rating 1/4 W at 70 °C

Type Carbon film, through-hole axial

Colour code 4 bands: brown, black, yellow, gold

Max working voltage 250 V

Body size About 6.3 × 2.4 mm

Lead diameter 0.55 mm, tinned copper

Lead pitch (flat mount) 10 mm

Operating temperature -55 to 155 C

Sold as Per piece
