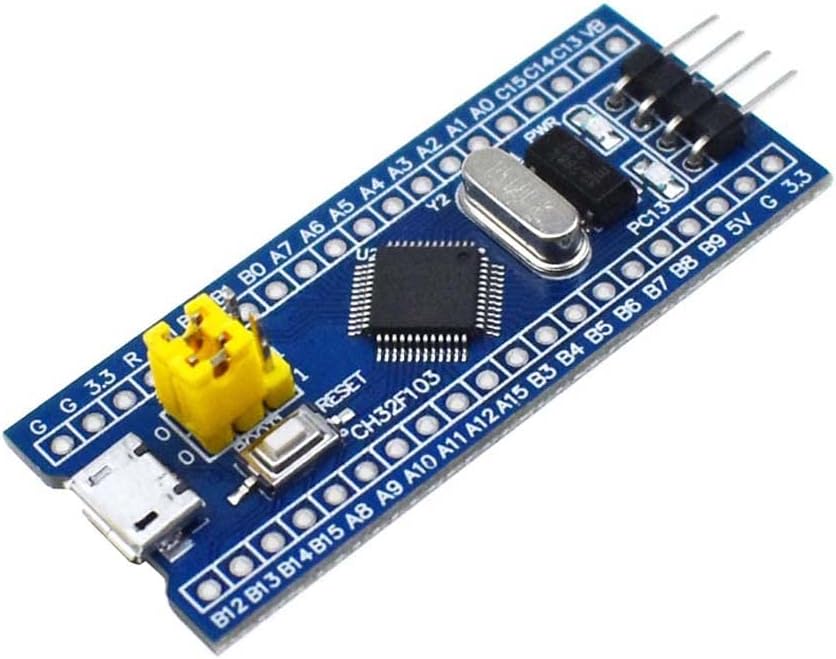

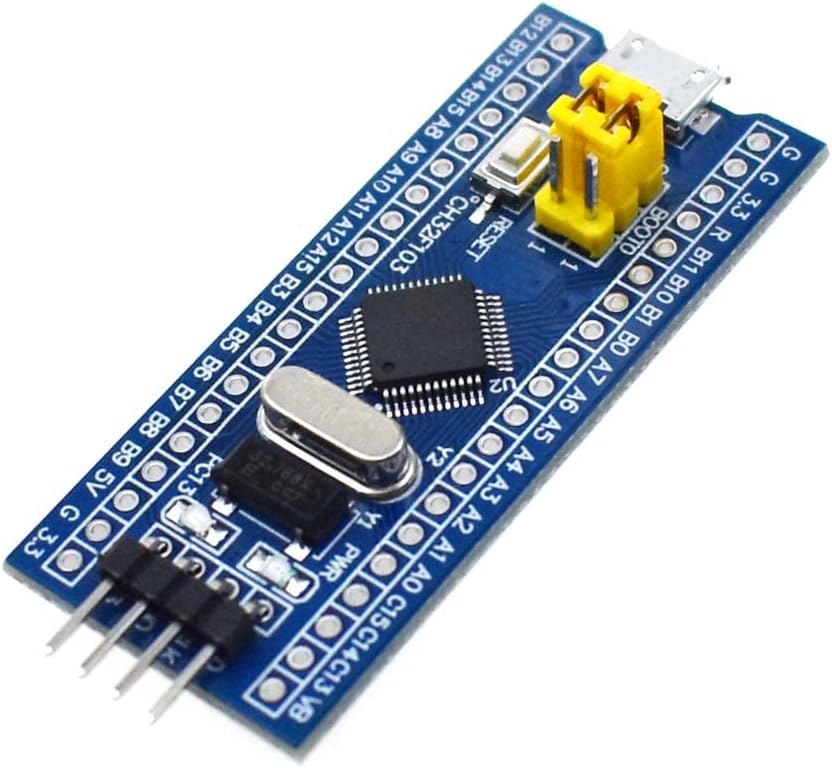

The STM32F103C8T6 Development Board (commonly known as the Blue Pill) is a compact, powerful 32-bit microcontroller module based on the ARM Cortex-M3 architecture. It’s a favorite among makers and embedded developers who want more performance and peripherals than basic 8-bit boards, while still keeping projects affordable and easy to build.
With a 40-pin layout, this board provides a generous number of GPIO pins plus common communication interfaces like UART, I2C, SPI, and multiple PWM-capable pins for motor control, LEDs, servos, and timing tasks. The microcontroller runs at 3.3V logic, making it a great match for many modern sensors and modules.
Programming can be done through different methods depending on your setup and board version. Many boards include a Type-MICRO USB port for power and, on some versions, USB communication or easy flashing when configured with the right tools. You can also program using external tools like ST-Link (common in development environments). For Arduino-style development, it supports the Arduino IDE using STM32 board cores, enabling familiar libraries and rapid prototyping.
| Item | Typical Value |
|---|---|
| MCU | STM32F103C8T6 |
| Core | ARM Cortex-M3 |
| Operating Logic | 3.3V |
| GPIO Header | 40-pin (board layout) |
| Interfaces | UART / I2C / SPI / PWM / ADC |
| USB | Type-MICRO USB port (power/USB depending on setup) |
| Compatibility | Arduino IDE compatible (STM32 core support) |
Note: Exact bootloader/programming method and USB behavior can vary by board batch. Some versions require a specific programmer or bootloader configuration for uploading sketches.
