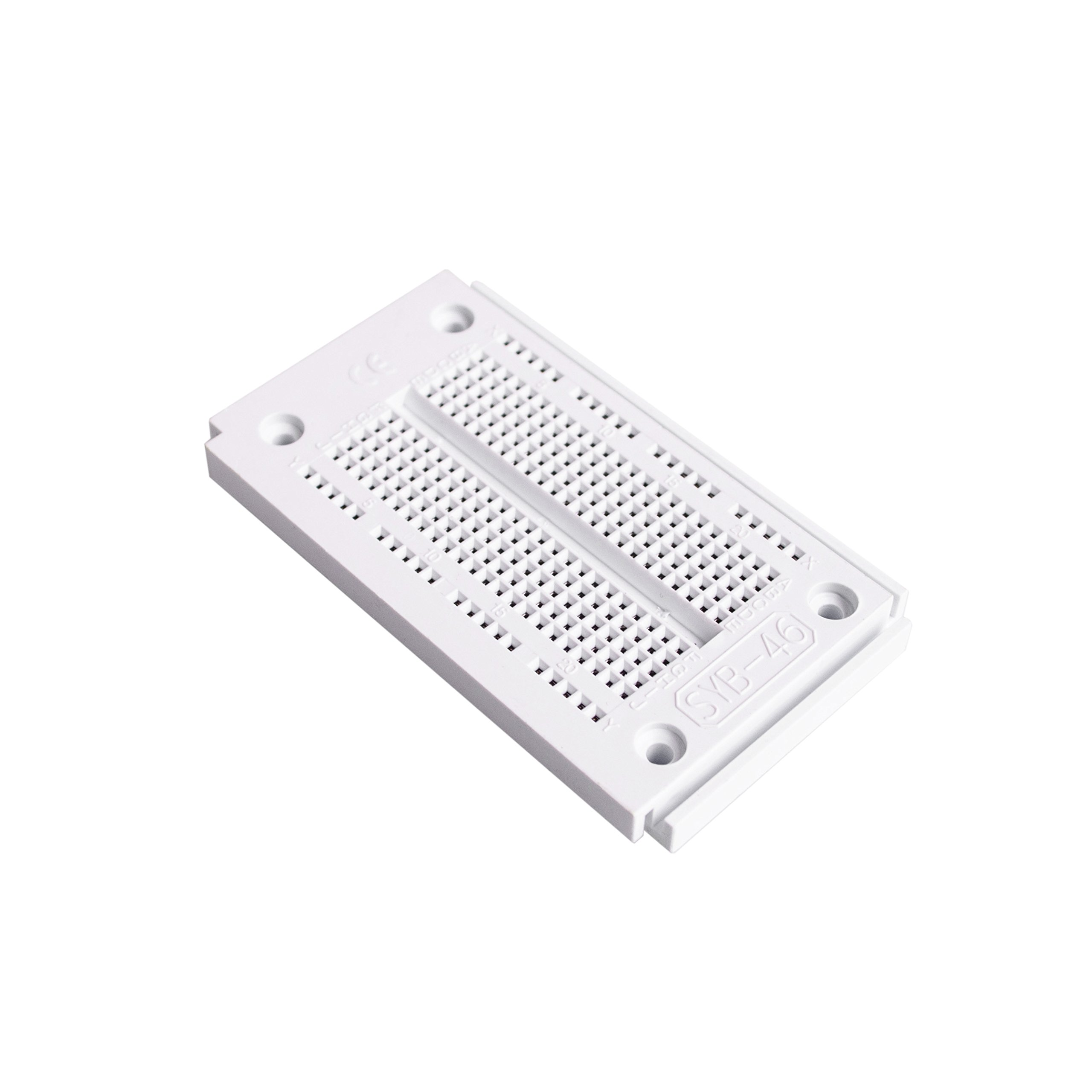

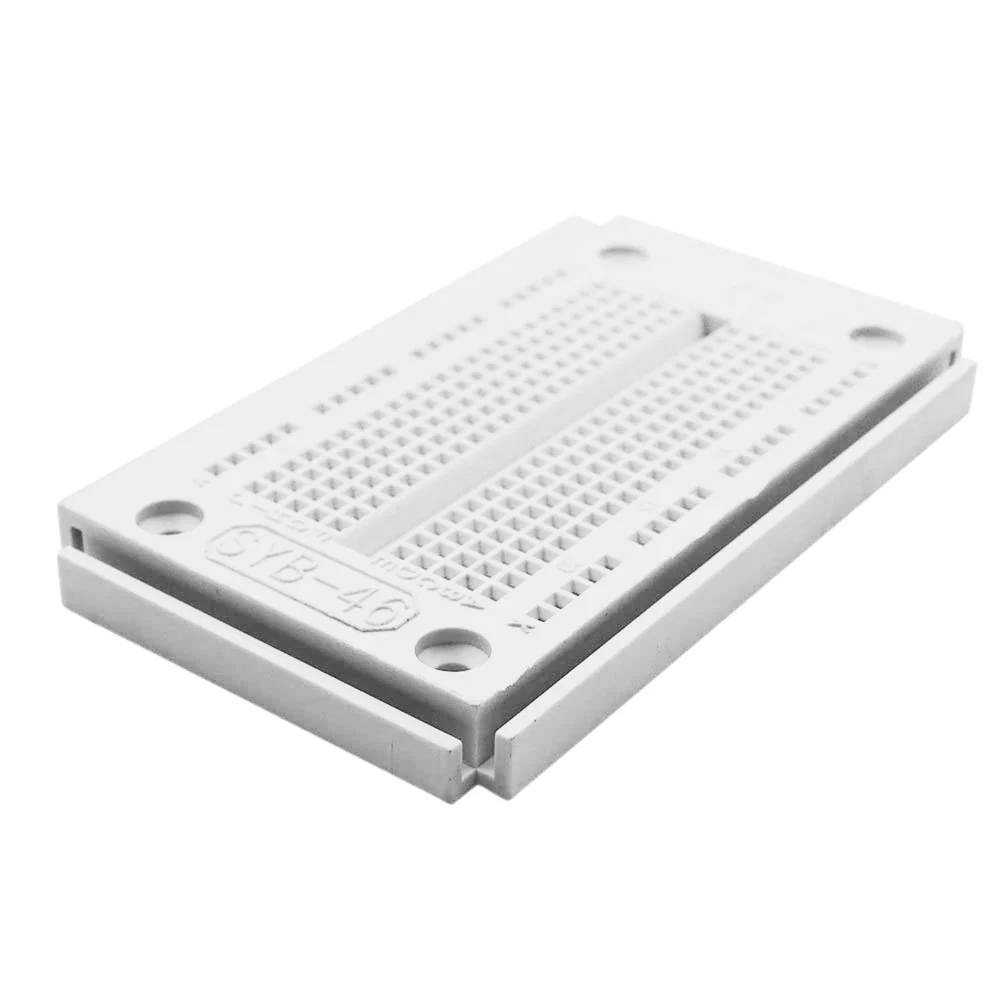

Solderless Breadboard 270 Tie Points - SYB-46 Prototype Board (9.05x5.26x0.86cm) with Self-Adhesive Backing for Arduino, Raspberry Pi, and DIY Electronic Circuit Prototyping

Overview

The DIYKIT SYB-46 Solderless Breadboard (SKU: DIY-299) is a premium-grade, compact prototyping board designed for engineers, students, and DIY electronics enthusiasts. With 270 high-retention tie-points, this breadboard offers the perfect balance between size and functionality, making it an indispensable tool for temporary circuit design, hardware debugging, and educational experimentation. Whether you are building your first LED flasher circuit or testing complex microcontroller interfaces for Arduino or Raspberry Pi projects, the SYB-46 provides a reliable, solder-free platform that saves time and protects your valuable components from thermal damage.

Technical Details

At the core of the SYB-46 breadboard is a matrix of internal spring clips constructed from high-conductivity phosphor bronze, which are nickel-plated to resist corrosion and wear over hundreds of insertion cycles. These spring clips are housed within a robust, flame-retardant ABS plastic body that provides excellent electrical insulation. The board features a standard 2.54mm (0.1 inch) pin pitch, ensuring universal compatibility with standard dual-in-line (DIP) integrated circuits, transistors, resistors, capacitors, and standard male jumper wires. The layout consists of terminal strips arranged in columns and rows to facilitate logical circuit routing. The back of the breadboard is equipped with a high-tack, double-sided self-adhesive foam pad, allowing users to permanently or semi-permanently mount the breadboard onto project chassis, robotic platforms, or custom prototyping plates.

Specifications

• Model: SYB-46 (SKU: DIY-299)
• Total Tie-Points: 270 points
• Pitch: 2.54 mm (0.1 inches)
• Dimensions: 9.05 cm x 5.26 cm x 0.86 cm (approximate, check datasheet for exact tolerances)
• Base Material: Flame-retardant ABS plastic
• Internal Contact Material: Nickel-plated phosphor bronze spring clips
• Backing: Heavy-duty double-sided self-adhesive foam tape
• Compatible Wire Gauge: 20 AWG to 29 AWG (0.3 mm to 0.8 mm diameter recommended)
• Maximum Voltage: Varies by module revision; typical rating is up to 30V (check datasheet for high-frequency or high-voltage limits)
• Maximum Current: Varies by module revision; typical rating is up to 3 Amps (check datasheet for thermal limits)
• Insulation Resistance: Greater than 1000 Megohms at DC 500V (typical, check datasheet)

Applications

The SYB-46 270-point breadboard is highly versatile and fits perfectly into various electronic workflows:

• Microcontroller Prototyping: Easily interface sensors, actuators, and displays with development boards like Arduino Uno, Nano, ESP32, or Raspberry Pi Pico.
• Educational Labs: An excellent resource for STEM classrooms, physics labs, and university engineering courses to teach basic circuit theory without soldering.
• Sensor Testing: Rapidly connect and calibrate analog and digital sensors before committing to a permanent printed circuit board (PCB) design.
• DIY Robotics: Create lightweight, modular control circuits on mobile robot chassis using the integrated adhesive backing.
• Rapid Troubleshooting: Isolate and test individual sub-circuits or components during hardware debugging phases.

Integration Notes

To ensure the longevity and optimal performance of your DIYKIT SYB-46 breadboard, please observe the following integration guidelines:

• Wire Selection: Always use solid-core jumper wires or pre-formed breadboard jumpers between 20 AWG and 29 AWG. Stranded wire must be crimped with ferrule terminals before insertion to prevent fraying and short circuits.
• Component Lead Preparation: Avoid inserting component leads that are too thick (such as heavy-duty diode leads or thick terminal pins), as this can permanently deform the internal phosphor bronze spring clips, leading to poor contact resistance in future uses.
• Power Distribution: When routing power, keep positive and negative rails clearly defined. Ensure your power supply voltage and current do not exceed the safe operational limits of the breadboard (varies by module revision; check datasheet).
• Mounting: Before applying the self-adhesive backing to a surface, ensure the target surface is clean, dry, and free of dust or grease to guarantee a strong, permanent bond.

Included Components

1 x DIYKIT SYB-46 270-Point Solderless Breadboard
