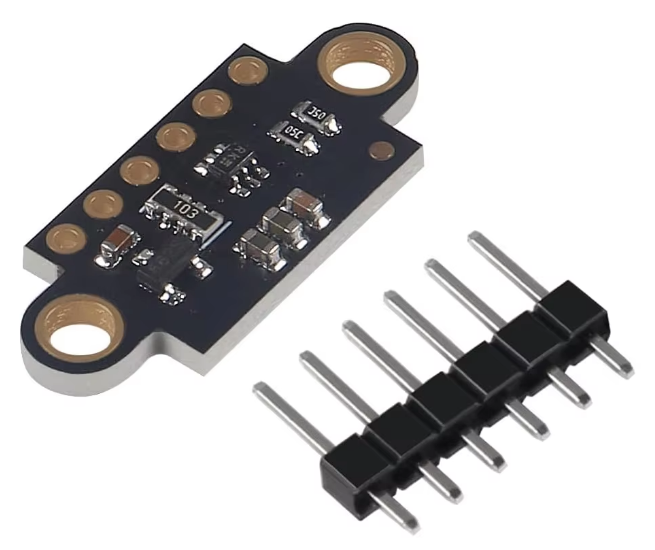

Bring reliable short-range distance sensing to your projects with the VL53L0X Time-of-Flight (ToF) distance measurement sensor module. This compact breakout board uses ToF ranging technology to measure distance by timing how long it takes a light pulse to travel to a target and return. Compared to many traditional IR reflective sensors, ToF ranging is designed to deliver more consistent results across different surface colors and lighting conditions, making it a popular choice for robotics, automation, and smart device prototypes.
The VL53L0X module is ideal for makers and engineers who need a small, lightweight sensor for obstacle detection, proximity sensing, height measurement, and simple positioning tasks. It can be used in mobile robots to detect objects in front of the robot, in small drones or gimbals to estimate height over a surface, in smart bins and dispensers to detect hand presence, and in IoT devices where a compact range sensor is required. Because it outputs distance data digitally, it is well suited for data logging, dashboards, and rule-based automation (for example, triggering a relay, motor action, or alert when an object is within a chosen threshold).

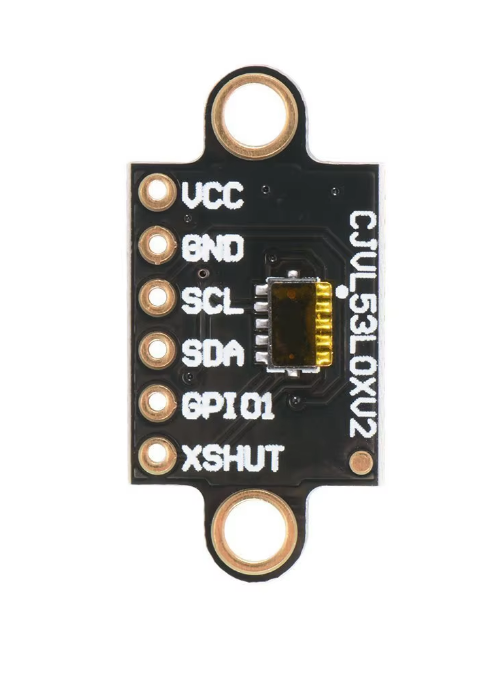

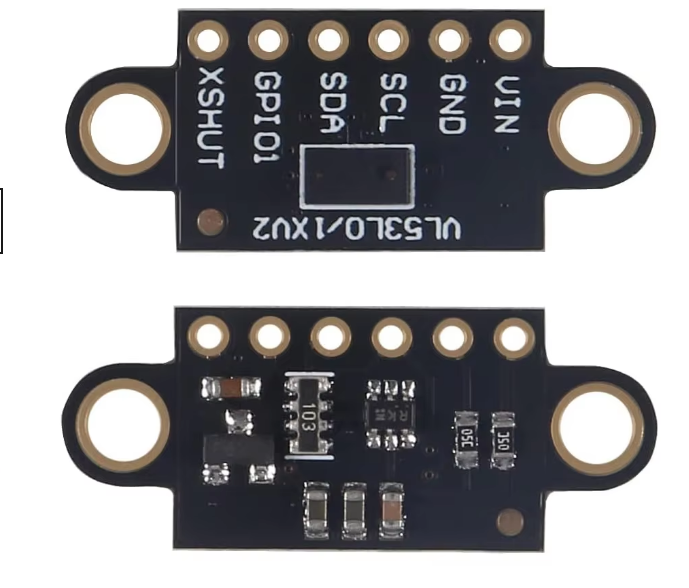

Integration is straightforward thanks to the I2C interface. Most breakout boards provide clearly labeled pins for VCC, GND, SCL, and SDA, allowing you to connect the module quickly to Arduino, ESP32, and many other microcontrollers. For Raspberry Pi and similar systems, the sensor can be read through I2C using common libraries. Since I2C is a shared bus, it also helps keep wiring neat in projects where multiple sensors are installed. In code, the sensor is typically read as a distance value, and you can apply smoothing or averaging to reduce noise and get steadier measurements for moving objects.
To get the best results, mount the module securely and aim it directly toward the target area. Extremely shiny, transparent, or very dark surfaces can influence readings, and very bright sunlight may affect optical sensors in some setups. If you’re using the sensor outdoors or near reflective materials, it is recommended to test in your real environment and adjust thresholds accordingly. For robotics, placing the sensor at a consistent height and avoiding vibration will improve repeatability. If the module is installed inside an enclosure, ensure the sensor has a clear “window” with no obstruction in front of the optical area.
This breakout module is a great fit for STEM education and prototyping. It allows students and hobbyists to learn modern ToF ranging concepts and build interactive projects that react to distance in real time. Whether you’re designing a line-of-sight obstacle detector, a distance-triggered switch, or a compact measurement tool, the VL53L0X is a practical and budget-friendly sensor module.
Included: 1× VL53L0X ToF distance sensor breakout module (pins/headers may be included depending on package). Note: distance performance depends on conditions such as target reflectivity, ambient light, alignment, and your software configuration.
1× VL53L0X ToF distance sensor module (headers may vary)
