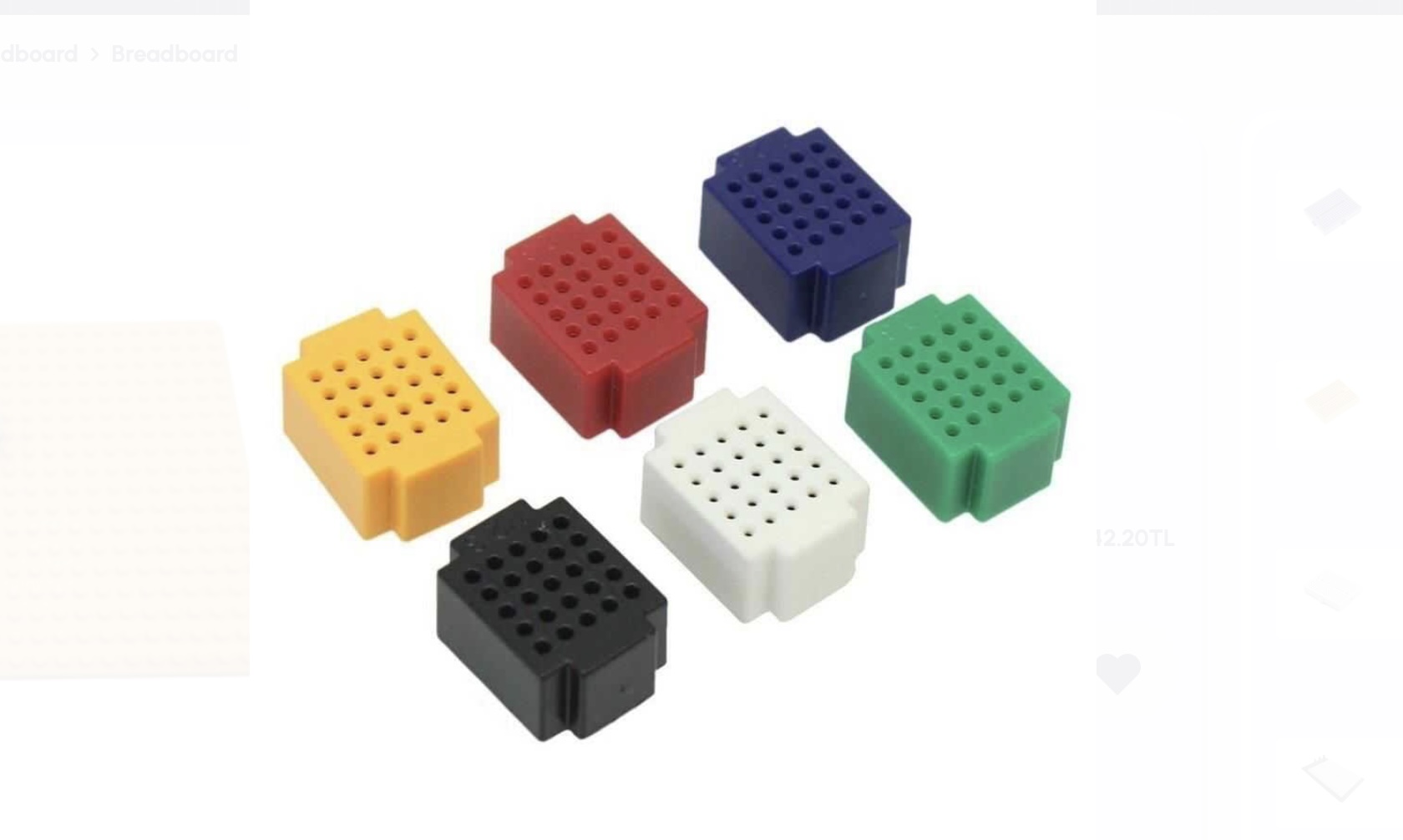

The XF-25 Ultra Mini Block Building Breadboard DIY Kit offers an innovative and modular approach to electronic prototyping and circuit design. Unlike conventional large breadboards, this kit consists of 6 multi-color interlocking mini breadboards and 1 dedicated base plate. Each individual mini breadboard features 25 tie points, allowing makers, students, and engineers to build compact circuits and scale their prototyping space dynamically. By combining the flexibility of building blocks with standard breadboard functionality, this kit provides a fun, efficient, and reliable method for testing electronic components, microcontrollers like Arduino, sensors, and passive parts without the need for soldering.
The XF-25 Ultra Mini Block Building Breadboard DIY Kit offers an innovative and modular approach to electronic prototyping and circuit design. Unlike conventional large breadboards, this kit consists of 6 multi-color interlocking mini breadboards and 1 dedicated base plate. Each individual mini breadboard features 25 tie points, allowing makers, students, and engineers to build compact circuits and scale their prototyping space dynamically. By combining the flexibility of building blocks with standard breadboard functionality, this kit provides a fun, efficient, and reliable method for testing electronic components, microcontrollers like Arduino, sensors, and passive parts without the need for soldering.

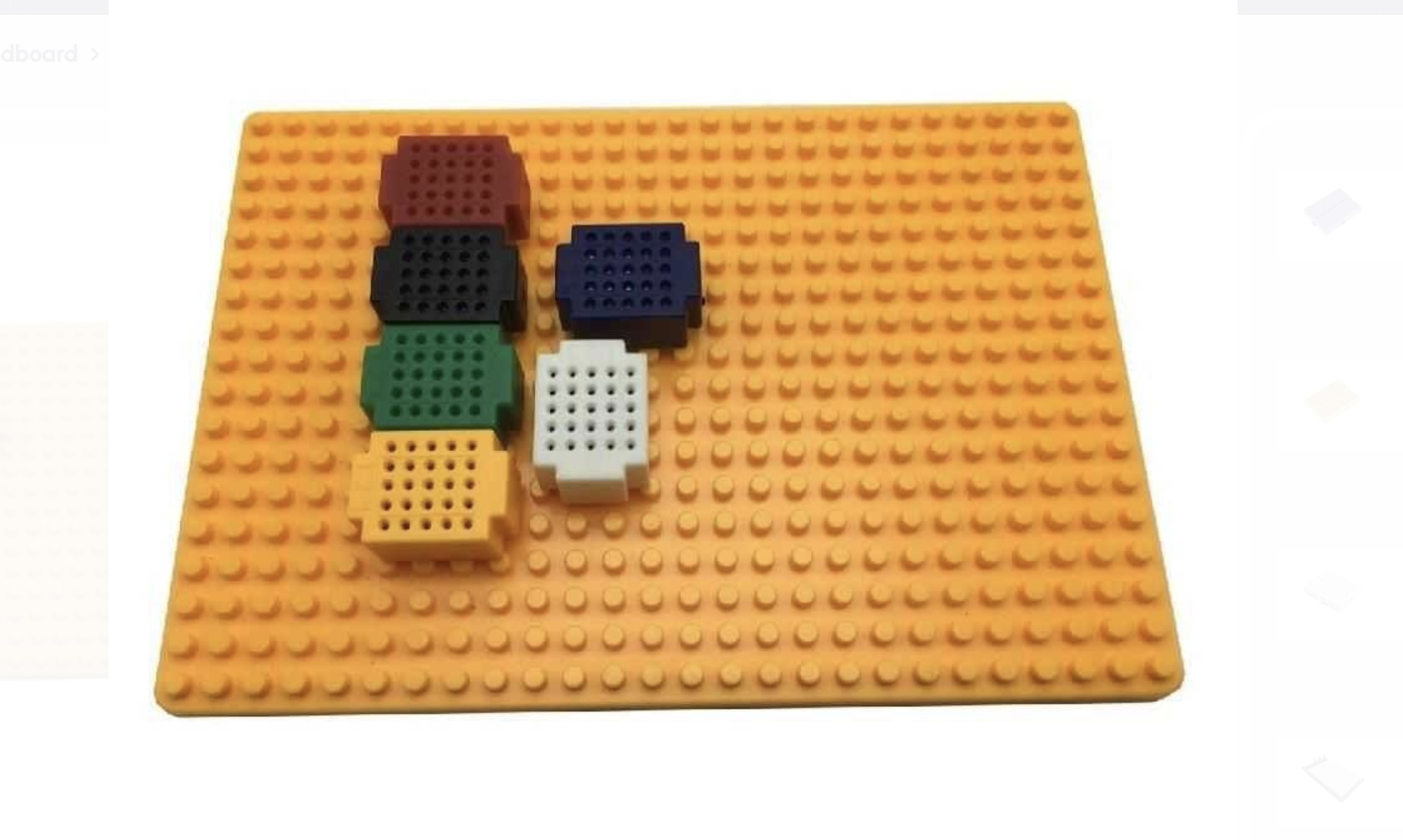

Each individual piece in this 6-piece set is precision-molded to maintain a consistent internal spring-clip connection, ensuring low contact resistance and stable electrical conductivity. The unique block-building architecture means you are no longer constrained by a fixed grid layout. You can snap the blocks together side-by-side or in custom geometric arrays to match the specific dimensions required by your experiment. Furthermore, the inclusion of a base plate provides a rigid foundation, preventing flex and disconnections during testing. The back of each mini breadboard features 2 small patch-holes, engineered to allow additional mechanical fastening when permanent or semi-permanent structural stability is required in a finished DIY enclosure.
The XF-25 block building breadboard measures 1.5 cm by 2 cm per individual unit, making it one of the most space-efficient prototyping tools available. Each block contains a 5 x 5 matrix totaling 25 tie points, perfectly suited for mounting single integrated circuits, resistors, LEDs, and jumper wires. The plastic housing is manufactured from durable, flame-retardant ABS material with high dielectric strength to prevent electrical short circuits between adjacent rows. The spring contact clips are fabricated from high-grade phosphor bronze with nickel or gold plating, rated for thousands of insertion cycles while maintaining secure retention force for wire diameters ranging from 0.4mm to 0.7mm.
This modular breadboard kit is ideal for a wide array of electronics projects, STEM education, robotics prototyping, and DIY hobbyist tasks. It excels in low-voltage DC applications such as testing analog filters, interfacing digital sensors with microcontrollers, constructing simple logic gate demonstrations, and building portable wearable electronics. Because the blocks can be detached and rearranged, they are particularly useful in constrained spaces or educational environments where students learn circuit theory by physically constructing modular nodes.
When integrating the XF-25 breadboards into your workflow, ensure that solid core jumper wires are used for optimal insertion into the 25 tie points. Avoid using stranded wires directly without pin headers, as they can bend or miss the internal spring clips. When snapping the 6 breadboard pieces onto the base plate, apply even downward pressure to engage the interlocking tabs securely. For permanent or vibration-prone installations, utilize the 2 rear patch-holes with compatible small screws or standoffs to anchor the assembly to your project chassis. Always verify circuit connections before applying power from external supplies or microcontroller boards.
6 x XF-25 Ultra Mini Breadboard Blocks, 6 x Base Plate For Block Building Breadb
