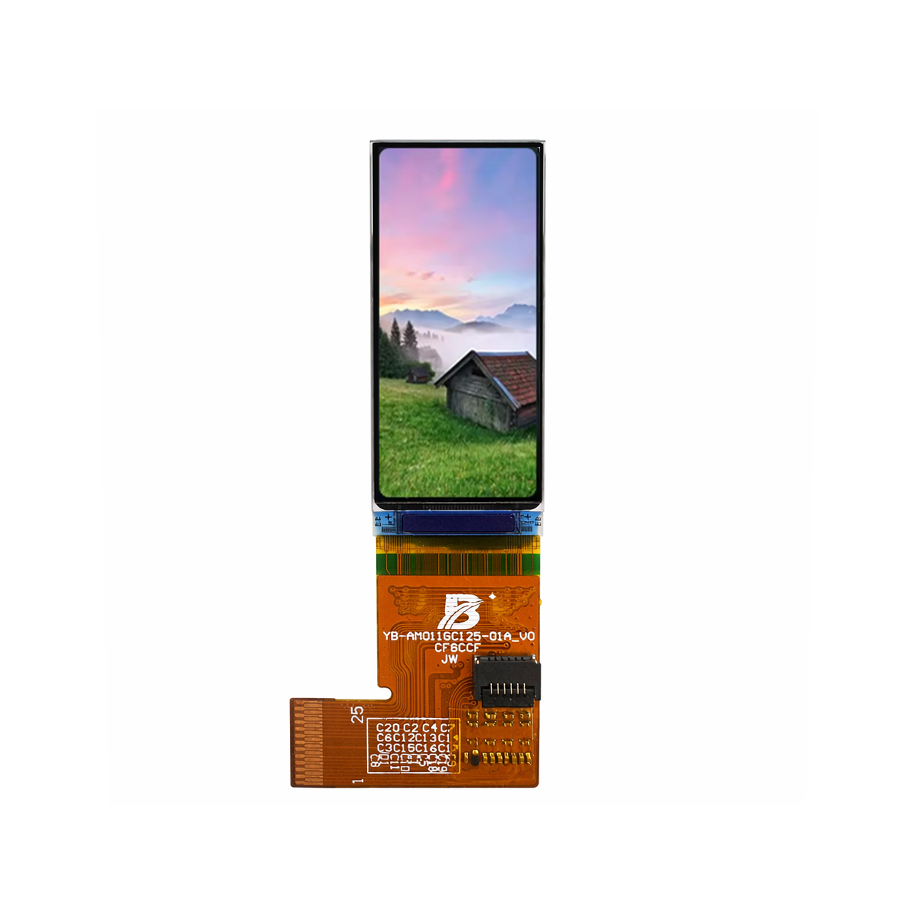

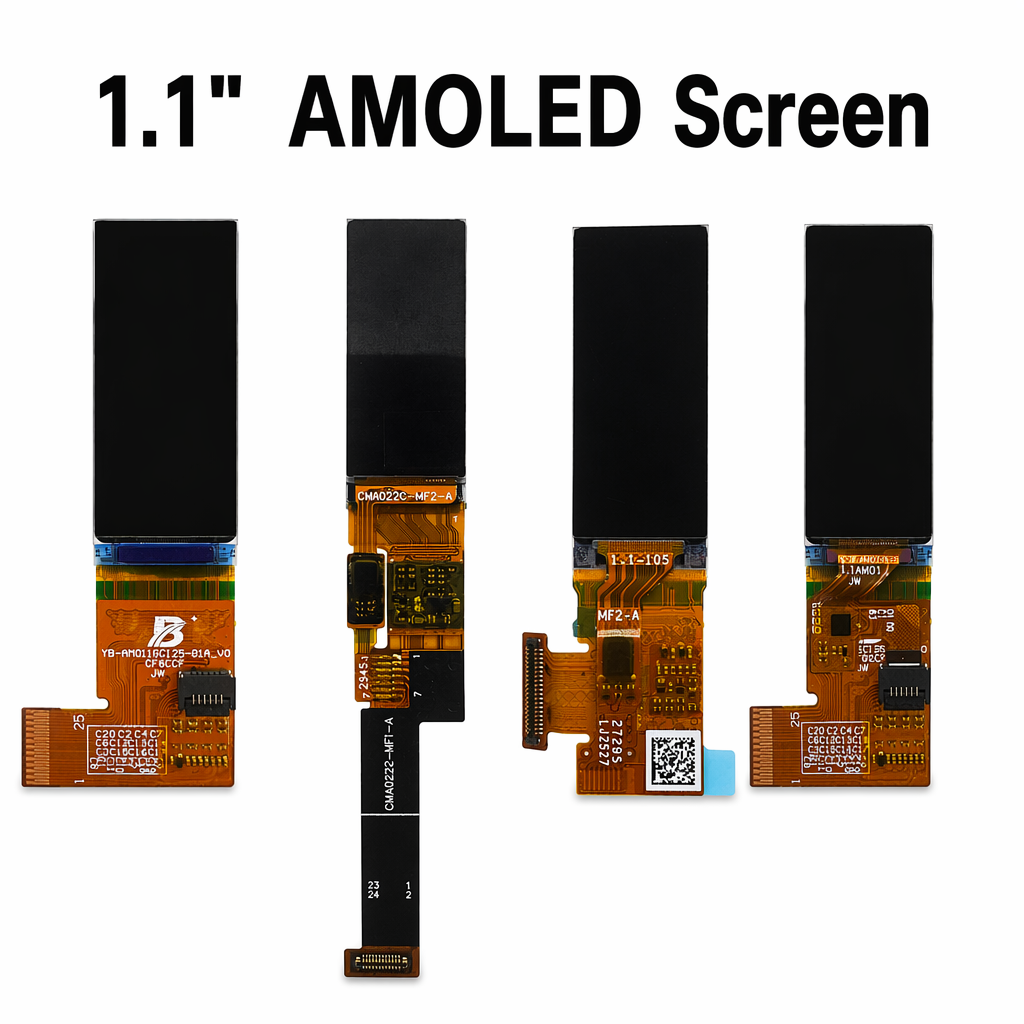

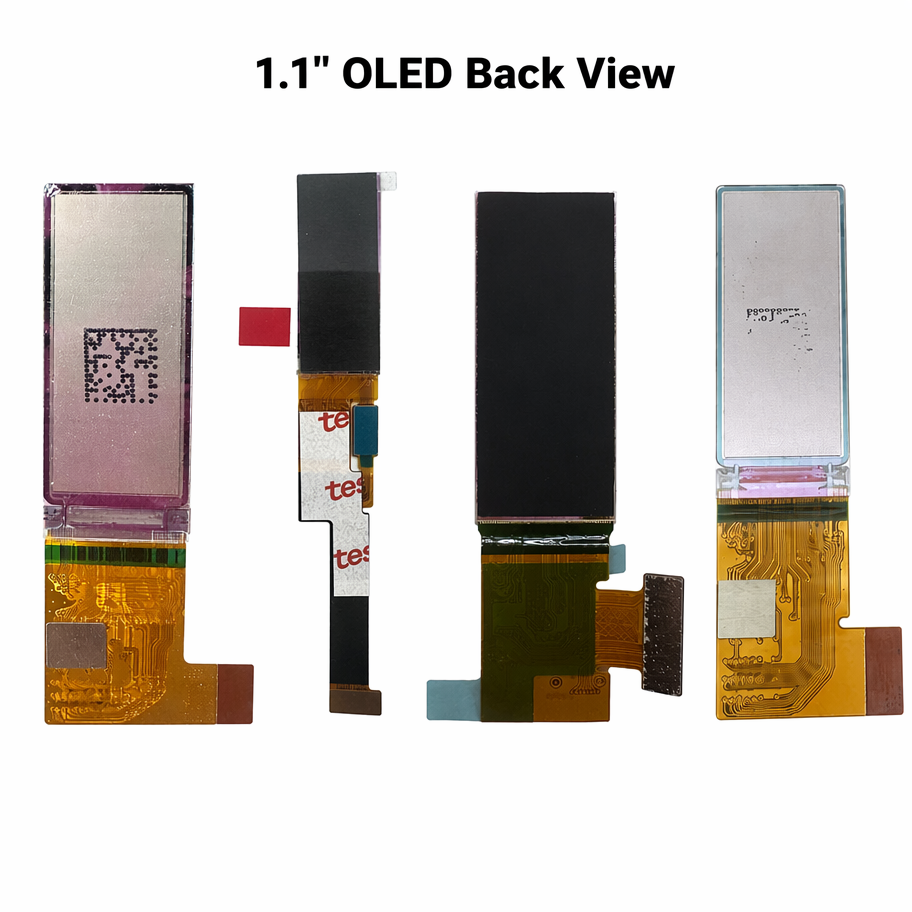

The YB-AM011C125-01A V0 1.10-inch Full-Color AMOLED Touch Display is a compact, high-resolution display designed for wearable electronics, smart devices, embedded systems, and other space-constrained applications. Its slim rectangular form factor and ultra-thin profile make it especially suitable for smartwatches, fitness trackers, portable monitoring devices, and custom wearable prototypes.
The panel uses Active Matrix AMOLED technology, providing individually illuminated pixels, deep black levels, strong contrast, vivid colors, and fast response. With a resolution of 126 × 294 pixels and 24-bit color depth, it is capable of displaying clear text, icons, graphics, status information, and full-color user interfaces in a very small footprint.
The YB-AM011C125-01A V0 1.10-inch Full-Color AMOLED Touch Display is a compact, high-resolution display designed for wearable electronics, smart devices, embedded systems, and other space-constrained applications. Its slim rectangular form factor and ultra-thin profile make it especially suitable for smartwatches, fitness trackers, portable monitoring devices, and custom wearable prototypes.
The panel uses Active Matrix AMOLED technology, providing individually illuminated pixels, deep black levels, strong contrast, vivid colors, and fast response. With a resolution of 126 × 294 pixels and 24-bit color depth, it is capable of displaying clear text, icons, graphics, status information, and full-color user interfaces in a very small footprint.
The display measures approximately 12.96 × 30.624 × 0.707 mm, with an active viewing area of 10.962 × 25.578 mm. It supports SPI, QSPI, and MIPI 1-Lane interfaces, allowing flexible integration with compatible embedded processors and custom PCB designs.
The panel is driven by the ICNA3306 display controller, while touch functionality is handled by the CF662-W touch controller. The display supports a normal refresh rate of 60 Hz and a 30 Hz Always-On Display mode, making it suitable for low-power wearable applications.
Specification Details
Model / FPC Marking YB-AM011C125-01A V0
Display Type Full-Color AMOLED
Screen Size 1.10 inch
Resolution 126 × 294 pixels
Color Depth 24-bit
Technology LTPS Active Matrix AMOLED
Active Area 10.962 × 25.578 mm
Module Dimensions 12.96 × 30.624 × 0.707 mm
Pixel Pitch 87 × 87 µm
Pixel Configuration V-Style2 / RGB
Interface SPI / QSPI / MIPI 1-Lane
Display Driver IC ICNA3306
Touch Support Yes
Touch Controller CF662-W
Refresh Rate 60 Hz
AOD Refresh Rate 30 Hz
Form Factor Slim rectangular panel
Connection Flexible FPC
Suitable for smartwatches, fitness bands, wearable health-monitoring devices, compact IoT interfaces, portable instrumentation, miniature control panels, embedded displays, and custom electronics projects.
The display uses a flexible FPC connection and should be handled carefully during installation. The host PCB must be designed according to the correct pinout, interface mode, voltage requirements, and initialization sequence specified by the supplier. For touch operation, the CF662-W touch controller must also be correctly interfaced with the host system. Because AMOLED displays can be affected by long-term static content, dynamic UI elements or appropriate screen-management techniques are recommended for always-on applications.
Included Component
1 × YB-AM011C125-01A V0 1.10-inch Full-Color AMOLED Touch Display
For your auto specifications section, I would change it to:
Label Value Unit
Screen Size 1.10 inches
Resolution 126 × 294 pixels
Color Depth 24 bit
Display Technology AMOLED / LTPS
Active Area 10.962 × 25.578 mm
Module Size 12.96 × 30.624 × 0.707 mm
Interface Type SPI / QSPI / MIPI 1-Lane
Display Driver IC ICNA3306
Touch Support Yes
Touch Controller CF662-W
Refresh Rate 60 Hz
AOD Refresh Rate 30 Hz
Form Factor Rectangular
Application Wearable electronics
