830 Tie Point Solderless Breadboard - Full Size Prototyping Circuit Board with Dual Power Rails, for Arduino and Electronic DIY Projects

The 830 Tie Point Solderless Breadboard is the ultimate foundation for electronic prototyping, experimentation, and circuit design. Whether you are an experienced hardware engineer, an educator teaching STEM concepts, or a hobbyist building your first microcontroller project, this full-size breadboard provides a reliable platform to test ideas without the permanence of soldering. Designed to integrate seamlessly with standard electronic components, starter kits, and microcontroller development boards like Arduino and Raspberry Pi, this breadboard eliminates barriers to entry for circuit creation. Simply push component leads and jumper wires into the spring-clip grid to establish immediate electrical connections. If your design requires modification, pull the wires out and reconfigure them instantly. The robust construction and standardized grid layout make this breadboard a staple tool for every workbench, classroom, and engineering laboratory.

Constructed from high-impact flame-retardant ABS plastic, the breadboard offers excellent structural rigidity and electrical insulation. Internal spring clips are fabricated from nickel-plated phosphor bronze, providing high elasticity and corrosion resistance to ensure low contact resistance through thousands of insertion cycles. The grid adheres to the industry-standard 2.54mm (0.1-inch) pitch matrix, making it universally compatible with integrated circuits in DIP packages, pin headers, transistors, diodes, and resistors. The board is divided into two distinct terminal sections separated by a central isolation trench, which accommodates integrated circuits and microcontrollers while preventing short circuits between opposing pin rows. Dual power rails flank both sides of the terminal strips, featuring clear color-coded markings (red for positive, blue for negative) to prevent wiring errors and simplify power distribution across complex layouts.

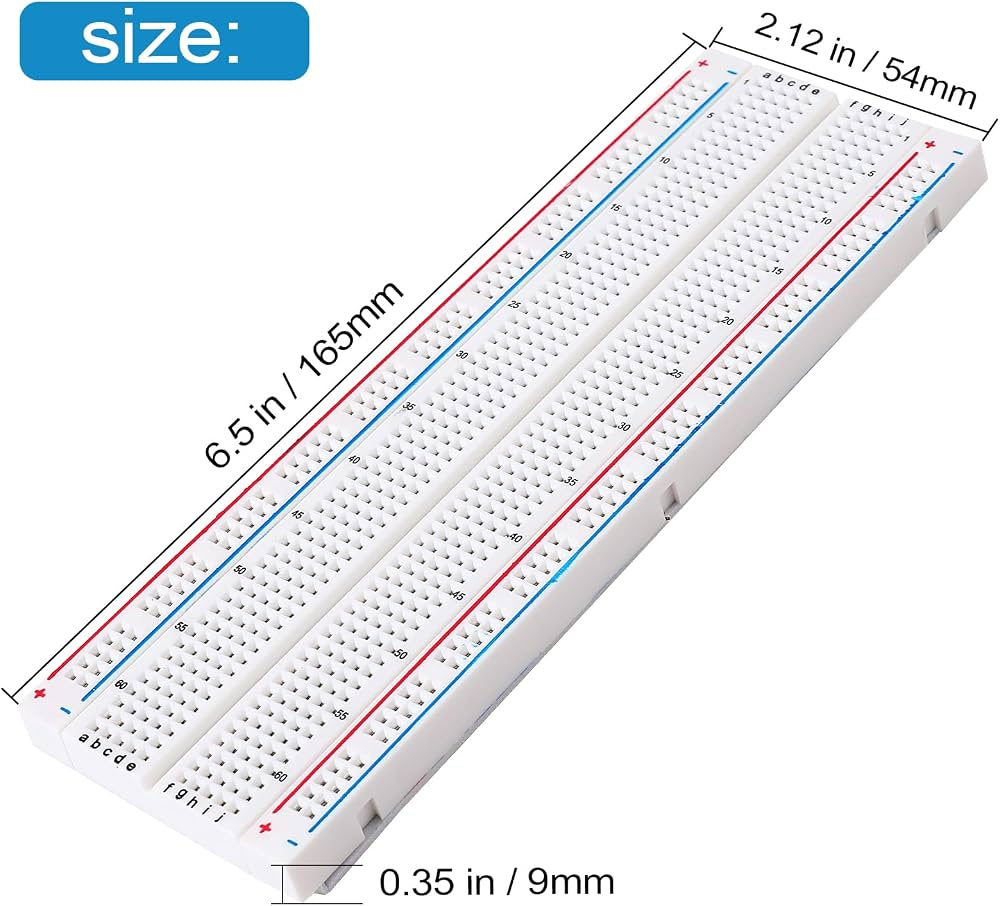

The breadboard provides a total capacity of 830 tie points, divided into 630 tie points for the central terminal strip area and 200 tie points allocated to the four independent power rails. It accepts solid and stranded hookup wire ranging from 21 to 26 AWG (0.4mm to 0.8mm diameter). The maximum recommended electrical ratings for standard breadboards of this class are 300 Volts and 3 to 5 Amperes, though performance depends on trace resistance and wire gauge. Dimensions measure approximately 165mm in length, 55mm in width, and 8.5mm in total thickness including the backing tape. The bottom surface features a peel-and-stick adhesive foam layer for permanent or semi-permanent mechanical mounting. Weight is approximately 75 grams. Operating temperature range and exact material composition comply with general electronics manufacturing standards.

This full-size breadboard is engineered for a vast spectrum of electronic applications. It is widely utilized in educational environments for teaching basic electrical theory, Ohm's law, and digital logic design. Hobbyists and makers use it to prototype microcontroller shields, sensor interfaces, LED lighting arrays, and analog amplifier circuits before transferring designs to perfboards or custom printed circuit boards. It serves as an essential accessory for robotics development, sensor testing, power supply evaluation, and preliminary debugging of complex embedded systems. From simple blinking LED circuits to sophisticated multi-chip microcontroller prototypes, the 830 tie point layout offers sufficient workspace for intermediate to advanced projects.

When integrating the 830 tie point breadboard into your workflow, ensure that component leads are straightened and trimmed to appropriate lengths to prevent bending inside the spring clips. Avoid inserting wires thicker than 20 AWG, as oversized leads can permanently deform the phosphor bronze internal contacts and cause intermittent connections. When mounting the board using the adhesive backing, ensure the target surface is clean, dry, and free of dust or grease for optimal adhesion. Align DIP integrated circuits across the center divider notch so that pin rows one and the opposite side pins maintain proper electrical isolation. Utilize colored jumper wires corresponding to power, ground, and signal lines to maintain a clean layout and simplify troubleshooting during the testing phase.

1x 830 Tie Point Solderless Breadboard with Adhesive Backing
