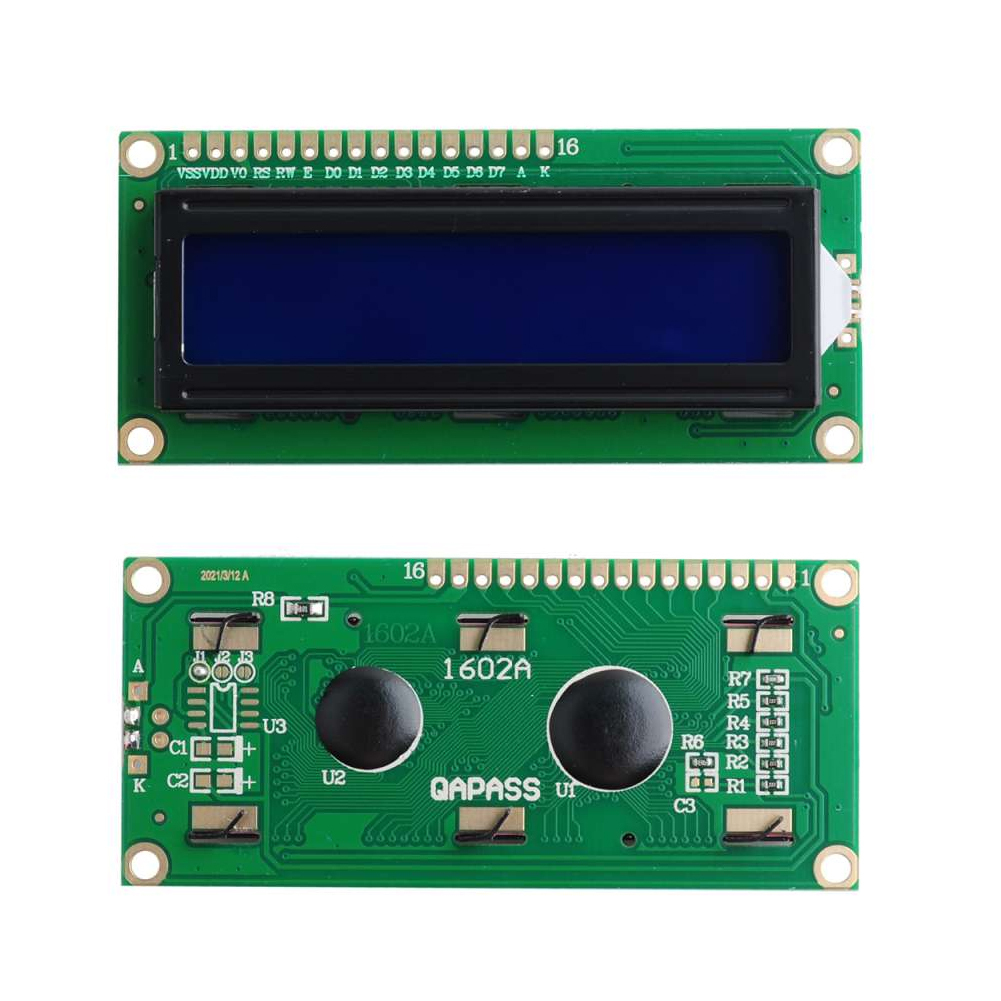

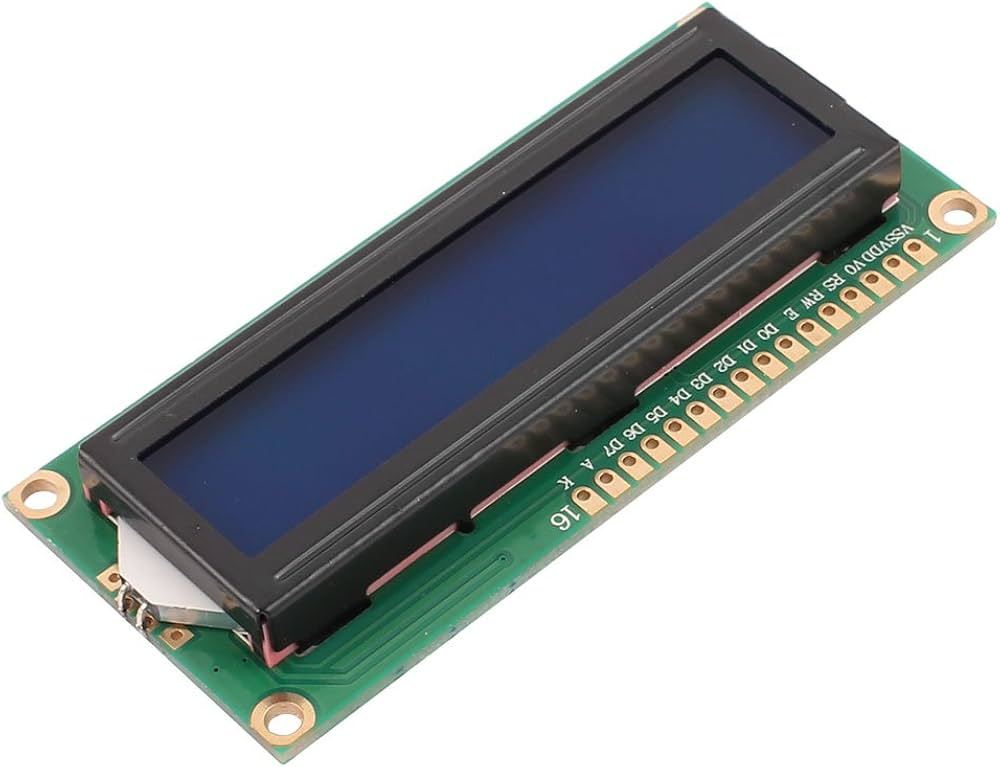

The LCD 1602A character display module is the quintessential output screen for electronics hobbyists, engineers, and makers. Trusted across generations of prototyping, this module has served as the default hardware for displaying initial "Hello, World!" scripts, live sensor readings, system menus, and real-time clock outputs. Featuring two distinct rows of sixteen characters each, it offers a reliable, straightforward visual interface for microcontrollers without the overhead of heavy graphical displays. Its robust construction and widespread documentation make it an indispensable staple in any DIY toolkit.
The LCD 1602A character display module is the quintessential output screen for electronics hobbyists, engineers, and makers. Trusted across generations of prototyping, this module has served as the default hardware for displaying initial "Hello, World!" scripts, live sensor readings, system menus, and real-time clock outputs. Featuring two distinct rows of sixteen characters each, it offers a reliable, straightforward visual interface for microcontrollers without the overhead of heavy graphical displays. Its robust construction and widespread documentation make it an indispensable staple in any DIY toolkit.

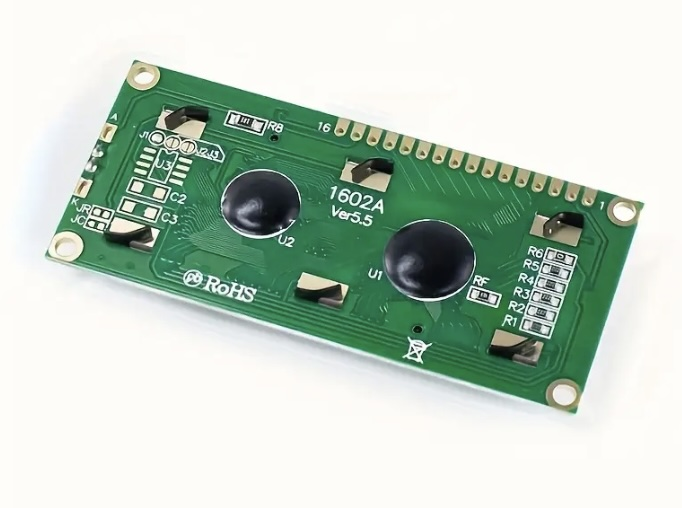

At the core of the 1602A is the industry-standard HD44780 compatible driver chipset, which manages character generation and display memory. The module utilizes a parallel interface requiring up to 10 lines for full control, though developers commonly implement a 4-bit operation mode to minimize the required microcontroller pins. Alternatively, the pin footprint can be reduced to just two wires by soldering an optional I2C backpack adapter. The display includes an integrated LED backlight circuit, typically requiring a current-limiting resistor, and an external contrast adjustment pin tied to a potentiometer to ensure optimal legibility under varying ambient light conditions.
Operating Voltage: 5V DC logic level. Display Format: 16 characters by 2 lines. Controller Chipset: HD44780 compatible. Interface Mode: 4-bit or 8-bit parallel, adaptable to I2C. Backlight Type: LED with variable color options depending on module revision. Character Matrix: 5x8 dots with cursor. Operating Temperature Range: Standard commercial grade. Mounting: Integrated corner mounting holes for secure chassis installation. Pin Pitch: Standard 2.54mm spacing for breadboard and jumper wire compatibility.
Ideal for a wide range of embedded systems and DIY creations, the 1602A module excels in weather stations displaying temperature and humidity, digital clock timers, 3D printer status monitors, robotic control panels, industrial instrumentation readouts, and interactive menu-driven microcontroller projects utilizing Arduino, ESP32, and Raspberry Pi platforms.
Ensure correct voltage supply to prevent damage to the logic and backlight circuits. When operating without an I2C module, double-check parallel wiring connections against standard schematics. Adjust the onboard or external contrast potentiometer if characters appear faint or entirely invisible upon initial power-up. Incorporate appropriate current-limiting resistors for the backlight LED if not already populated on the module circuit board.
1x LCD 1602A Character Display Module
