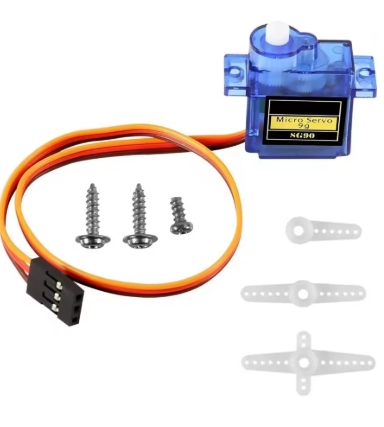

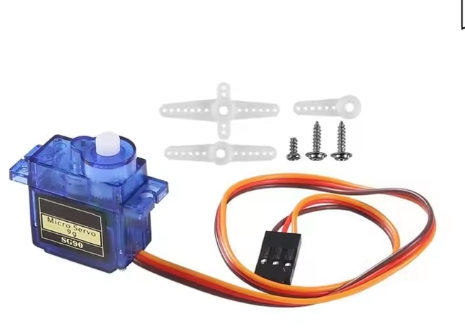

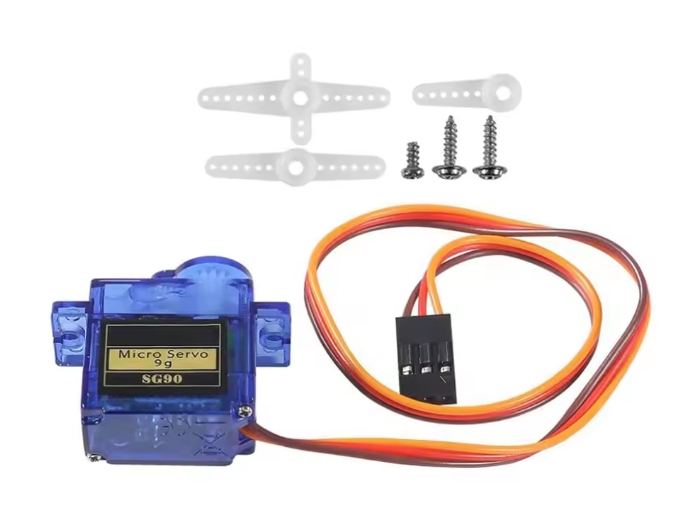

Name: SG90 9g Micro Servo Motor, 180° Position Control PWM RC Servo, 4.8V–6V Mini Servomotor for Arduino ESP32 RC Models, Robot Arm, Steering, Pan/Tilt
Brand: DIY KIT
SKU: SG90
Price: 13.67 AED
Availability: InStock

// Goes with it

Complete the build

The parts this one is wired with in our kits — have them on the bench before you start.

DIY-212

Jumper Wire Assorted Pack 120 Pieces - Male-to-Male, Male-to-Female, Female-to-Female 10cm Ribbon Cables for Breadboard & Arduino Prototyping

68 in stock

DIY-213

RESISTOR ASSORTED 220-1K-10K

Active Buzzer Module 5V DC, Plug-and- Alarm Output,Electronic Buzzer for DIY Projects, Sensors, Robotics & Alerts

51 in stock

// Where this part goes

Used in these kits and projects

All projects →

Kit Arduino UNO Sensor & Output Starter Kit - LEDs, Buzzer, Servo, Ultrasonic & LCD 10 parts · 7 projects →

Lesson 5: Servo & Knob Beginner
Lesson 7: Parking Assistant & Sensor Dashboard Beginner

// 01

Description

The SG90 9g Micro Servo Motor is one of the most popular mini servos for Arduino and RC projects thanks to its compact size, low cost, and reliable 180° positional control. It uses a standard PWM servo signal to move to a specific angle and hold position, making it ideal for robot arms, steering mechanisms, pan/tilt camera mounts, small animatronics, and DIY automation.

With its lightweight 9g form factor, the SG90 fits easily into tight spaces while still delivering smooth movement for small linkages and mechanisms. It’s beginner-friendly, widely supported by Arduino libraries, and perfect for STEM learning kits and rapid prototypes.

How It Works (PWM Position Control)

SG90 is a positional servo that moves to the angle commanded by the PWM pulse width:

Typical frequency: ~50 Hz
Pulse width range: ~1.0 ms to ~2.0 ms
Around 1.5 ms is typically the center position

You can control it using Arduino Servo library, ESP32 PWM/servo libraries, or RC receivers.

Wiring (Standard 3-Wire Servo)

Common color coding:

Brown = GND
Red = VCC (4.8V–6V)
Orange = Signal (PWM)

Key Features & Benefits

180° Angle Control: Great for precise positioning tasks
Compact 9g Size: Ideal for small robots and lightweight mechanisms
Arduino/ESP32 Compatible: Works with common servo libraries and PWM pins
Easy Installation: Includes servo horns/arms and mounting screws
Perfect for DIY & Education: Popular for STEM, prototypes, and RC builds

Typical Specifications (may vary slightly by batch)

Item	Typical Value
Model	SG90 Micro Servo
Weight	~9g
Rotation	Up to ~180° (positional control)
Voltage	4.8V–6.0V DC
Control	PWM (typical ~50Hz)
Connector	3-pin RC servo plug

Note: Actual angle range and torque can vary depending on the servo batch and load.

Common Applications

Arduino robot arms and grippers
RC steering systems and linkages
Pan/tilt camera mounts
Small automation mechanisms
STEM kits and educational robotics

// 02

Specifications

Servo SG90 9g

Rotation 180° positional

Torque ~1.6kg·cm @ 4.8V

Supply Voltage 4.8-6 V

Gears Nylon
