Overview

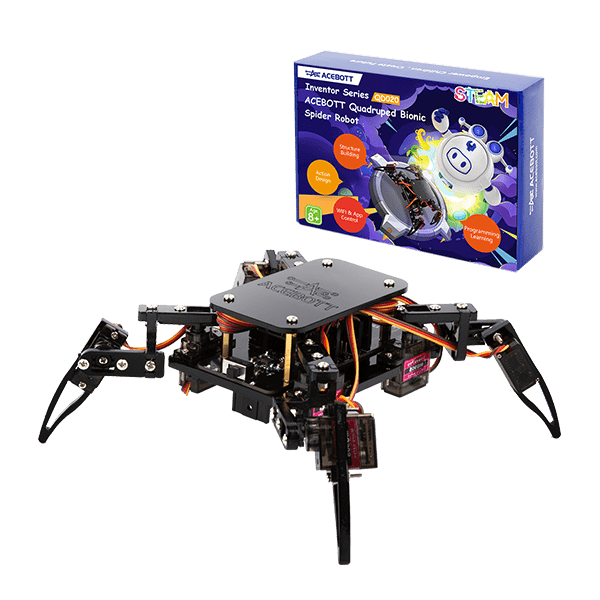

This quadruped bionic spider robot kit is a DIY robotics learning platform built around an ESP8266 controller board and a multi-servo leg mechanism. It is designed to help students and hobbyists understand how real walking robots coordinate multiple joints, balance their center of gravity, and execute repeatable gaits. The kit focuses on practical learning: assemble the acrylic chassis, connect the servo wiring, power the system from a single 18650 cell (not included), then control the robot through WiFi/app or by uploading your own programs. With built-in motion presets and lesson-based learning, it supports a smooth path from “first robot” to custom behaviors.
Technical Details
At the core is an ESP8266-based control board that provides wireless connectivity and sufficient processing for gait sequencing, posture transitions, and action playback. The robot’s legs are driven by multiple hobby servos (servo count and exact model may vary by kit revision), each receiving a PWM control signal to set joint angles. Walking is achieved by coordinating leg lift, swing, and placement phases while maintaining stability—an excellent way to learn about timing, interpolation, and motion smoothing.
Control is available in two main ways:
1) App/WiFi control for immediate interaction and demonstrations without needing a PC connected during operation.
2) Programming control using ACECode (visual learning) or an Arduino-compatible workflow for text-based logic, enabling students to modify gait parameters, create new action sequences, and design personalized behaviors.

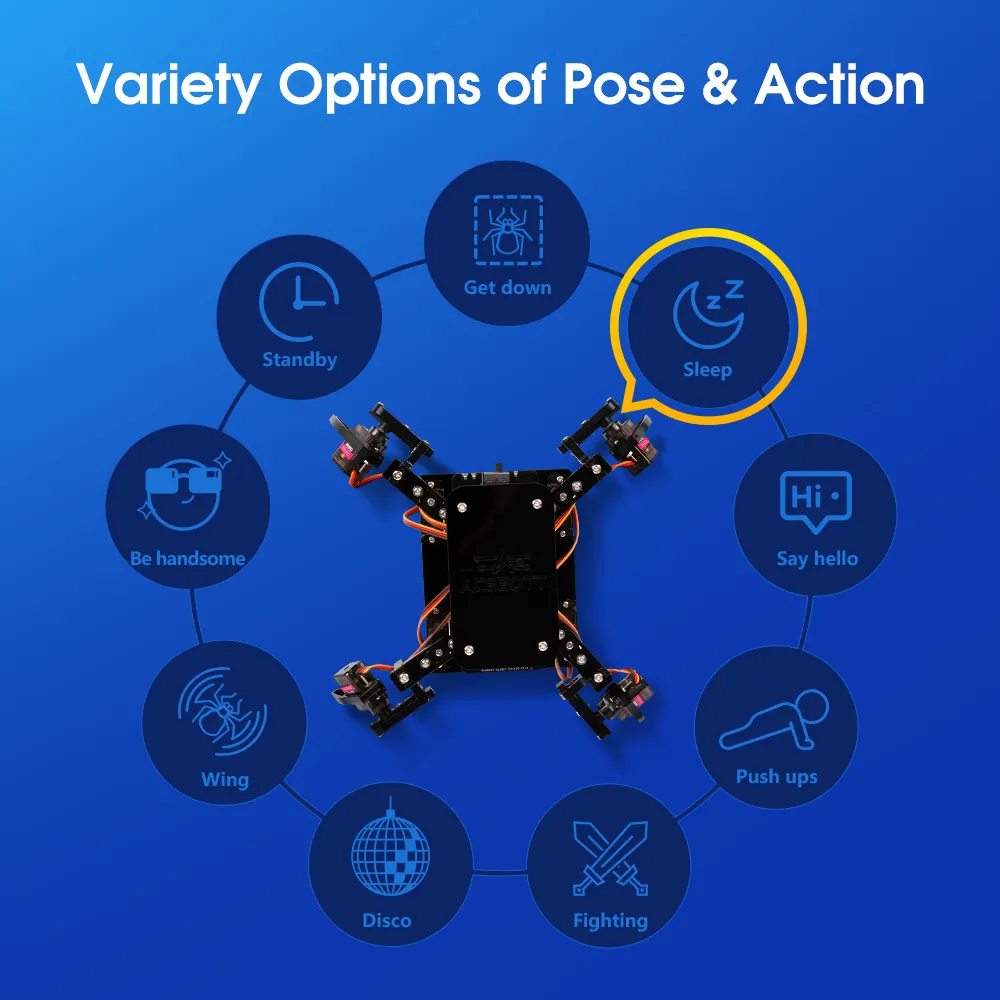

The kit includes a library of preset postures and actions so learners can observe how multi-joint motion is composed. Preset actions include Standby, Lying, Sleep, Greet, Push-up, Fighting, Dancing, Swing, and Handsome. These modes are useful for teaching concepts such as keyframes, servo angle limits, and safe acceleration/deceleration to reduce jitter and mechanical stress.
Specifications
- Controller: ESP8266-based controller board (exact module/flash size varies by revision; check kit documentation)
- Wireless: WiFi (2.4 GHz typical for ESP8266; region/channel support depends on firmware)
- Programming options: ACECode and Arduino-compatible programming
- Motion presets: 6 movement postures and 9 action modes (as listed)
- Power: 1 x 18650 Li-ion cell (not included); Type-C direct charging supported by the kit’s charging circuit (charge current and protection features vary by revision—verify on the board silkscreen/datasheet)
- Mechanical structure: acrylic chassis plates with uniform screw hardware; multi-leg linkage design for quadruped walking
- Audience: STEM education, K-12 classroom projects, makers, and robotics beginners (age guidance depends on supervision and local requirements)
Applications
- Classroom STEM labs: demonstrate robotics kinematics, gait planning, and wireless control
- Coding education: transition from visual blocks to Arduino-style code while keeping results tangible and engaging
- Robotics clubs and competitions: customize behaviors, add new sequences, and experiment with movement timing
- Home learning and parent-child projects: guided assembly plus immediate app control for fast success
- Prototyping platform: use the quadruped chassis as a base for future sensors or behavior logic (add-ons depend on available expansion headers and firmware support)
Integration Notes
- Battery: Use a quality 18650 cell from a reputable source. Observe correct polarity and do not use damaged cells. Charging behavior and protection depend on the included charging circuit; confirm whether your revision includes overcharge/overdischarge protection before unattended use.
- Servo calibration: For best results, center servos before final linkage tightening and verify angle limits in software to prevent binding. Mechanical friction or overtravel can cause jitter and increased current draw.
- WiFi/app pairing: WiFi setup steps can differ by firmware version. Keep the robot powered on a stable surface during first pairing to avoid sudden movement.
- Programming workflow: When moving from ACECode to Arduino-compatible code, keep motion steps small and use gradual transitions (interpolation) to reduce stress on joints and improve stability.
- Revision differences: Controller board layout, servo model, and included accessories may vary by production batch; follow the included manual for your specific kit.

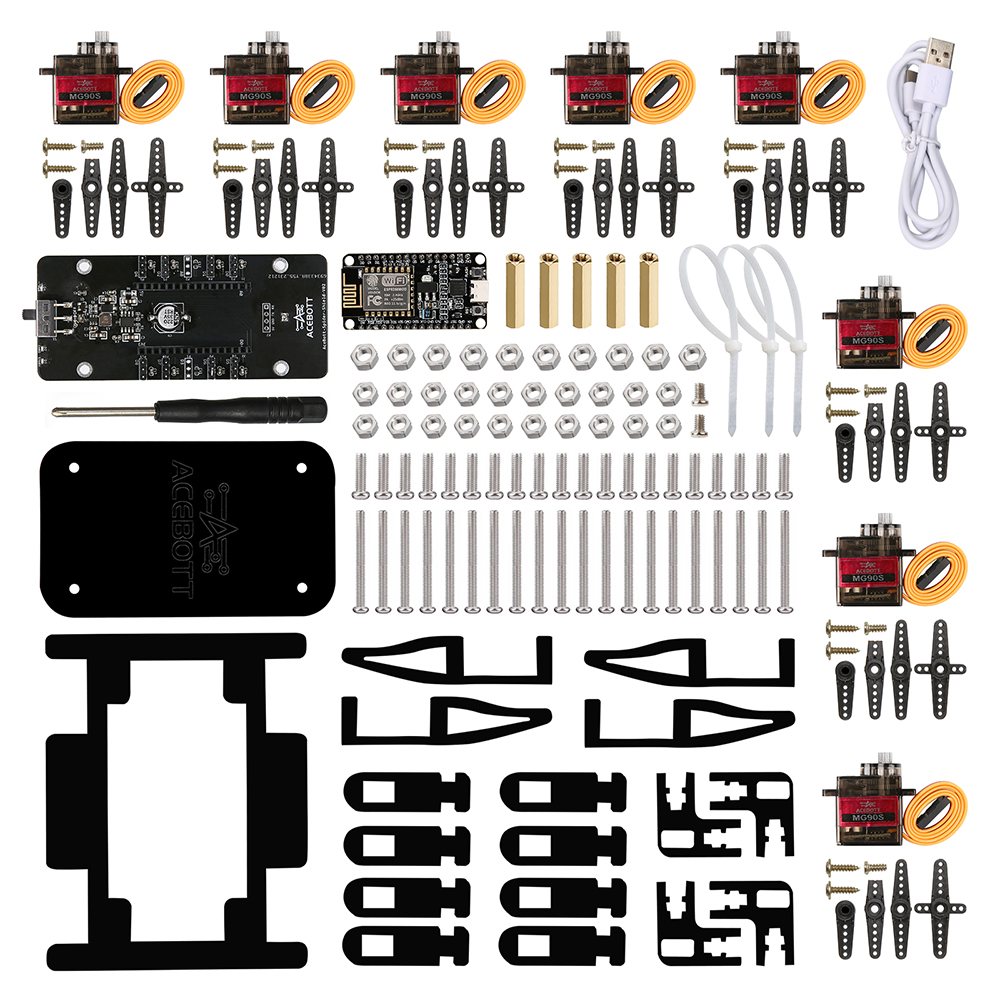

Included Components
Quadruped spider robot DIY kit, ESP8266 controller board, assembly hardware

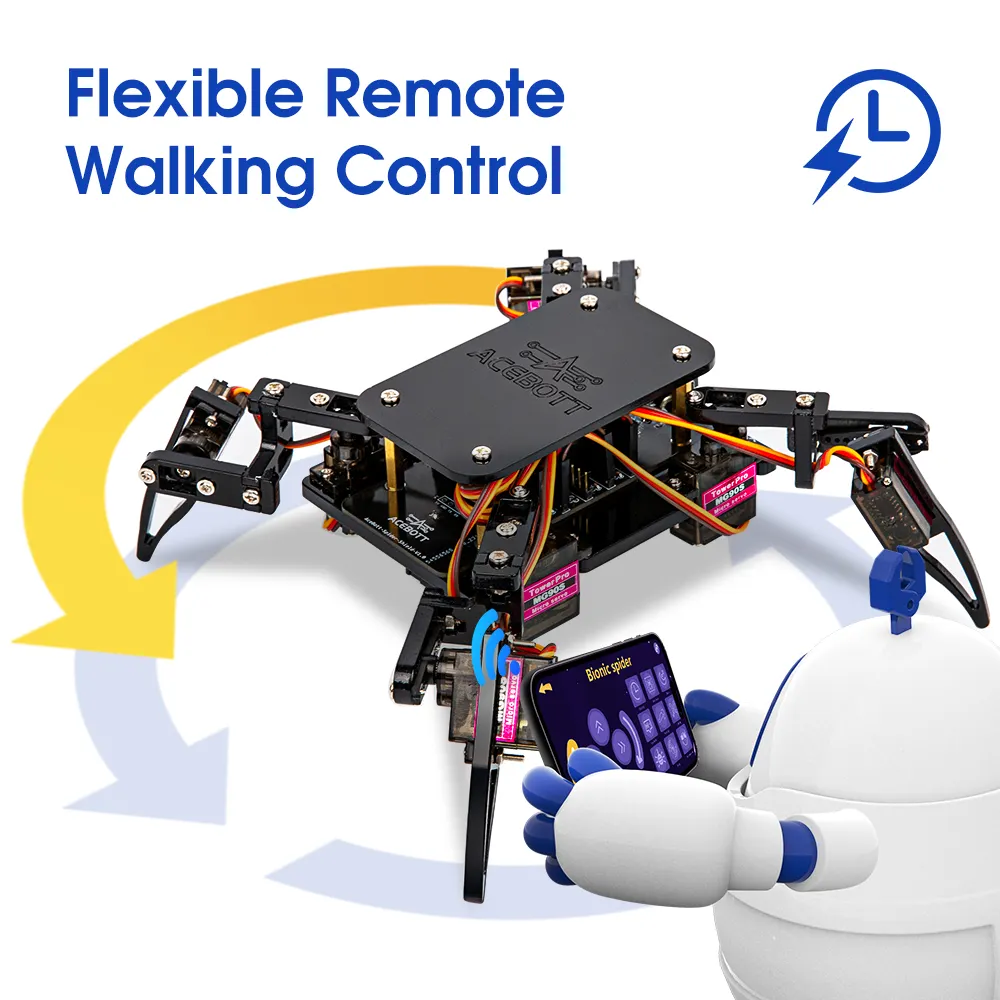

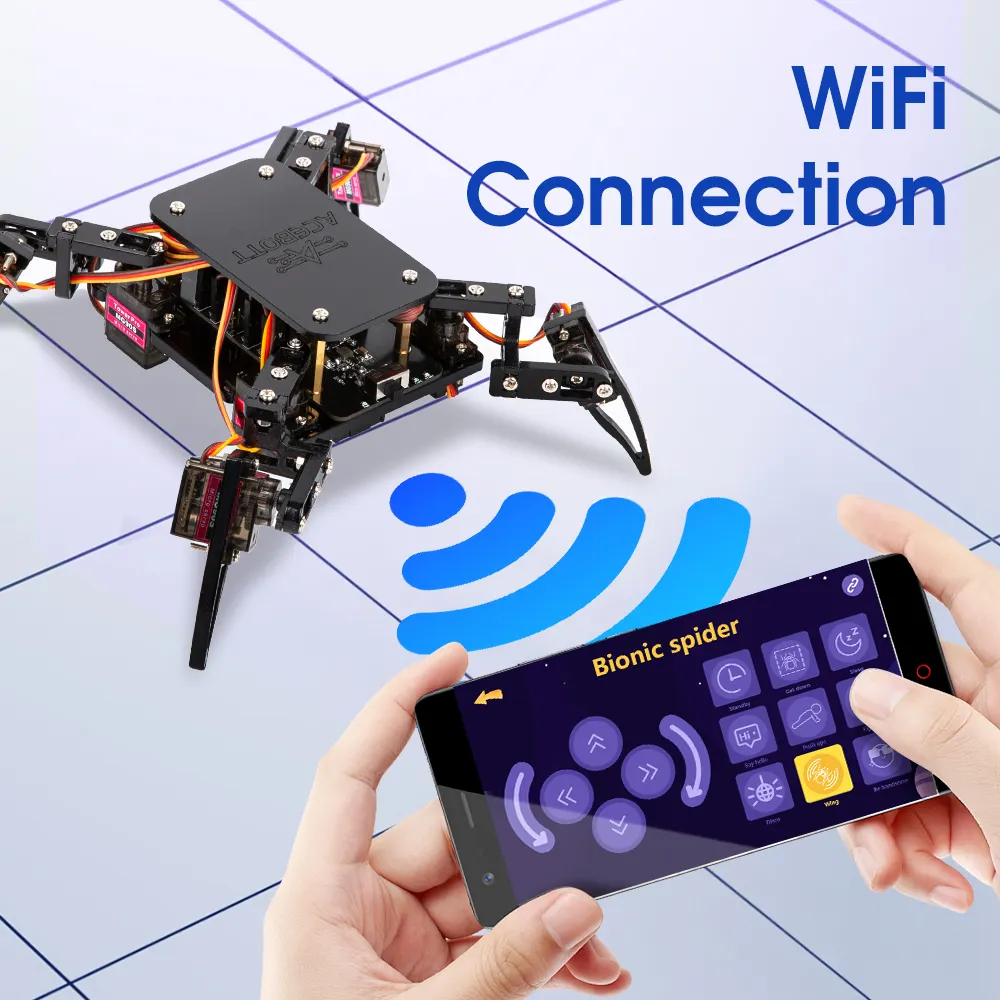

Web & APP Dual Control Modes
Enjoy flexible control with both WEB and app options, allowing easy operation from the comfort of your sofa or on the go.
Convenient Charging Experience
Featuring a unique charging design, the Type-C cable allows you to charge the battery while transferring data simultaneously.
Durable Metal Steering Gear
Equipped with the MG90 metal servo, this robot offers enhanced precision and durability for reliable performance.
3 Simple Steps to Get Started
Step 1: Build
Step 2: Code
Step 3: Remote Control
