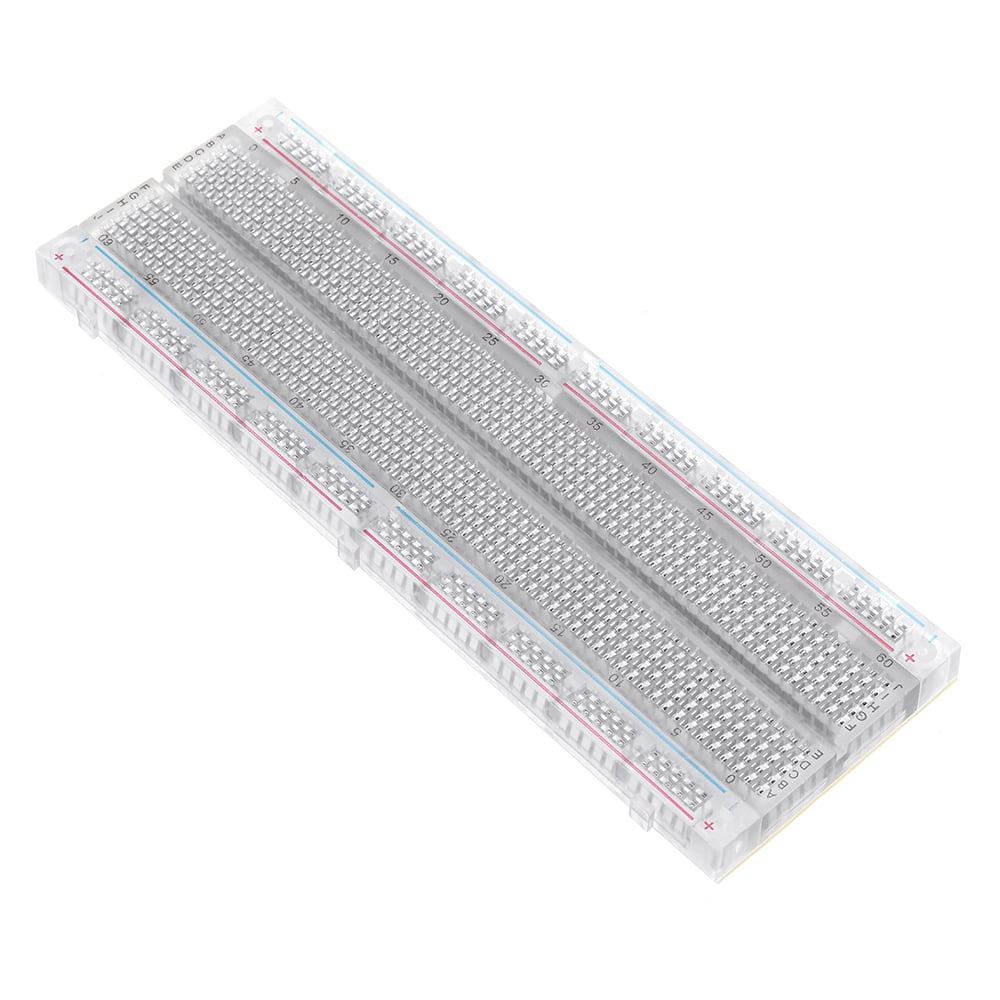

The Transparent 830 Points Solderless Breadboard is an essential prototyping tool designed for electronics hobbyists, engineers, students, and makers. Whether you are designing a simple LED circuit or complex microcontroller systems using Arduino, ESP32, or Raspberry Pi, this breadboard provides a reliable, solder-free environment to test and iterate your designs quickly. The transparent housing gives your workbench a modern, sleek appearance while allowing you to inspect the layout structure beneath the board.
The Transparent 830 Points Solderless Breadboard is an essential prototyping tool designed for electronics hobbyists, engineers, students, and makers. Whether you are designing a simple LED circuit or complex microcontroller systems using Arduino, ESP32, or Raspberry Pi, this breadboard provides a reliable, solder-free environment to test and iterate your designs quickly. The transparent housing gives your workbench a modern, sleek appearance while allowing you to inspect the layout structure beneath the board.
Constructed from high-impact transparent polycarbonate, this breadboard offers durability and thermal resistance. The internal spring clips are precision-formed from high-quality phosphor bronze and plated with nickel to prevent oxidation and ensure reliable electrical conductivity over thousands of insertion cycles. The board features standard interlocking tabs on the sides, enabling you to snap multiple breadboards together to create an expanded prototyping surface for larger, more complex circuits. Two independent power lines run vertically along the sides, clearly marked with red and blue lines to distinguish positive and negative rails, minimizing wiring mistakes during complex prototyping phases.

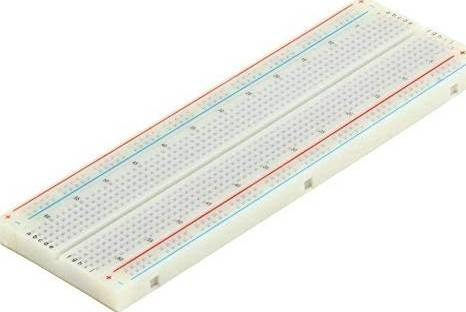

This MB-102 compatible breadboard provides a total of 830 tie points. This layout is split into two distinct zones: a central terminal strip containing 630 tie points divided into 126 separate 5-row terminals, and two independent power strips providing a combined 200 tie points. It accepts solid core wire ranging from 21 to 26 AWG (0.4mm to 0.8mm diameter), which inserts smoothly and holds firmly without damaging the internal spring contacts. The maximum recommended current rating per contact point is 3 Amps at 36 Volts, making it suitable for low-power logic circuits as well as moderate power distribution tasks.
This transparent solderless breadboard is ideal for educational electronics laboratories, breadboard-based prototyping, DIY electronics projects, proof-of-concept testing, and rapid circuit design. It serves as an indispensable platform for testing discrete components like resistors, capacitors, diodes, transistors, integrated circuits in DIP packages, and sensor modules before committing to a permanent soldered PCB layout.
For optimal performance, always use solid core jumper wires rather than stranded wire, as stranded wire can fray and permanently deform the internal spring clips. Ensure that component lead diameters do not exceed the maximum recommended thickness to maintain long-term contact integrity. Peel off the protective backing carefully if you intend to stick the breadboard to a permanent aluminum baseplate or wooden project enclosure.
1x Transparent 830 Points Solderless Breadboard
